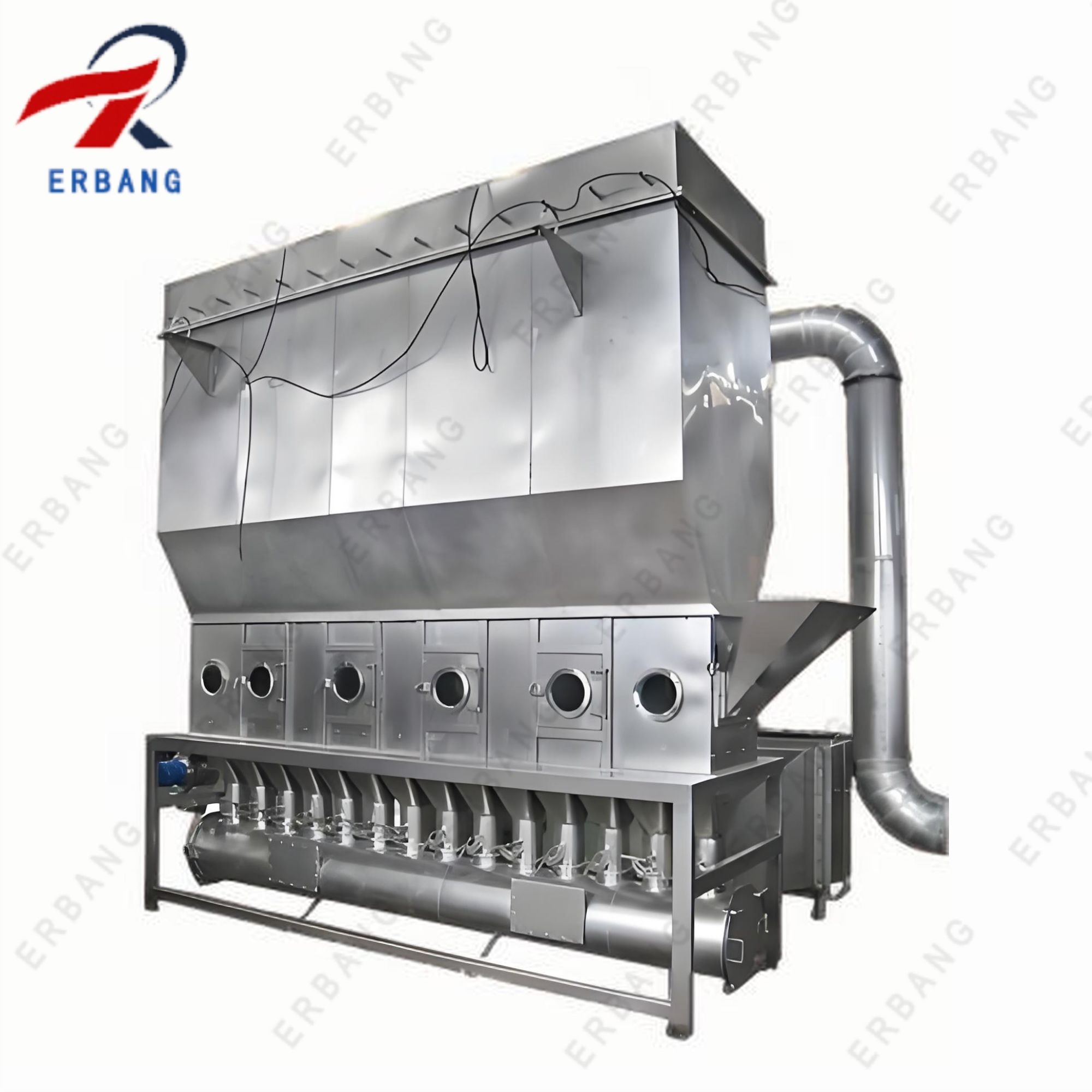

Amino Acid Granules Dryer

Main Features:

1.Automatic production can be realized. Amino Acid Granules Dryer is continuous drying equipment.

2.Amino Acid Particle Dryer have quick in drying speed ,Low in drying temperature ,

3.Amino Acid Particle Drier have highly polished inner and outer surfaces of the machine, no dead comer, easy to clear, no cross contamination. Confining to the requirement of GMP.

4.It have high collecting rate, high efficiency, fast drying, energy saving.

5.Amino Acid Granules Dryer mahe by all stainless steel.

Amino Acid Granules Dryer Introduce

Amino Acid Particle Dryer is also called as fluidized-bed. It consists of air filter , heater ,fluidized-bed main machine, feeder , cyclone separator , cloth bag duster ,high-pressure centrifuge fan and operation table. Because the properties of raw materials exist difference, when equip the dust removing equipment, it should consider the practical need. It can select cyclone separator and cloth bag duster at the same time or one of them. In general speaking, it needs to select cyclone
separator only for raw material that is large in specific gravity and cloth bag duster for powder and small granule raw materials that is light in specific gravity .Meanwhile there is air feeding device and belt conveyor for selection.
Separated granule solid raw mate  solid raw material on distributing plate. In this way the fluidized state is formed and the heat exchange between air and solid is carried out. The dried raw material is discharged from outlet and wasted gas is exhausted from the top of fluidized-bed where catches solid powder through cyclone separator , cloth bag duster, Steam, electricity or hot air furnace can be used (it can be supplied as request).

Amino Acid Particle Drier Application

Amino Acid Fluidizing Drier is also called fluidization bed. Through continuously improvement over 30 years, fluidizing dryer has widely applied in the fields of pharmaceutics, chemicals, foodstuff, processing grain etc. For example, the dehumidification and drying of powder and granular materials such as bulk pharmaceuticals, granular patent medicines, preparations, feed, plastic resin etc. The granular diameter shall be within the range from 0.1 to 6mm and the best from 0.5 to 3mm.

Main Parameter:

The main technical parameter datum of fluidizing dryer is for reference. We also produce and design product as per customers' requirement.
