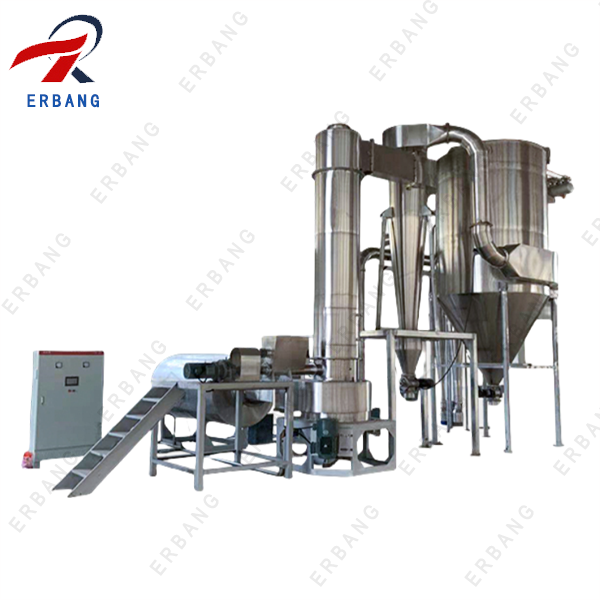

Chemical Special Flash Drying Machine

1. Main Features:

☆ Bluestone Flash Dryer is ideal dryer for pasty filter cake

☆ Ferric Oxide Flash Dryer is special chemical dryer equipment

☆ Barium Carbonate Flash Dryer is big capacity drying machine

☆ Bluestone Drying Machine is making up pasty filter cake directly into dry powder

2. Working Principle:

Bluestone Flash Dryer ,Barium Carbonate Flash Dryer The hot air enters into the bottom of the dryer in tangent direction. Under the driving of the stirrer, a powerful rotating wind area is formed. The paste state materials enter into the dryer through the screw charger. Under the powerful function effect of stirring at high-speed rotation , the materials are distributed under the function of strike ,friction and shearing force. The block state materials will soon be smashed and contact the hot air fully and the materials are heated and dried. The dried materials after the de-watering will go up with the hot-air flow. The grading rings will stop and keep the big particles. Small particles will be discharged out of the dryer from the ring center and will be collected in the cyclone and dust collector. The not-fully-dried or big piece materials will be sent to the wall of the equipment by centrifugal force and be smashed again after they fall down to the bottom.

3. Description:

This Ferric Oxide Flash Dryer combines the whirl technology with the fluidity. Ejection and smashing step technologies. The equipment is compact and small in size, high in production efficiency and continuous in the production. It has realized that a small equipment can perform the large production. The drying capacity for this machine is big but its energy consumption is low. Its hear efficiency can go up to more than 70%. The material star time is very short. The quality of the final products is very good, The machine can be used for drying the heat sensitive materials. For the negative pressure or the micro-negative pressure operation, the machine is good for its tightness and high in the efficiency so as to eliminate the environmental Pollution.

Application

SXG Series Flash Dryer is widely used in light industry, chemical industry, foodstuff, agricultural products, powder, granule, and small block material in pharmaceutical industry. Material examples are as following: HPAM, feed, hypha protein, sodium sulfate, plastic archon, catalyst, stripping and slicing potato, baking soda, detergent, quartz sand, soybean billet, ban pulp, metal powder, boric acid, sodium borate, activated clay, compound fertilizer, eat.

Main Features:

1.When oil is used to heat, use automatic constant temperature control. Its temperature of operation can be adjusted form 80-160℃ .

2. Compared to other dryer, its heat efficiency will be 2 times higher.

3. Machine materials : AISISUS304 , AISISUS316L, and other material .

4. The feeding system for this machine can be screw feeder .

5. For the electrical component  , we mainly use international brand such as ABB ,Siemens or Schneider.

6. Smooth running, reliable performance, easy operation.

7. Highly polished inner and outer surfaces of the machine, no dead comer, easy to clear, no cross contamination.

8. Control system has more choices, such as push button , HMI+PLC and so on.
