Product details

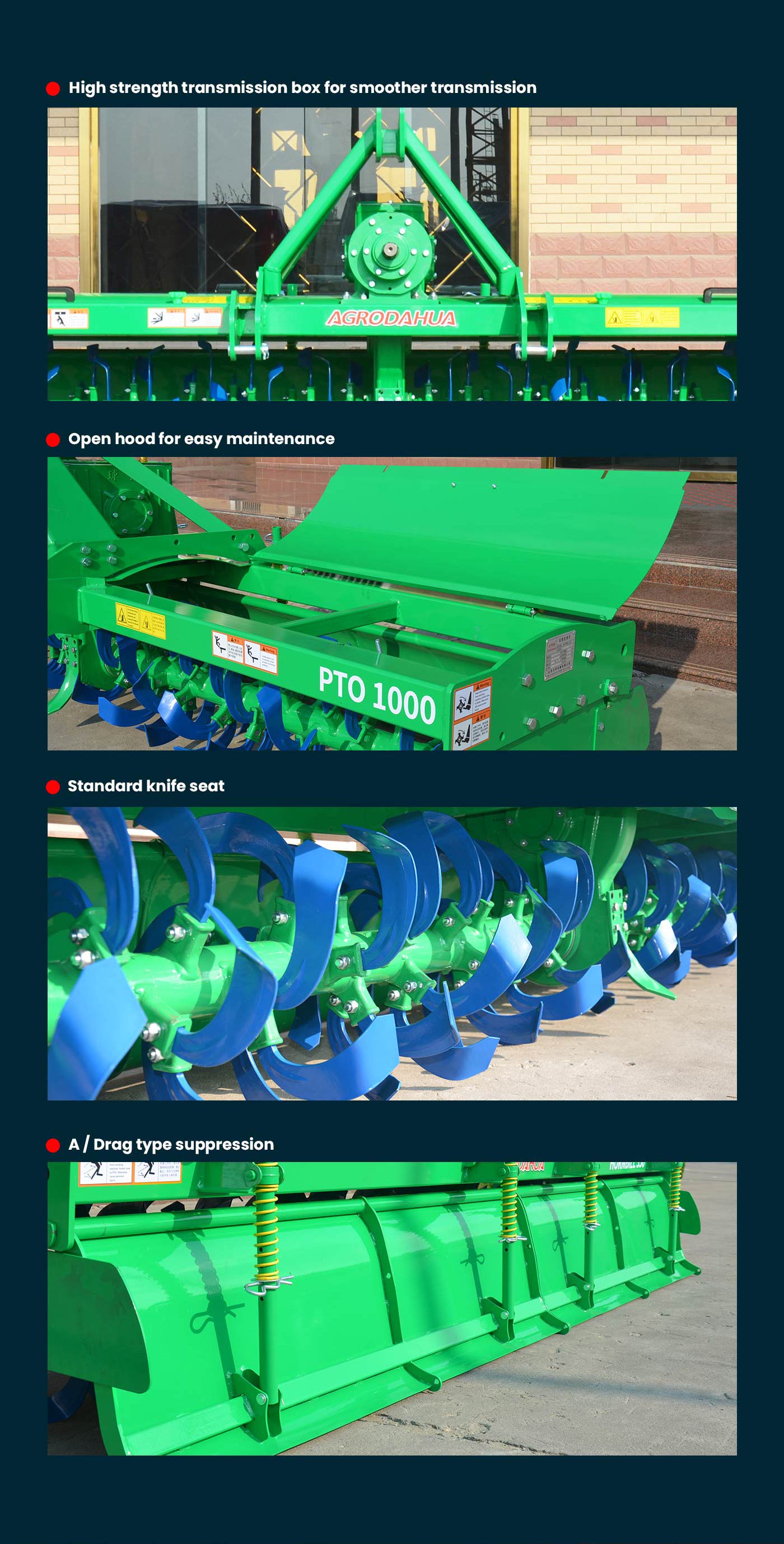

Professional large middle gearbox series gear drive rotary tiller

Horsepower of the Matching Tractor

The rotary tiller is suitable for tractors with a horsepower ranging from 130 to 160. Such a matching can ensure that there is an adequate power source during operation, meet the plowing and rotary tilling requirements of different scales and complexities, and effectively drive the rotary tiller to carry out various operation tasks.

Configuration of Rotary Tilling Cutters

The whole machine is equipped with 100 standard rotary tilling cutters. The relatively large number of cutters can ensure a relatively fine and comprehensive treatment of the land during the rotary tilling process, improve the efficiency and quality of rotary tilling, make the land in a better loosened state, which is beneficial for subsequent agricultural operations such as sowing.

Supporting 130-160 horsepower tractor for farmland cultivation

Tilling Depth

The tilling depth can reach 12 - 18 cm. This range of tilling depth can basically meet the requirements for soil tilling depth before the planting of most common crops, ensure that the deep layers of the soil are effectively turned over, bring the bottom soil to the surface, and improve the soil's air permeability, water permeability and nutrient distribution.

Rotary tiller suitable for large farms, equipped with 100 knives

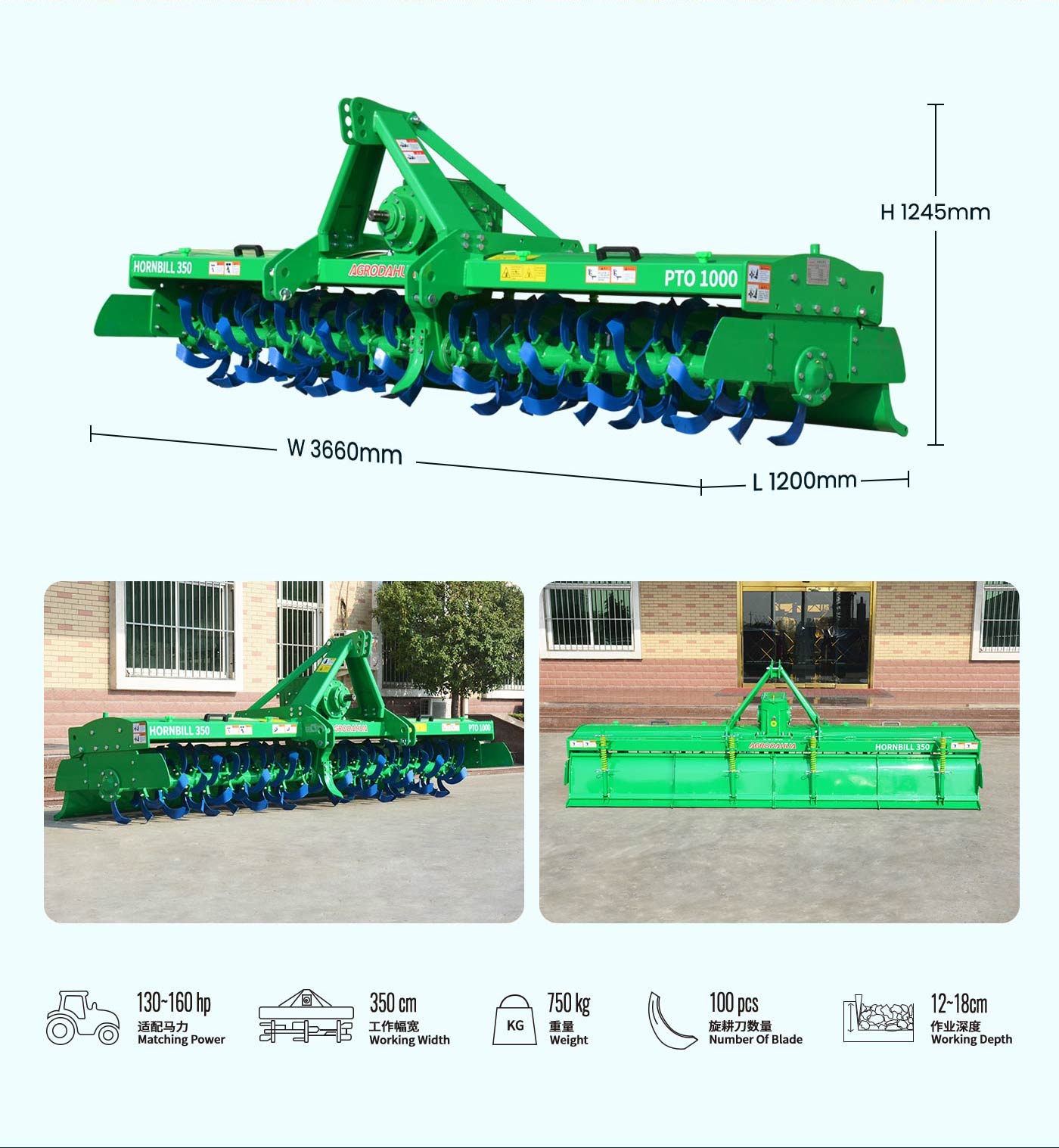

Product Model		Unit	HORNBILL 200	HORNBILL 230	HORNBILL 250	HORNBILL 280	HORNBILL 300	HORNBILL 325	HORNBILL 350	HORNBILL 400	HORNBILL 420
Total Width (W)		mm	2310	2550	2750	2990	3190	3400	3700	4200	4400
Total Length (L)		mm	1275	1275	1275	1275	1275	1275	1275	1275	1275
Total Height (H)		mm	1180	1180	1180	1240	1240	1240	1240	1240	1240
Weight	Drag type suppression	kg	710	760	810	870	900	950	990	1100	1150
Weight	Heavy duty nail toothed compression	kg	910	990	1060	1150	1200	1275	1340	1500	1570
Working Width		cm	200	230	250	280	300	325	350	400	420
Matching Power		hp	80~100	90~110	90~120	110~140	120~150	125~160	130~160	140~180	150~200
Rotary Blade Model		/	ⅠT245	ⅠT245	ⅠT245	ⅠT245	ⅠT245	ⅠT245	ⅠT245	ⅠT245	ⅠT245
Number of Blades		pcs	60	64	72	80	84	92	100	112	120
Working Depth		cm	8~18	8~18	8~18	8~18	8~18	8~18	8~18	8~18	8~18
Operation efficiency		h㎡/h	0.75~1.0	0.8~1.1	0.95~1.2	1.4~1.8	1.6~2.0	1.8~2.2	2.0~2.4	2.2~2.6	2.4~2.8
Gear speed ratio			13/30 13/27 14/26 15/25 15/23 15/20

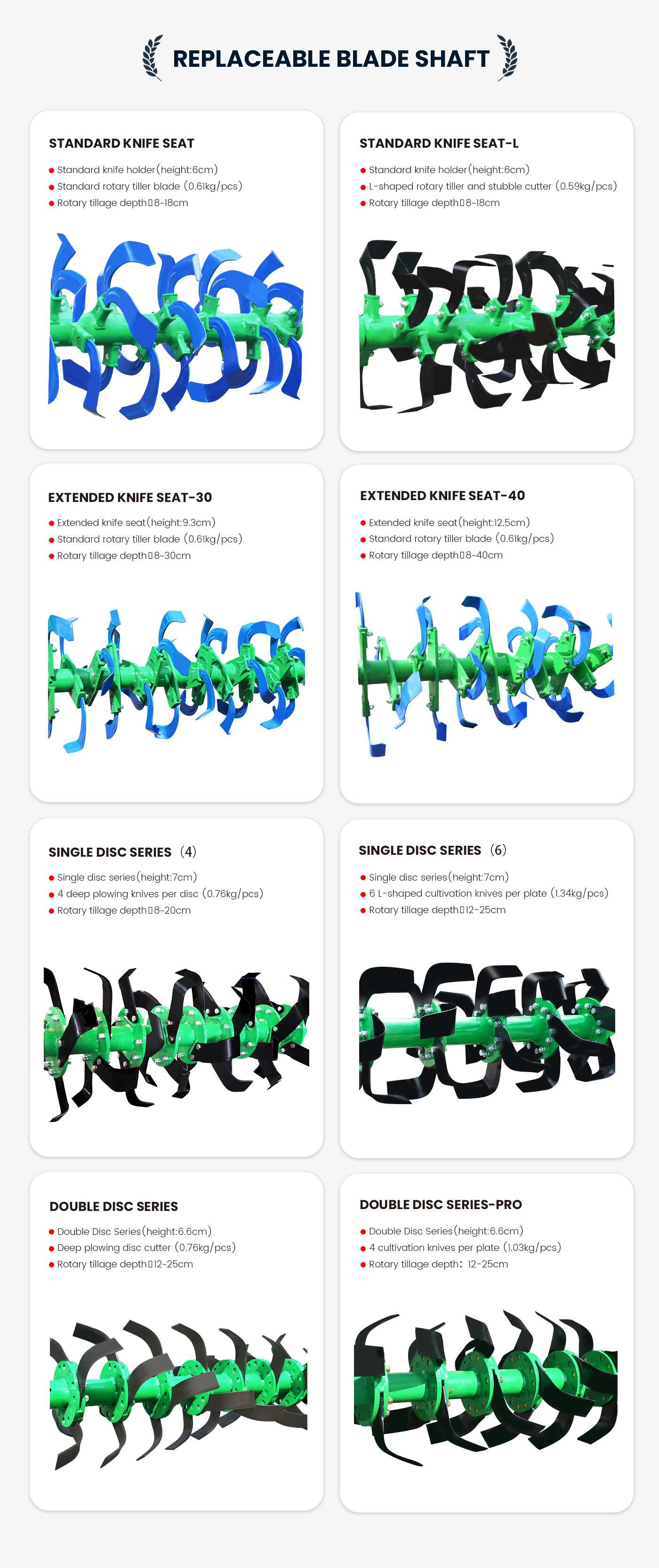

Optional Cutter Shaft

The cutter shaft can be selected according to the working conditions of the field. For example, different options like disc deep tillage cutters, 30 deep tillage cutters and 40 deep tillage cutters are provided.

Disc Deep Tillage Cutters: They are applicable to plots where the soil needs to be deeply broken and the soil texture may be relatively hard. With its unique disc shape and structural design, it performs well in entering the soil, cutting the soil and crushing the soil. It can break through the soil layer more deeply and make the compacted soil loose.

30cm Deep Tillage Cutters and 40cm Deep Tillage Cutters: Tools with ordinary plowing depths often can only loosen the surface soil. However, 30-cm and 40-cm plowing depth knives can penetrate deeper into the soil for plowing, promoting full mixing of the upper and lower layers of the soil. In this way, various components such as organic matter and minerals in the soil can be more evenly distributed in different soil layers. This enables the originally barren deep soil to be nourished by the surface soil rich in organic matter, improving the uniformity of soil fertility in the entire soil profile. In the long run, it helps maintain the long-term fertility of the land and reduces the impact of local differences in soil fertility on crop growth.

Optional Soil Covering and Compression Devices

Drag Plate Type Soil Covering Device: This device has a relatively simple structure. By dragging the drag plate on the land after rotary tilling, it can cover the soil turned up by the rotary tilling cutters on the ground surface relatively evenly to achieve the effect of soil covering. It is especially suitable for large-area plowing operation scenes where the requirements for soil covering are not particularly fine and the terrain is relatively flat.
Lightweight Cage Type Compression Roller: It is characterized by being relatively lightweight. When compacting the land, it can ensure a certain degree of compaction intensity while minimizing excessive compaction of the soil structure. It is suitable for operation sites where the soil texture is relatively loose, excessive compaction is not required, and more attention is paid to maintaining good air permeability of the soil, such as those used after rotary tilling of grasslands where shallow-rooted crops are planted or where high requirements for soil air permeability are imposed.
Heavy Duty Nail Toothed Compression Roller: It has a relatively strong compaction ability. Its nail-toothed structure can better embed into the soil and compact the soil at a deep level. It is suitable for situations where it is necessary to make the seeds in close contact with the soil after sowing to prevent the seeds from shifting due to overly loose soil. It is often used in the plowing operations of large farms where high requirements for soil compaction after sowing are imposed.

The rear cover soil compaction of the rotary tiller is optional

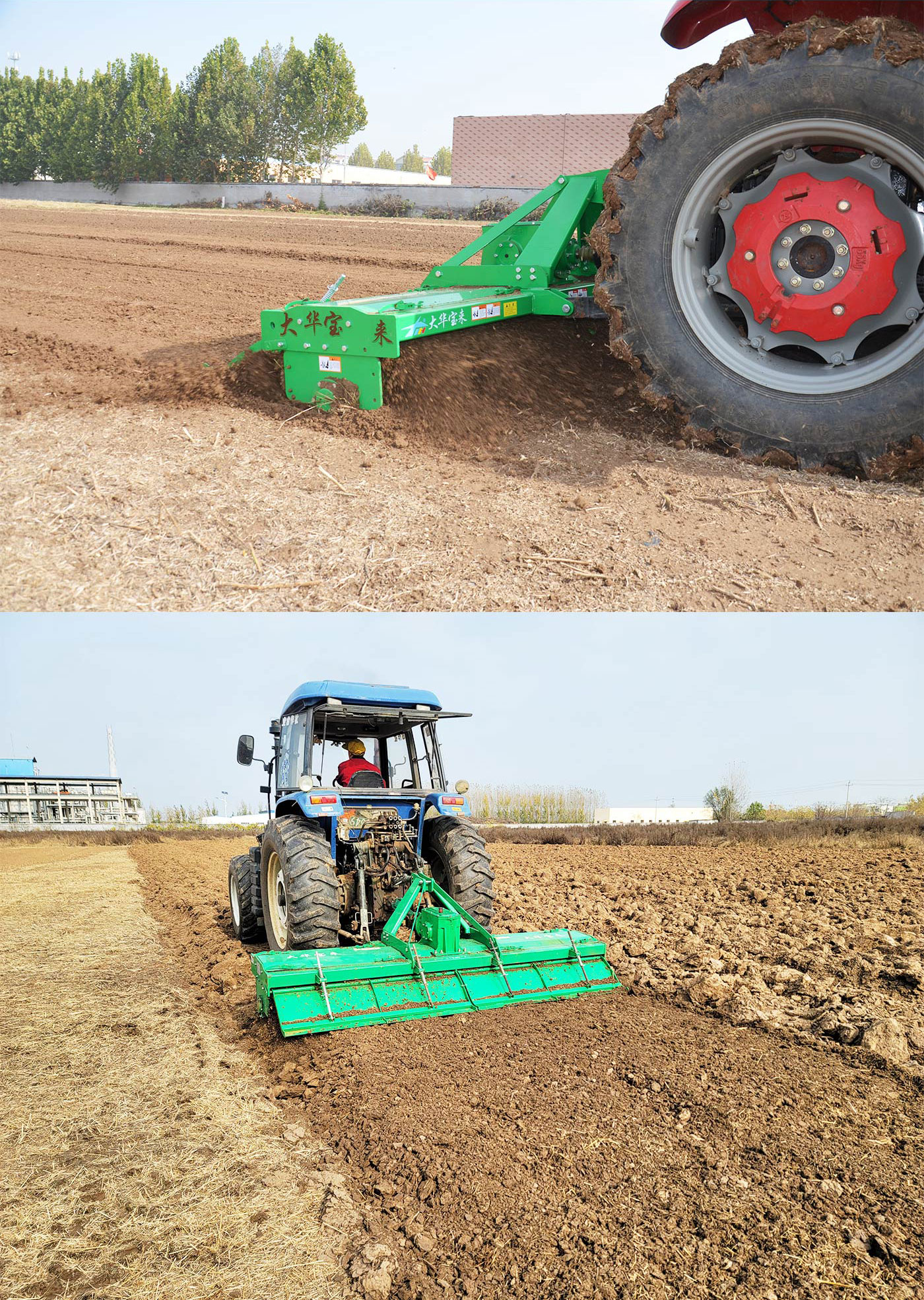

The HORNBILL 350 rotary tiller is matched with tractors of 130 - 160 horsepower. The whole machine is equipped with 100 standard rotary tillage cutters. The tilling depth can reach 12 - 18 cm. The cutter shaft can be optionally equipped according to the working conditions of the field, such as disc deep tillage cutters, 30 deep tillage cutters, 40 deep tillage cutters and so on. For the soil covering and compression device of the rotary tiller, the drag plate type soil covering device can be optionally selected, and you can also choose the "Lightweight cage type compression roller" or "Heavy duty nail toothed compression roller". It is suitable for plowing and rotary tilling operations in large farms and grasslands.
