CBA100 Single Bit Stainless Steel Finishing Boring Head for Dia Less 100mm

Finishing Boring Head and Roughing Boring Head are two commonly used machining methods in metal processing. Precision boring refers to the precision machining of the inner hole surface of the workpiece, which is usually used for machining high-precision inner holes, such as cylinder holes. Rough boring refers to rough machining on the surface of the inner hole of the workpiece, which is usually used for machining the inner hole with low rough machining requirements, such as bearing holes.

Here's a look at ‌CBA SS Finishing Boring Head:

‌CBA68 Single bit stainless steel finishing boring head design is easy to use, simple adjustment, clamping mechanism safety. For precise and smooth surface finishes on workpieces 95-152 mm in diameter. The CBA68 Single bit stainless steel finishing boring head is a reliable, high-performance tool for high precision.

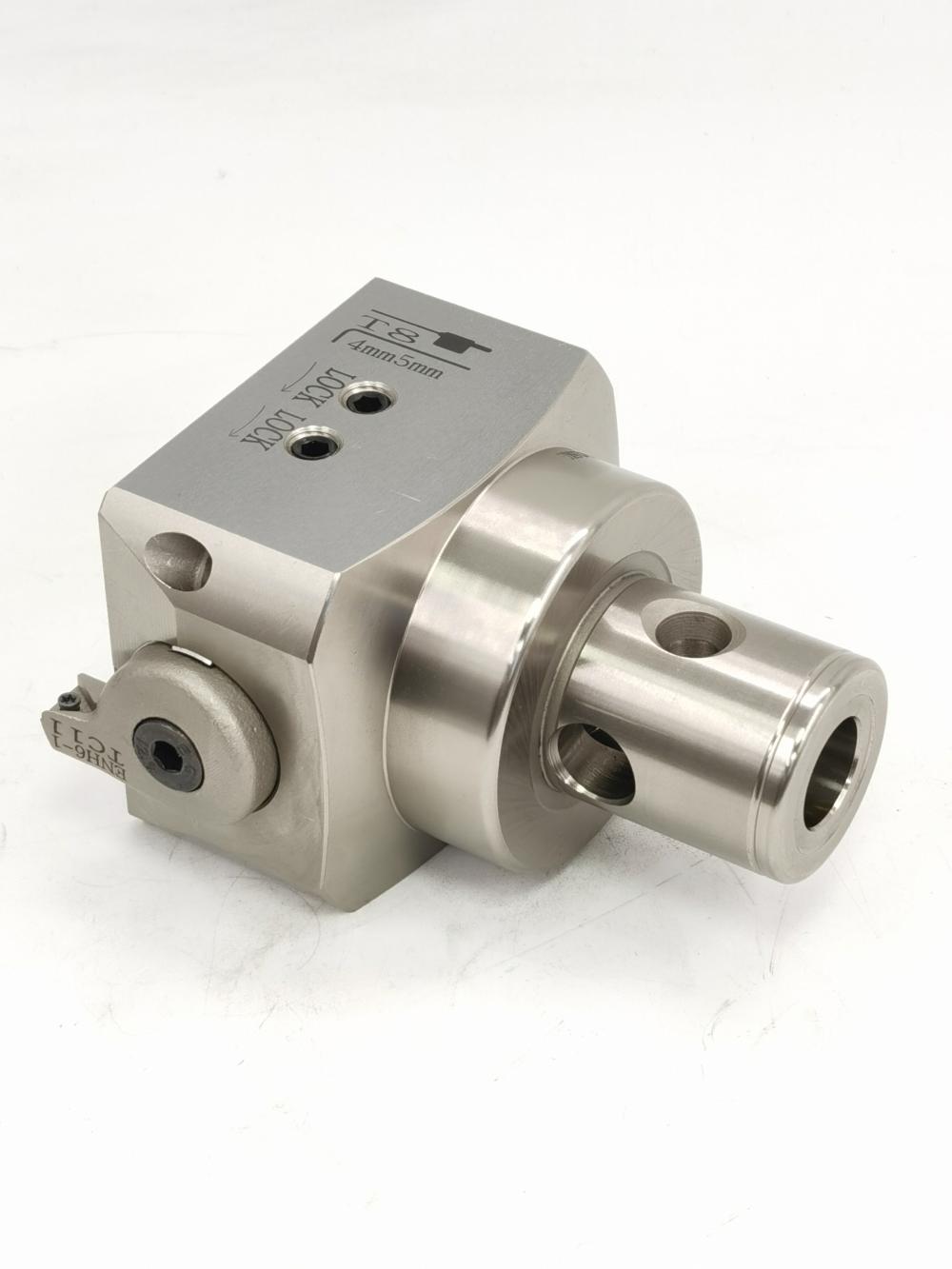

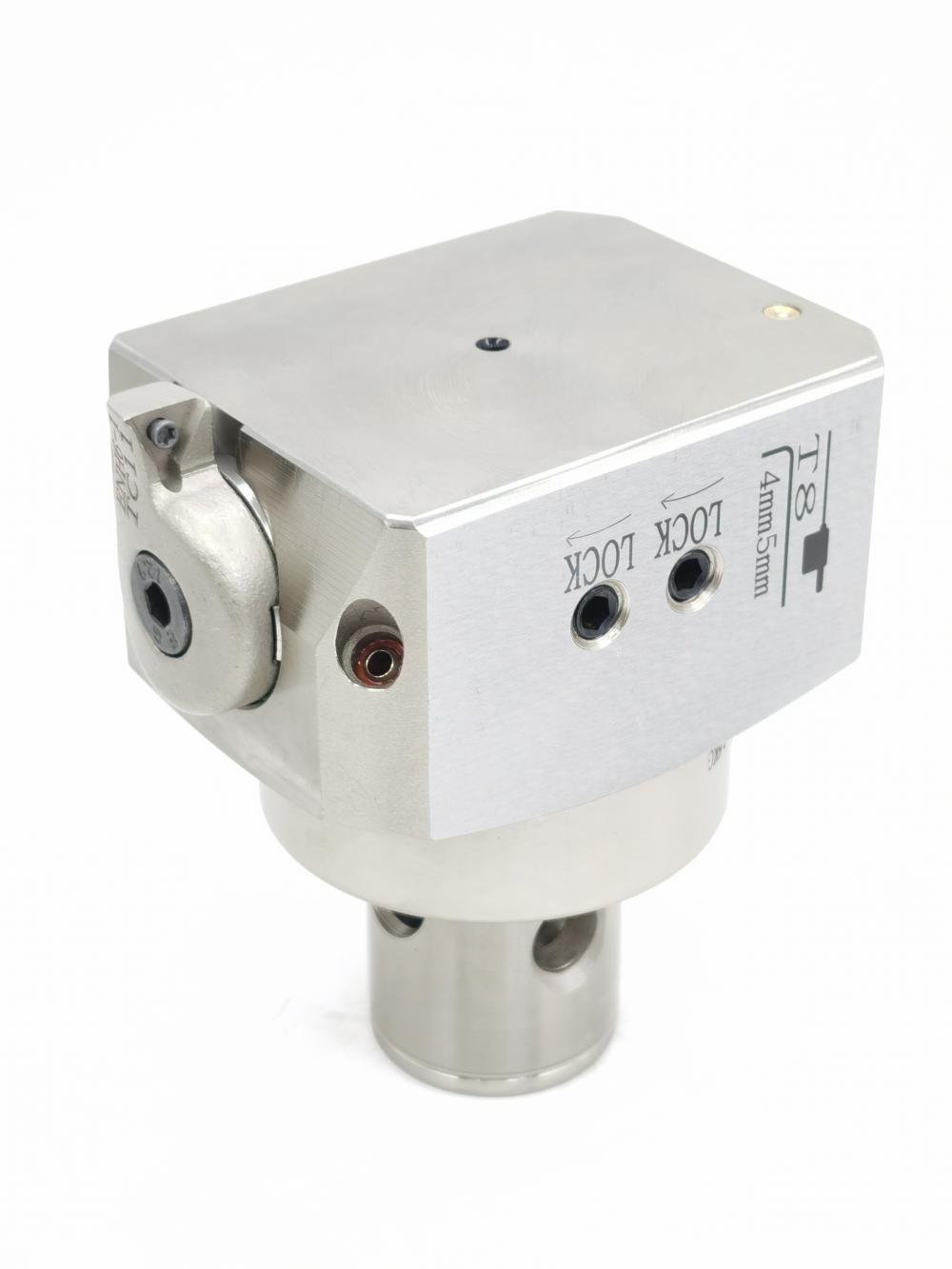

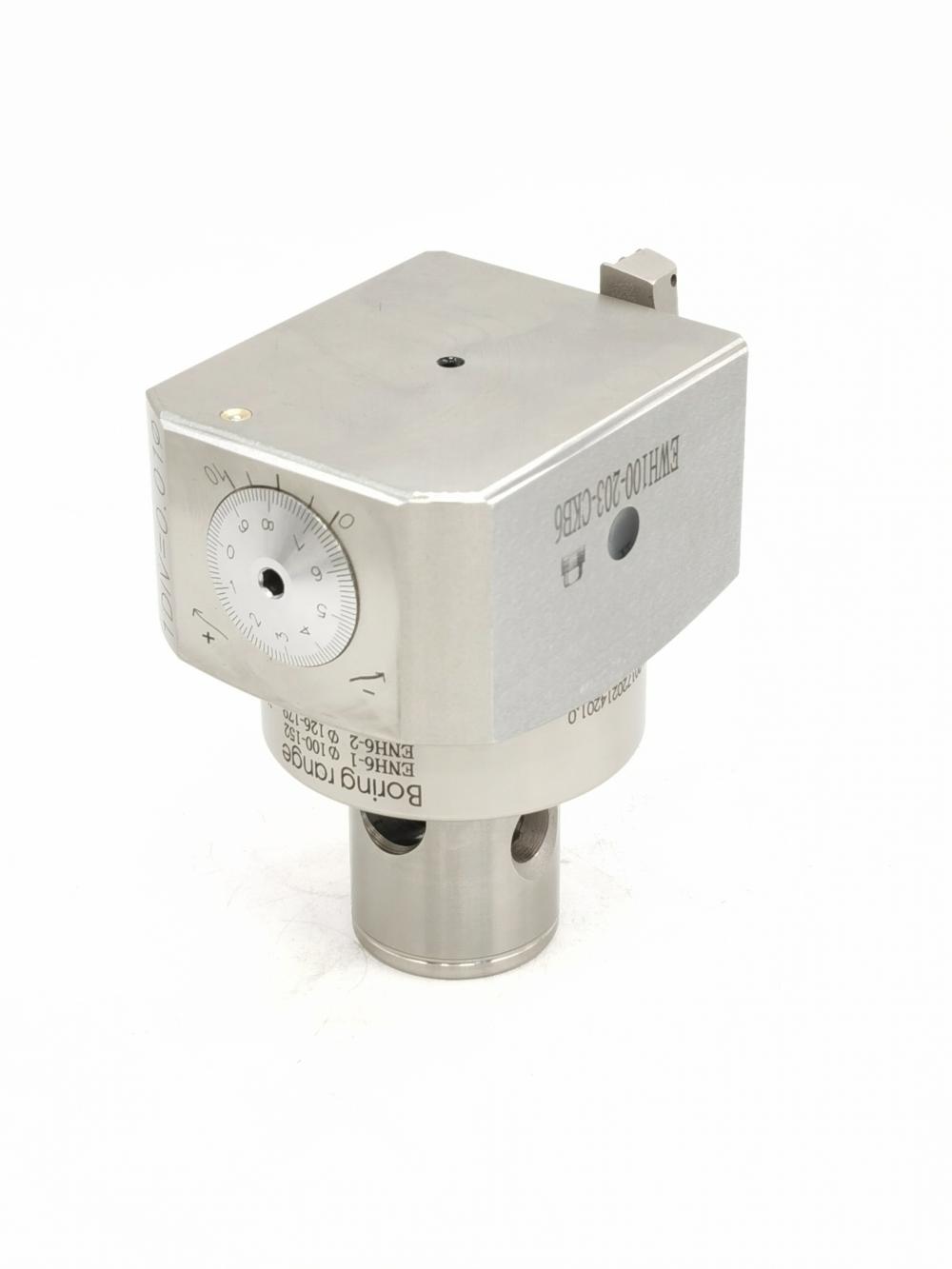

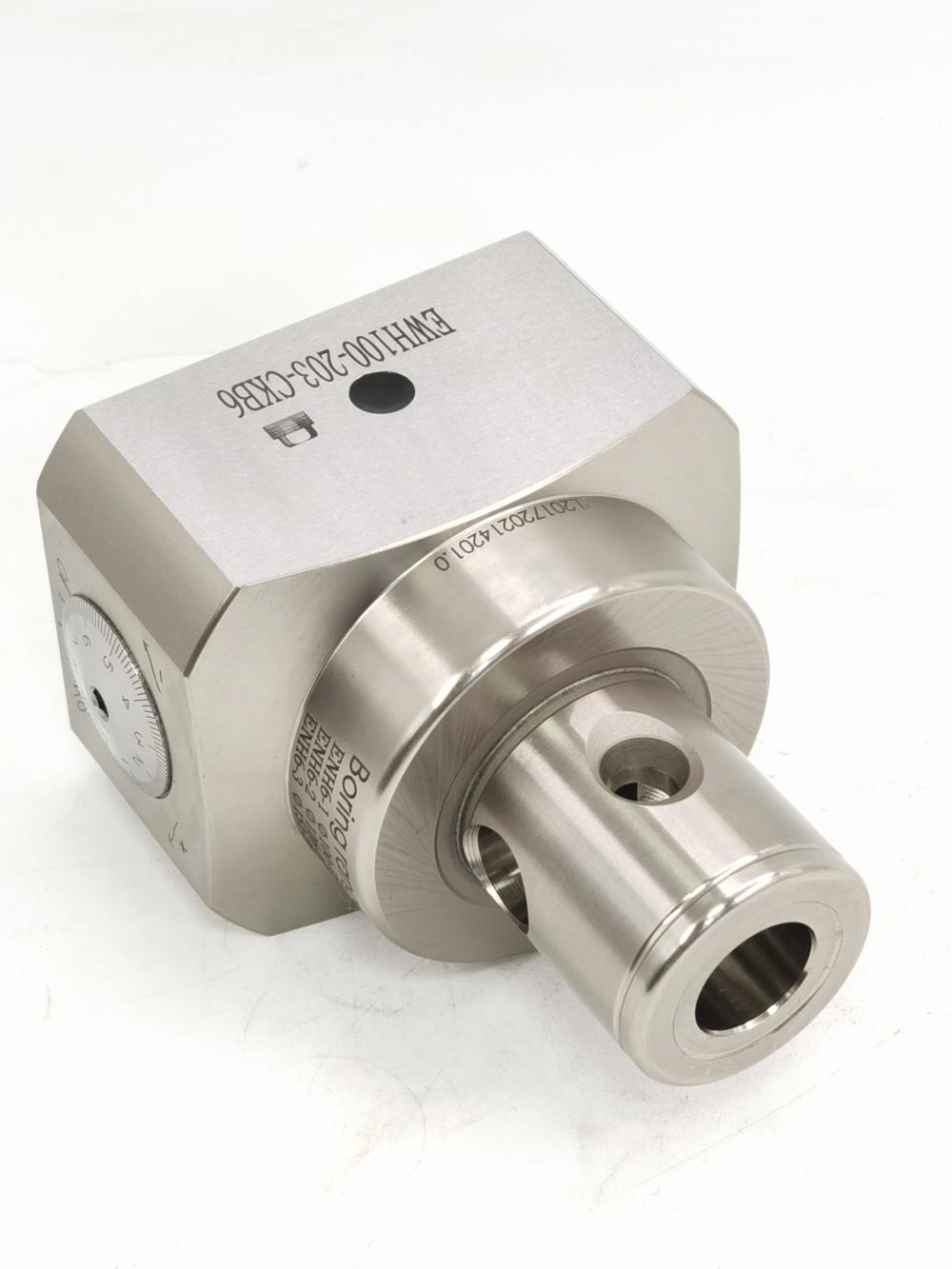

The CBA100 single bit stainless steel finishing boring head is adjustable, allowing the desired cutting diameter to be easily set within a specified range. It is made of high-quality stainless steel with excellent durability and corrosion resistance.

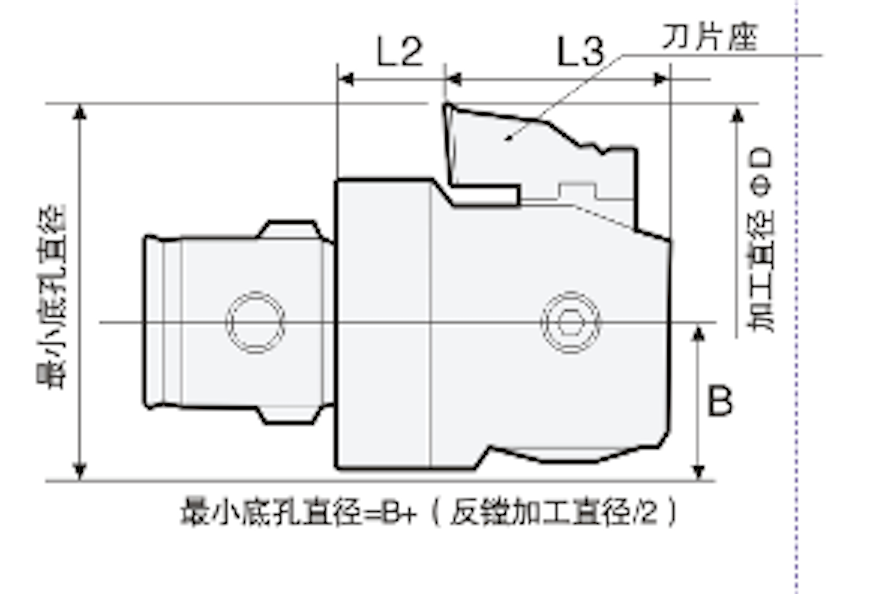

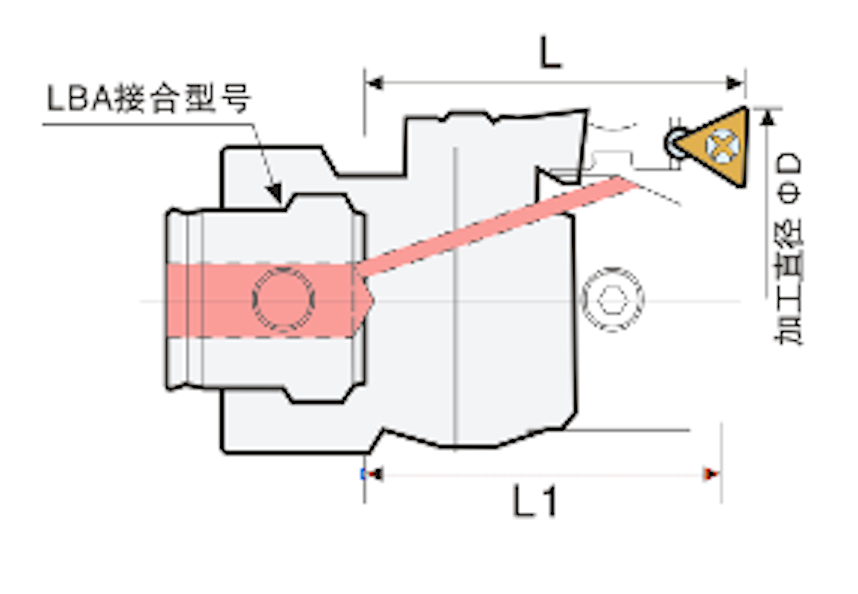

Specification	Insert holder	Normal Boring			Reverse Boring				LBA No.	Insert / Screw / Wrench	Weight(kg)
		Boring range ФD	L	L1	Boring range ФD	L2	L3	B
CBA20	ENH1-1	20-25mm	30mm	27mm	\	10.5	19	10	LBA1 (11mm）	TP08020L / M2.0 / T6	0.05
	ENH1-2	25-29mm			30-31mm
	ENH1-3	30-34mm			30-36mm
CBA25	ENH2-1	25-33mm	35mm	31mm	\	11.5	21	12.5	LBA2 （14mm）		0.15
	ENH2-2	32-40mm			36-40mm
	ENH2-3	39-47mm			39-47mm
CBA32	ENH3-1	32-43mm	42mm	37mm	\	10	25	16	LBA3 （18mm）	TP08020L / M2.0 / T6	0.25
	ENH3-2	41-51mm			46-51mm
	ENH3-3	50-60mm			50-60mm
CBA40	ENH4-1	41-56mm	50mm	47mm	\	14	29	20	LBA4 （22mm）		0.45
	ENH4-2	51-67mm			53-63mm
	ENH4-3	64-77mm			64-79mm
CBA52	ENH5-1	52-74mm	60mm	56mm	62-70mm	19	34	25.5	LBA5 （28mm）	TC11020L / M2.5 / T8	0.9
	ENH5-2	64-87mm			65-82mm
	ENH5-3	77-100mm			78-95mm
CBA68	ENH6-1	68-103mm	70mm	65mm	80-100mm	22	45.2	32.5	LBA6 （36mm）		1.75
	ENH6-2	95-128mm			94-126mm
	ENH6-3	118-153mm			118-150mm
CBA100	ENH6-1	100-152mm	70mm	65mm	112-153mm	22	45.2	45.5	LBA6 （36mm）		2.46
	ENH6-2	126-179mm			126-179mm
	ENH6-3	151-203mm			150-203mm
*Each boring head is equipped with three different insert holders to extend boring ranges.
*Internal cooling design extends the insert sevivce life.
*Each adjustment scale t is 0.01mm
*The material is made of heating strengthened hard stainless steel.
