Embedded Fin Tube

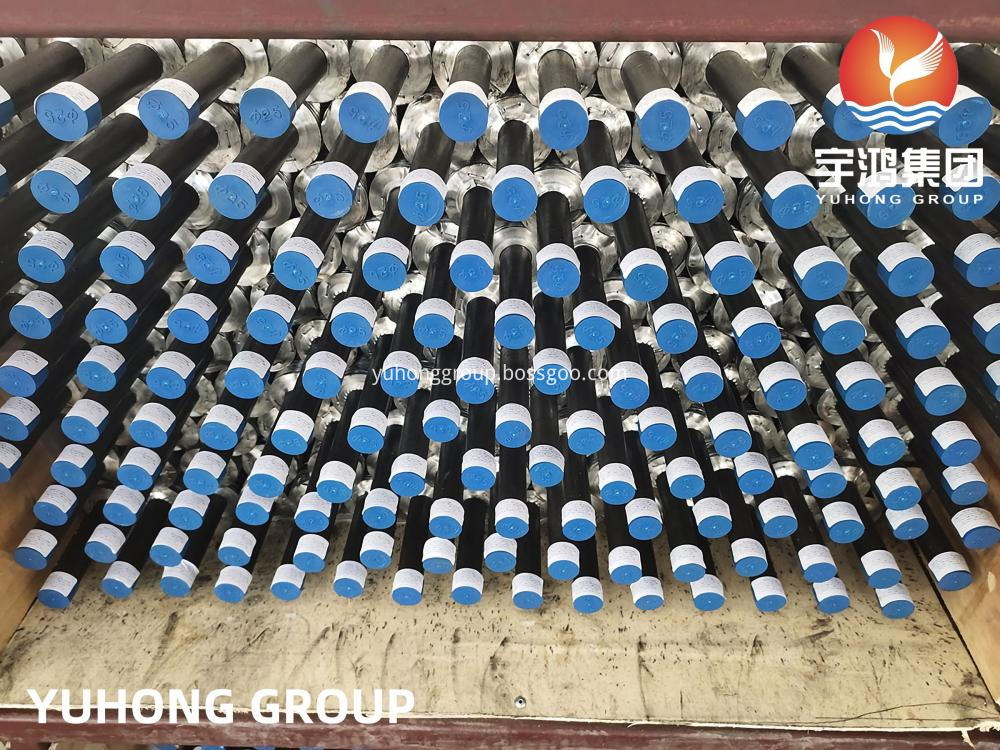

ASME SA179 Embedded G-Type Fin Tube

Overview:

G type embedded spiral finned tube is processed from a certain width in the steel pipe and spiral groove depth, then inlays the ribbon on the steel pipe by the equipment. In winding process, as the pre-tightening force to a certain extent so the strip will be firmly in the spiral groove, to ensure there is a certain contact area between steel band and steel pipe. In order to prevent the strip spring falling off the light tube, the two ends of the steel strip need to weld onto the steel pipe. In order to set easily, there should be a certain clearance between steel belt and spiral groove. If the clearance is too small the setting process will be difficult to proceed smoothly. In addition, the steel belt of winding there will always be a certain amount of rebound, which makes it cannot very good joint among the steel belt and spiral groove bottom. Inlaid fins can be conducted on general equipment, and they cost little.

Specification:

Chemical Composition:

Mechanical Properties:

Application of Finned Tubed in Industries:

1.Petroleum Industry
2.Chemical industry
3.Wood industry
4.Food industry
5.Steel Industry
6.Plastic molding industry
7.Glycol dehydration units
8.Coils for hybrid cooling towers
9.Printing Machines
10.Production of surface coatings
11.Solvent recovery
12.Cooling of turbine air intakes
13.Textile production
14.Greenhouse heaters and breeding
15.Tanneries
16.Anti-freeze coils for process air
17.Paper works
