Product description

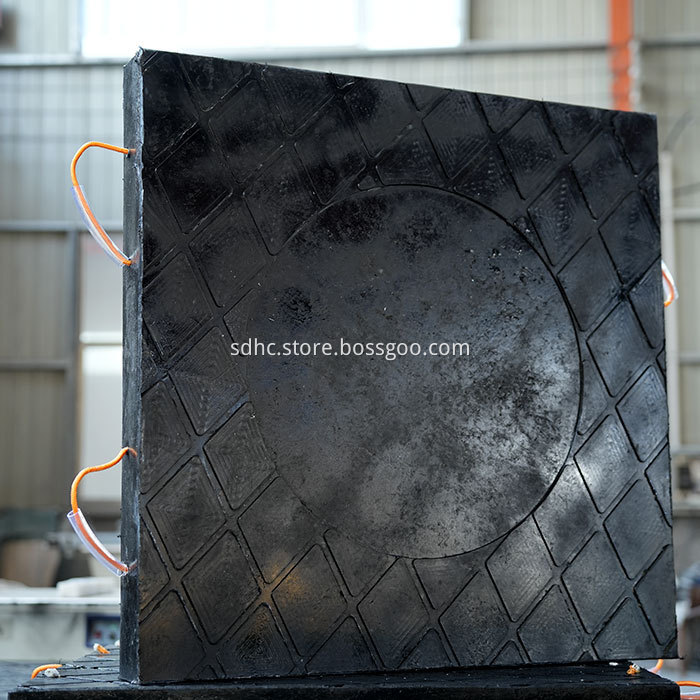

Crane Outrigger Pads & Jack Pads
Outriger pads provicle stable surfaces for heavy equipment lboads. The outiger pads are ighter than wood or steel and provide beter overall perfornance. With is superior characteristics, heavy duty outrigger pads provide support for all types of equipment, even in poor soil conditions.
Features
·Engineered Thermoplastic Construction
·Industrial Grade Safety Texturing
·Rounded Edges & Corners
·Waterproof and Chemical Resistant
·Non-Conductive
·Personalization stamping, engraving, decal options
Benefits
Outperforms Wood and Other Plastic Materials
Reliably Strong & Rigid Support
Easy to use
Ergonomic safety
Zero splinters, rot or absorption
Size |
Thickness |
Weight/kgs/Square |
Weight/kgs/Round |
Load/Tons |
300mm |
25mm |
2.25 |
1.70 |
4 |
500mm |
30mm |
7.50 |
5.90 |
12 |
600mm |
40mm |
14.40 |
11.30 |
20 |
700mm |
50mm |
24.50 |
19.20 |
25 |
800mm |
60mm |
38.40 |
30.10 |
30 |
| 1000mm | 80mm | 80 | 62.80 | 70 |
1200mm |
100mm |
144 |
113 |
160 |
