Product details

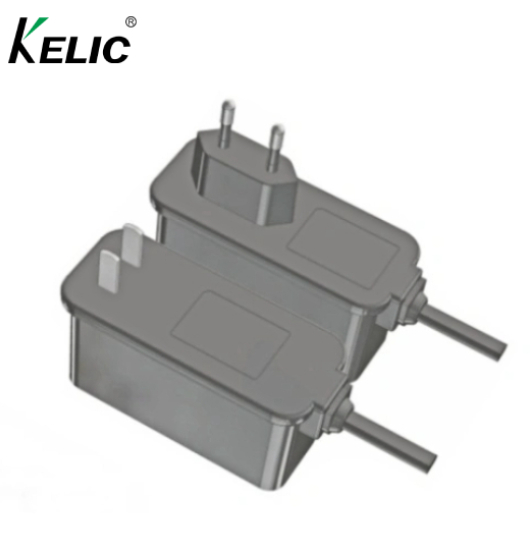

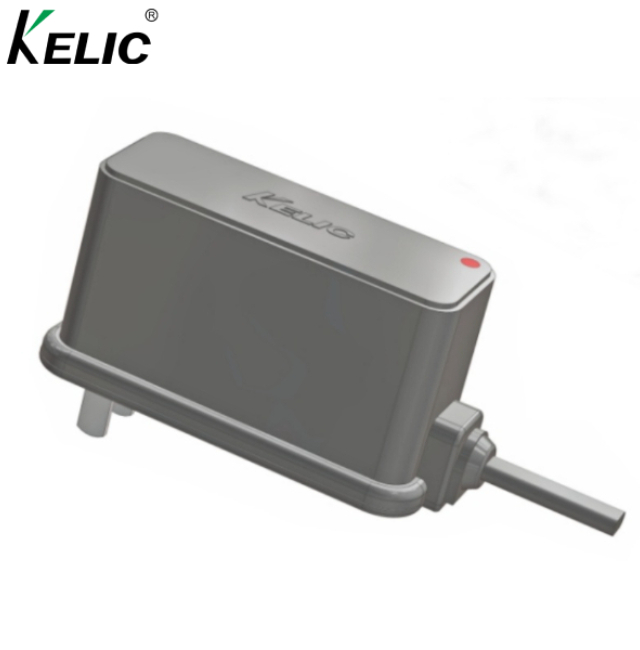

KELIC Wall Mount Power Adapter — KL52C-36

Electronic product wall mount power adapter

The working principle of the wall power adapter is basically the same as the working principle of the AC/DC Power Adapter is to convert the alternating current into the direct current required by the device.

Good compatibility: It can adapt to the domestic voltage and current standards, but also can adapt to the voltage and socket types in most countries in the world, without additional adapter purchase. Fast charging: Provides enough power to charge multiple devices at the same time, and even some models support fast charging technology, which can charge devices such as phones and tablets more quickly. It's an advantage to be out and about when you're in a hurry.

Wall Power Adapter Detail Parameter

Product model	9V4A	12V3A	15V2.4A	18V2A	24V1.5A	36V1A
Input (VAC)	100 - 240V/50 - 60Hz
Input current	≤1.0A
PF (%)	≥0.5
No - load power	≤0.3W
Efficiency (%)	≥75%	≥81%	≥83%	≥84%	≥85%	≥86%
Output (VDC)	9±5%V	12±5%V	15±5%V	18±5%V	24±5%V	36±5%V
Max transient current	≤5A	≤5A	≤4A	≤3.6A	≤2.5A	≤1.5A
Ripple wave	≤100mV	≤120mV	≤150mV	≤180mV	≤240mV	≤360mV
Output (max)	36W
Lsolation voltage	≥3.75KV / 5ma / 60S
Surge voltage	≥ 3KV
Protection	OVP、OCP、SCP
Waterproof grade	IP67
Standard	ETL / FCC / GS / CE / CB / BSMI / CCC / CQC / SAA / KC

Accept customer OEM/ODM

The description here is not used as the AC/DC Power Adapter product purchase acceptance standard.

Please confirmyourrequirements with the sales manager.
