Product details

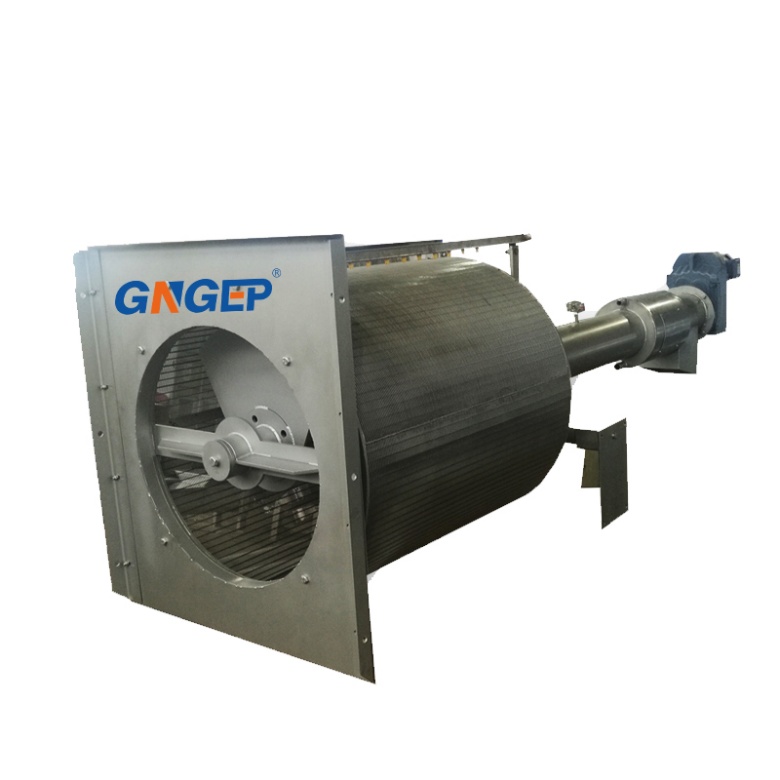

Rotary drum screen wastewater treatment microfilter

Rotary drum fine screen is used for solid/water separation which usually consists of more dense particles that need to be removed from the effluent. The effluent enters the inside of the rotating drum fine screen through the feed inlet and then passing over the distribution weir on to the drum surface. The particles and water separate as the drum rotates with the solids staying on the drum screen and passing down the length of the drum screen helped by internal flights or a continuous scroll.

The solids will then discharge into a skip or other machinery for further treatment. The screened liquid travels through the drum before l leaving through the liquid outlet at the bottom of the machine. The RDS machine also contains an external pressurized water spraying system to help keep the drum screen clean and avoid clogging.

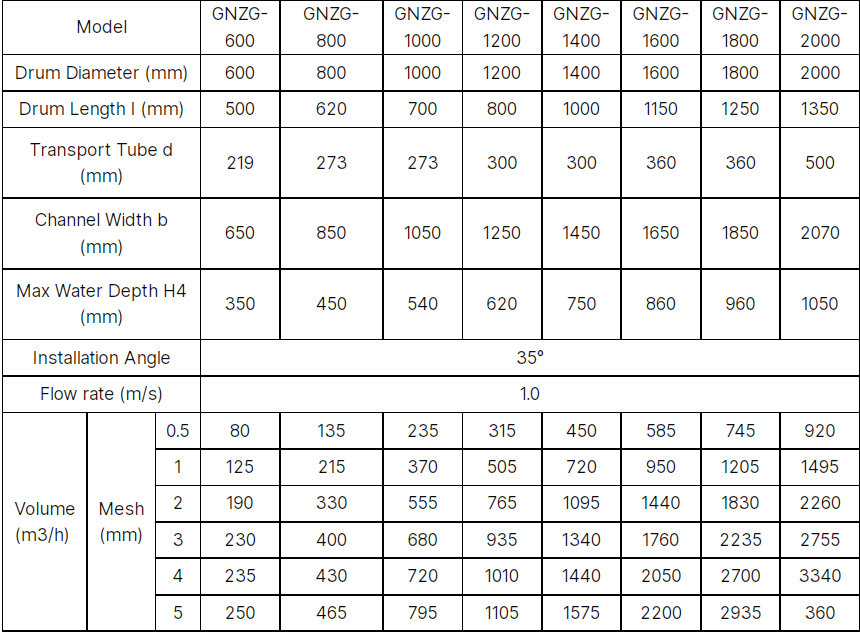

Technical Parameters

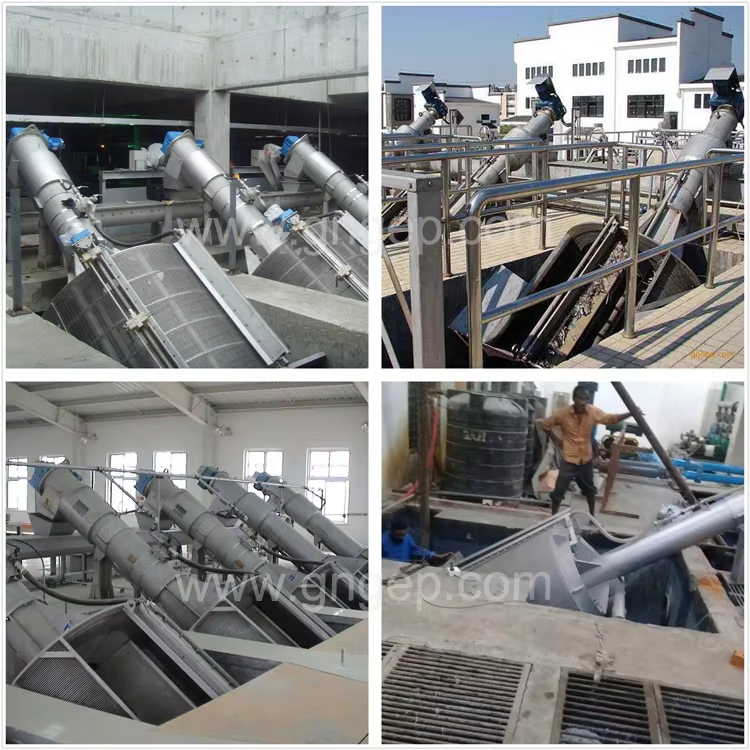

Project Case
