Plastic Bottles Baler
5 month ago
Product details

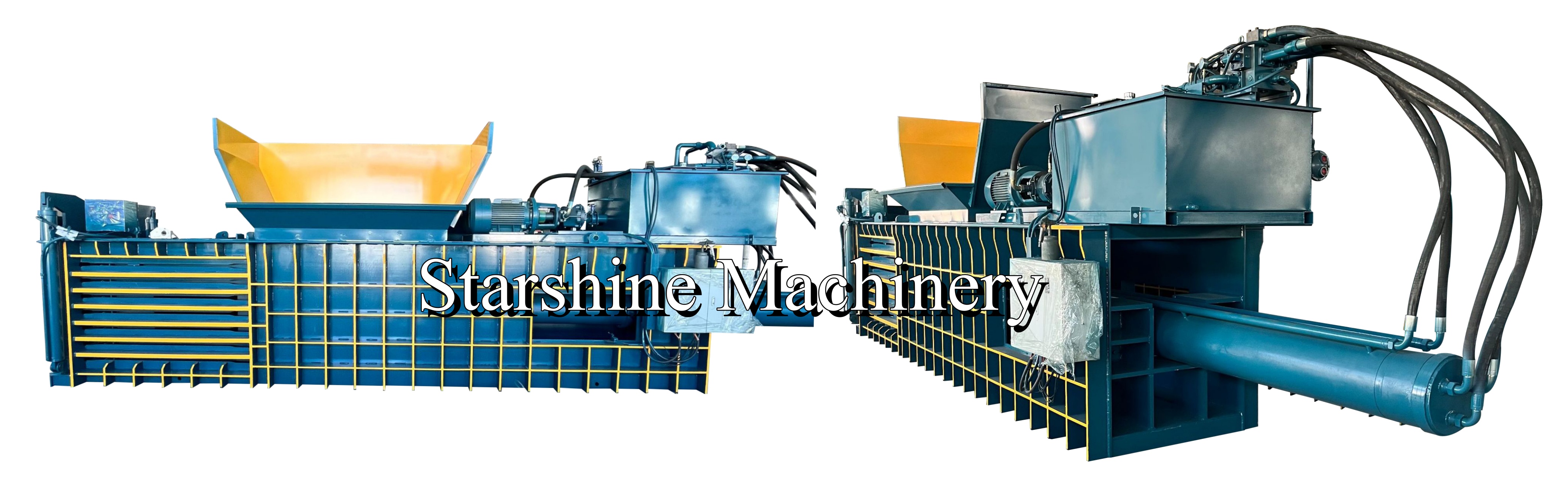

Plastic Bottles Recycling Baler Machine
Introduction：
This hydraulic Baler is a equipment specially used for compressing and packaging plastic bottles. It can gather a large number of dispersed plastic bottles together, by applying pressure, so that it forms a tight, regular mass. Horizontal Baler
When working, the plastic bottle enters the compression chamber of the baler from the feed port. The plastic bottle is then squeezed using the pressure generated by the hydraulic or mechanical system, the indenter or the pressure plate. When the plastic bottle is compressed to the set size and density, the packaging device will use wire, plastic tape and other materials to tie it into a bag for convenient storage and transportation.
Structural composition：
1. Fuselage frame: This is the basic structure of the entire baler, which is generally welded with high-strength steel. It provides sufficient strength and stability to withstand the enormous pressure generated during compression, ensuring that the machine does not wobble or deform while working. Plastic Baler
2. Feeding system: including feeding port and conveying device. The design of the inlet is convenient for the input of the plastic bottle, and its size and shape will be designed according to the size and shape of the plastic bottle, some are round and some are square. The conveyor can be a conveyor belt or a screw propeller, which can smoothly feed the plastic bottle into the compression chamber.
3. Compression system: mainly composed of hydraulic cylinder or mechanical transmission parts. The hydraulic system transmits the hydraulic oil to the cylinder through the oil pump to produce a strong pressure to push the indenter; The mechanical system uses motors, gears, screws and other components to transfer power to the pressure plate to achieve compression of plastic bottles.
4. Packaging system: After the plastic bottle is compressed, the packaging system is responsible for tying it into bags. The utility model comprises a packing belt feeding device, a tightening device and a cutting device. The supply device provides packing materials such as iron wire and plastic tape. The tension device tightly binds the packing tape to the plastic bottle package block. The cutting device cuts the packing tape to complete the packing operation. Bottle Baler
5. Control system: used to control the various working links of the baler, including starting, stopping, pressure adjustment, packaging circle number setting and other functions. The control system can be a simple push-button operating panel, or it can be an intelligent control system with a touch screen, which is convenient for the operator to set according to different needs.
Application fields：
1. Plastic bottle recycling enterprises: This is the most important application place of plastic bottle baler. After collecting plastic bottles from various channels, recycling companies use balers to compress and pack them for subsequent storage and transportation to plastic recycling plants. Plastic Bottle Baler
2. Beverage production enterprises: beverage production enterprises will produce a large number of plastic bottle scraps and unqualified products in the production process. The plastic bottle baler can process these plastic bottles, reduce the space it occupies, and facilitate the enterprise to recycle these plastic bottles internally or hand them over to professional recycling enterprises. Baler Machine For Plastic
3. Garbage disposal center: In the process of garbage disposal, the plastic bottle baler can centrally dispose of the plastic bottles after classification, improving the efficiency of garbage disposal and resource recycling. It can separate plastic bottles from other waste for compression packaging, so that plastic bottles can better enter the recycling channel.
| Model | JPW80QT | JPW100QT | JPW120QT | JPW150QT |
| Hydraulic power | 80Ton | 100Ton | 120Ton | 150Ton |
| Packaging size(W*H*L) | 1100*800*(300-1800)mm | 1100*1000*(300-2000)mm | 1100*1100*(300-2100)mm | 1100*1100*(300-2100)mm |
| Feed opening size(L*W) | 1650*1100mm | 1800*1000mm | 2000*1100mm | 2200*1100mm |
| Bale density | 450-550Kg/m3 | 500-600Kg/m3 | 550-650Kg/m3 | 600-750Kg/m3 |
| Bale line | 4 line | 4 line | 5 line | 5 line |
| Capability | 4-7Ton/Hr | 7-10Ton/Hr | 8-13Ton/Hr | 10-16Ton/Hr |
| Power | 37KW/50HP | 55KW/75HP | 67KW/90HP | 93KW/124HP |
| Machine size(L*W*H)mm | 7900*3500*2300 | 8900*4050*2400 | 9700*4330*2400 | 10000*4250*2500 |
| Machine weight | 11 Ton | 13.5 Ton | 17 Ton | 20Ton |
