Vertical Multistage Centrifugal Pump
5 month ago
7.5kw/10hp stainless steel multistage booster pump
2. Stainless steel type is used in delivery of slightly alkaline water, mineral water, distilled water, swimming pool water and other liquid containing the chloride, the temperature of the liquids shall be decreased to certain degree.
Head range:12-187m
Diameter: 25-125mm
Temperature:-15-70℃(hot water:70-120℃)
| Type | Power | Discharge flow | Lift head | |
| CDL series | kw | hp | m3/h | m |
| CDL8-18 | 7.5 | 10 | 5 | 187 |
| CDL8-18 | 7.5 | 10 | 6 | 182 |
| CDL8-18 | 7.5 | 10 | 7 | 175 |
| CDL8-18 | 7.5 | 10 | 8 | 167 |
| CDL8-18 | 7.5 | 10 | 9 | 157 |
| CDL8-18 | 7.5 | 10 | 10 | 146 |
| CDL8-18 | 7.5 | 10 | 11 | 134 |
| CDL8-18 | 7.5 | 10 | 12 | 120 |
| CDL8-20 | 7.5 | 10 | 5 | 208 |
| CDL8-20 | 7.5 | 10 | 6 | 202 |
| CDL8-20 | 7.5 | 10 | 7 | 195 |
| CDL8-20 | 7.5 | 10 | 8 | 186 |
| CDL8-20 | 7.5 | 10 | 9 | 175 |
| CDL8-20 | 7.5 | 10 | 10 | 163 |
| CDL8-20 | 7.5 | 10 | 11 | 150 |
| CDL8-20 | 7.5 | 10 | 12 | 135 |
| CDL12-10 | 7.5 | 10 | 7 | 120 |
| CDL12-10 | 7.5 | 10 | 8 | 118 |
| CDL12-10 | 7.5 | 10 | 9 | 114.5 |
| CDL12-10 | 7.5 | 10 | 10 | 111 |
| CDL12-10 | 7.5 | 10 | 11 | 106 |
| CDL12-10 | 7.5 | 10 | 12 | 101 |
| CDL12-10 | 7.5 | 10 | 13 | 94.5 |
| CDL12-18 | 7.5 | 10 | 7 | 143.5 |
| CDL12-18 | 7.5 | 10 | 8 | 141 |
| CDL12-18 | 7.5 | 10 | 9 | 137 |
| CDL12-18 | 7.5 | 10 | 15 | 96 |
| CDL16-8 | 7.5 | 10 | 8 | 110 |
| CDL20-6 | 7.5 | 10 | 10 | 81 |
| CDL20-6 | 7.5 | 10 | 12 | 79 |
| CDL20-6 | 7.5 | 10 | 14 | 77 |
| CDL20-6 | 7.5 | 10 | 16 | 75 |
| CDL20-6 | 7.5 | 10 | 26 | 55 |
| CDL20-7 | 7.5 | 10 | 10 | 95 |
| CDL32-40-2 | 7.5 | 10 | 16 | 65 |
| CDL32-40-2 | 7.5 | 10 | 20 | 62 |
| CDL32-40-2 | 7.5 | 10 | 28 | 53 |
| CDL32-40-2 | 7.5 | 10 | 40 | 30 |
| CDL42-20 | 7.5 | 10 | 25 | 48 |
| CDL42-20 | 7.5 | 10 | 35 | 44 |
| CDL42-20 | 7.5 | 10 | 45 | 39 |
| CDL42-20 | 7.5 | 10 | 55 | 31 |
| CDL65-20-2 | 7.5 | 10 | 30 | 39 |
| CDL65-20-2 | 7.5 | 10 | 60 | 29 |
| CDL65-20-2 | 7.5 | 10 | 80 | 17 |
| CDL85-10 | 7.5 | 10 | 70 | 22 |
| CDL85-10 | 7.5 | 10 | 110 | 12 |
1. High head
2. Corrosion resistance
3. The whole pump is casting with sophisticated stainless steel:Stainless steel plate stamping,light weight
Working conditions:
1. used in delivery of liquids that is clean, hot or cold, non flammable, not explosive, containing no solid particles or fibers.
2. liquid temperature: -15℃~120℃
3. ambient temperature: +40℃ at most
4. The minimum pressure at inlet: according to the NPSH curve and the minimum security lift 0.5m.

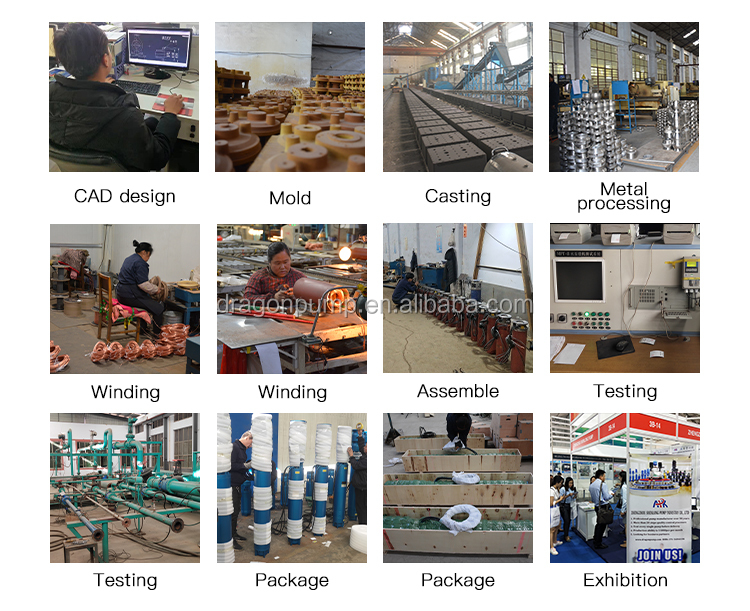

Shenlong pump factory strength is verified by Alibaba about submersible pump production line capacity and production machinery.
| Employees in Each Production Line | ||||
| Production Line | Supervisor | No.of Operators | No. of In-line QC/QA | |
| Workshop | 12 | 248 | 12 | |
| Production Capacity | ||||
| Product name | Production Line Capacity | Actual Units Produced (Previous Year) | ||
| Submersible pump, Sewage pump | USD 40,000,000.00 Per Year | Confidential | ||
| Production Machinery | ||||
| Machinae Name | Brand&Model No. | Quantity | Number of Years Used | Condition |
| Grinding machine | N7163 | 3 | 6 | Acceptable |
| CNC center | YJK150130 | 3 | 6 | Acceptable |
| Lathe | CW6263B,CD6140A | 43 | 10 | Acceptable |
| Miling machine | X2012C | 1 | 5 | Acceptable |
| Boring machine | PX611B | 4 | 10 | Acceptable |
| Vertical lathe | CA5112E | 2 | 11 | Acceptable |
| Drilling machine | Z3030, Z3032 | 5 | 11 | Acceptable |
| Slotting machine | B5032 | 4 | 8 | Acceptable |
| High speed punch press machine | J76-300, J21-160 | 2 | 6 | Acceptable |
| Testing Machinery | ||||
| Machine Name | Brand&Model No. | Quantity | Number of Years Used | Condition |
| Pump microcomputer test bench | MPT-Ⅱ | 4 | 20 | Acceptable |
We take exhibition 1-3 times each year, such as Vietnam, Indonesia, Canton Fair, Australia,etc.
This is Destiny from Shenlong pump factory, please kindly contact us at any time.
