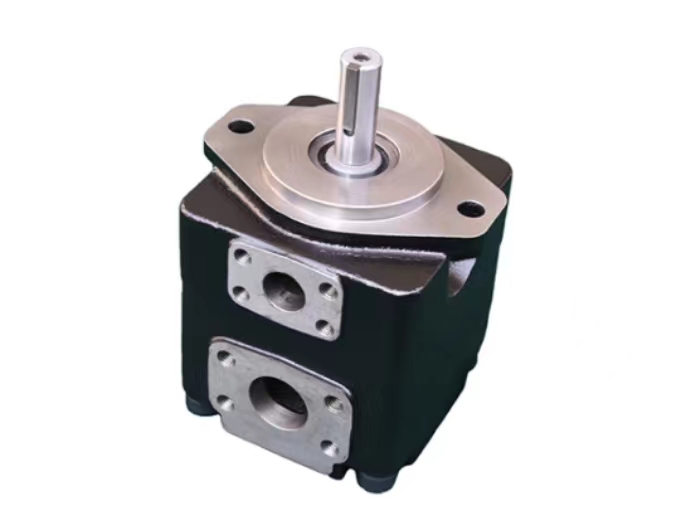

T7DB42-1R00-B1 VANE PUMP

4 month ago

4 0 

3 year

Product details

T7DB42-1R00-B1 is a kind of single hydraulic vane pump of high pressures. It's specially designed for industrial applications such as plastic molding injection machines, press machines and die casting machines as well. Its cartridge kit design includes rotor, cam ring, vane kit of double lip, balancing plates etc. This excellent concept allows the pumps running at the low speed of 600rpm under full pressure. It also could gain the fast pressure cycle change with a precise flow repeatabilithy. It's an ideal choice for METAL PROCESSING machines

SPECIFICATION:

Displacement :137.5ml/rev

Connection: SAE, 4-bolt flange

Foot Mounting

Shaft: both straight keyed and splined available

Rotationg: right hand or left hand

FLOW RATE @ 1500RPM: 206.3/min(p=0bar), 199.6l/min(p=140bar), 194l/min(p=260bar)

Input Power @ 1500RPM:3.2kW(p=7bar), 49.3kW(p=140bar, 90.5kW(p=260bar)

FEATURES:

Low energy consumptions

Low noise level

High volumetric efficiency

Easy for installation and after sale service

extended long service life

APPLICATION:

Press

Injection machines

Lubrication

Machines tools
