EC360 Slewing Assembly

4 month ago

3 0 

3 year

Product details

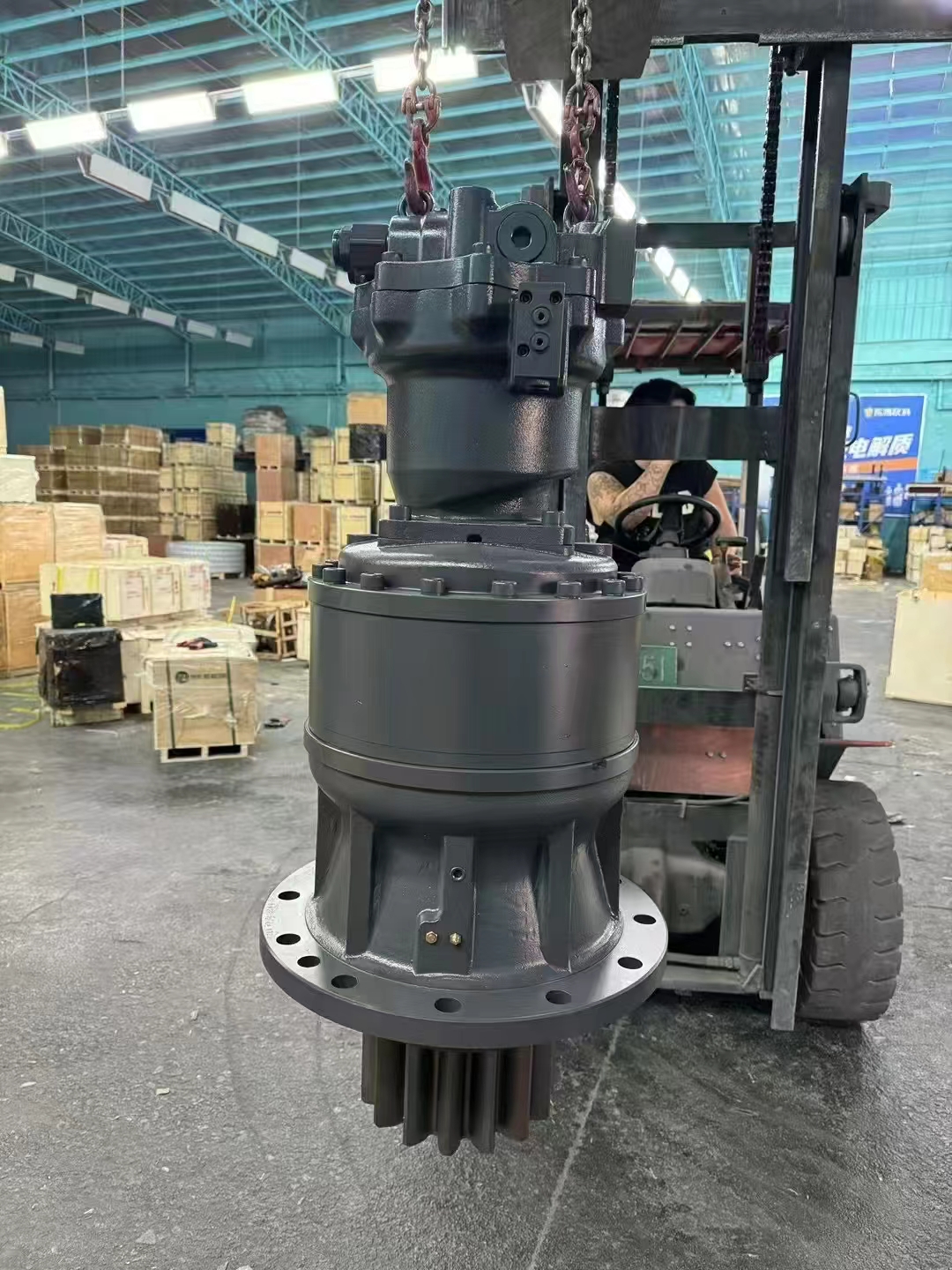

The EC360 Hydraulic Slewing Assembly is a critical component in the Volvo EC360 excavator, responsible for the rotation of the upper structure of the machine. Below are some specific details about the EC360 Hydraulic Slewing Assembly:

Function

The hydraulic slewing assembly allows the upper part of the excavator (including the cab, boom, arm, and bucket) to rotate around a vertical axis, enabling the machine to reach and work in different directions without moving the entire machine.

Key Components

1. Slewing Motor and Reducer: The slewing motor provides the power for rotation, while the reducer reduces the speed and increases the torque to drive the upper structure smoothly.

2. Hydraulic Pipes and Valves: These components deliver pressurized hydraulic fluid to the slewing motor, controlling its operation. Valves regulate the flow and pressure of the hydraulic fluid to ensure smooth and controlled rotation.

3. Bearings: High-capacity bearings support the load and facilitate smooth rotation of the upper structure.

4. Structural Components: These include the slewing ring, frame, and other parts that connect and support the slewing assembly.

Technical Specifications

• Maximum Slewing Speed: Typically around 10.3 revolutions per minute (r/min), allowing for quick changes in direction.

• Slewing Torque: The slewing assembly can generate significant torque to rotate the upper structure, even under heavy loads. The maximum slewing torque can reach values like 126.2 kNm.

• Hydraulic Pressure: The hydraulic system operates at a specific pressure to ensure the slewing motor functions correctly. The overflow valve sets the maximum pressure for the slewing circuit.

Performance and Features

1. High Efficiency: The hydraulic slewing assembly is designed for optimal efficiency, minimizing energy loss and maximizing productivity.

2. Smooth Operation: The reducer and bearings ensure smooth and controlled rotation, reducing wear and tear on the machine.

3. Durability: Made from high-quality materials and precision-manufactured components, the slewing assembly is built to withstand the rigors of construction work.

4. Reliability: With proven technology and robust design, the slewing assembly is reliable and requires minimal maintenance.
