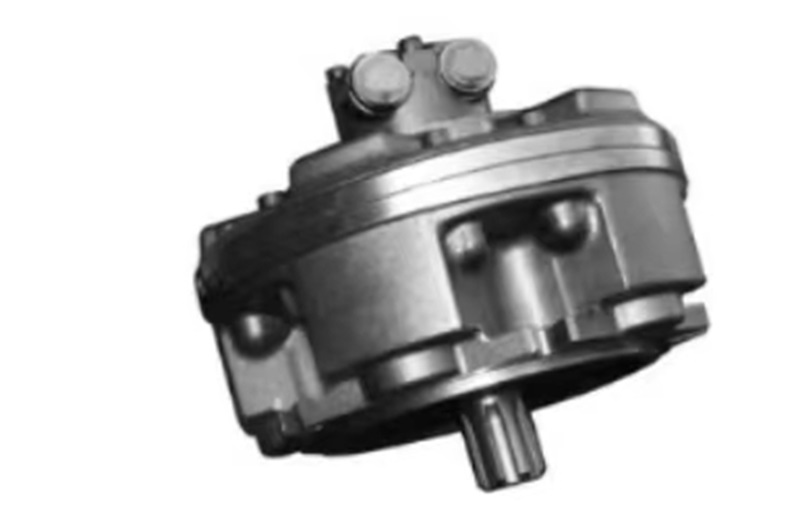

XHS Series High Torque Hydraulic Motor

Specific Details

1. High Efficiency:

• Due to the absence of lateral forces between the piston and the swing cylinder, and the design of the piston base for hydrostatic balance, the torque is transmitted between the piston and the crankshaft through rolling bearings, reducing friction losses during force transmission.

• Therefore, the XHS series hydraulic motor boasts high mechanical efficiency and high starting torque, with a mechanical efficiency of over 0.92 during startup.

2. High Volumetric Efficiency:

• The flat-surface distributor (patented technology) is simple, reliable, and has excellent sealing performance with minimal leakage.

• The piston and swing cylinder are sealed with plastic piston rings without leakage, achieving a volumetric efficiency of up to 0.98.

3. Excellent Low-Speed Stability:

• The structure reduces friction losses and improves sealing performance.

• It can operate smoothly at speeds of 1 r/min, with a wide speed regulation range, and a speed adjustment ratio of up to 1,000.

4. Compact Structure and Long Lifespan:

• The structure is simple and well-designed, utilizing bearings with high load capacity.

• It is reliable, long-lasting, and low-noise, with the drive shaft capable of bearing radial loads and reversible rotation.

5. High Pressure, Lightweight, and Small Volume:

• This series of hydraulic motors can operate at high pressures, up to 45 MPa.

• They are lightweight, small in size, and have high power-to-weight ratios.

Application Scope

The XHS series high torque hydraulic motor has a wide range of applications and can be used in the hydraulic transmission systems of various machinery, including but not limited to:

• Injection molding machines, light industrial machinery, engineering machinery

• Metallurgical equipment, oil and coal mining

• Geological exploration, railways, shipping

• Environmental protection equipment, machine tools, agricultural machinery, etc.

In particular, it is suitable for driving lifting winches, reel machines, various rotating machinery, and the driving mechanisms of crawler and wheeled traveling gears in transmission machinery.

In summary, the XHS series high torque hydraulic motor plays an important role in the industrial sector due to its excellent performance and wide range of applications.
