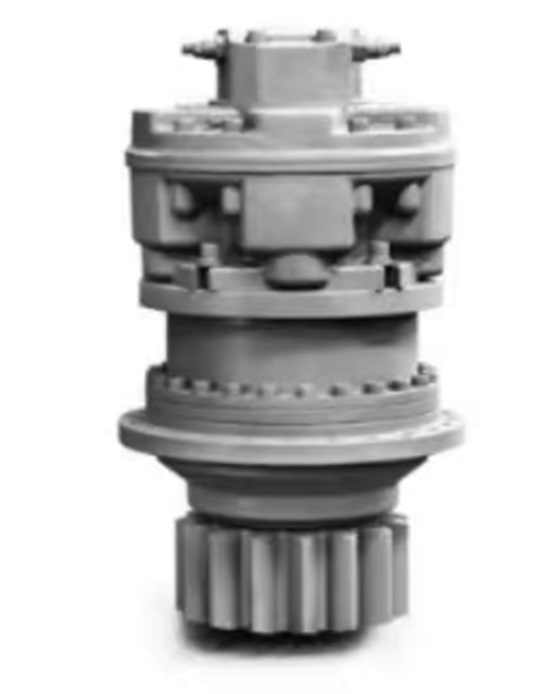

XHSC Hydraulic Transmission Devices

4 month ago

3 0 

3 year

Product details

XHSC Hydraulic Transmission Devices refer to a specific type of hydraulic transmission equipment characterized by their high performance and versatility. Here is a detailed overview:

Key Features

1. High Pressure Capability:

• XHSC hydraulic transmission devices are designed to operate under high pressure conditions, making them suitable for demanding applications.

2. Versatile Mounting Options:

• These devices can be mounted in any direction, providing flexibility in installation and integration into various machinery and systems.

3. Lubrication Requirements:

• To ensure smooth operation and prolong the lifespan of the hydraulic motor, it is essential to fill the motor with hydraulic oil, ensuring all internal parts are adequately lubricated.

4. Directional Operation:

• XHSC hydraulic transmission devices can run in both clockwise and anticlockwise directions, catering to diverse operational needs.

5. Oil Temperature Range:

• Ideal operating temperature for the hydraulic oil is between 30°C and 50°C, with an allowed range of 20°C to 80°C. Special low-freezing hydraulic oil should be used when temperatures drop below 10°C.

6. Oil Viscosity and Filtering:

• The recommended viscosity of hydraulic oil is 40-60 CST (centistokes), with an allowed range of 5-300 CST. The filtering precision of the hydraulic oil should be not less than 25 micrometers.

Technical Specifications

• Maximum Casing Pressure: Typically, the maximum pressure for the casing is 0.8 MPa. Customized options are available for higher pressure requirements.

• Hydraulic Oil Type: Mineral-based hydraulic oil is recommended, which should be of good quality, anti-foam, and anti-oxidation properties.

• Oil Distributor: The choice of oil distributor depends on various factors such as working pressure, rotating speed, flow volume, connecting method, and requirements of the integrated valve group.

Applications

XHSC hydraulic transmission devices are widely used in various industries and applications where reliable and efficient power transmission is crucial. These include but are not limited to:

• Construction Machinery: Excavators, loaders, and other heavy-duty construction equipment.

• Industrial Machinery: Machines requiring precise and reliable power transmission for various industrial processes.

• Agricultural Equipment: Tractors, harvesters, and other agricultural machinery needing robust and versatile hydraulic systems.

Manufacturer Information

Manufacturers of XHSC hydraulic transmission devices, such as Ningbo Xinhong Hydraulic Co., Ltd., focus on providing high-quality, energy-efficient, and environmentally friendly hydraulic transmission solutions. They often offer customized options to meet specific customer requirements and ensure the best possible performance in diverse applications.
