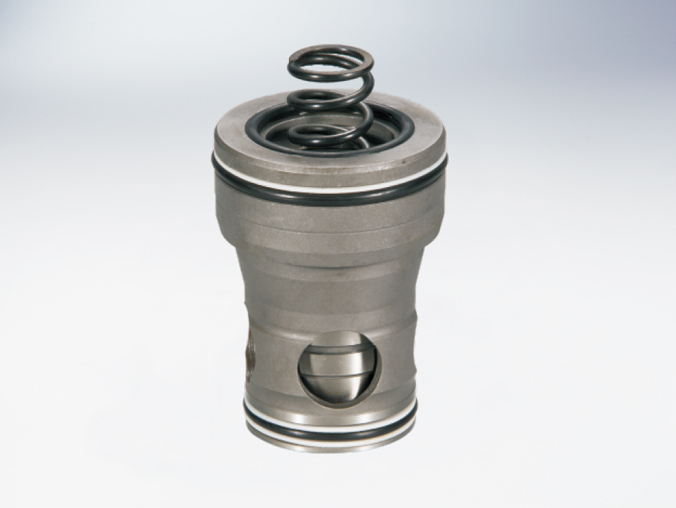

Two-way cartridge valve (directional)

3 month ago

3 0 

3 year

Product details

The Two-way cartridge valve (directional) is a fluid control component with specific flow direction control functionality. Below is a detailed explanation of its specific content:

I. Definition and Function

The two-way directional cartridge valve is a fluid control element that primarily alters the flow direction of fluid by moving a valve spool within a valve body, thereby achieving precise control over the fluid path. This valve plays a crucial role in fluid control systems, particularly in situations where fluid direction needs to be changed.

II. Structure and Composition

The two-way directional cartridge valve typically consists of a valve body, valve spool, sealing components, and possibly an actuator. The valve spool moves within the valve body to change the position of the fluid channel, enabling fluid direction reversal. The cartridge valve design facilitates easy installation and maintenance while ensuring good sealing and flow control capabilities.

III. Operating Principle

When the valve spool is in different positions, the two-way directional cartridge valve can achieve different fluid flow direction controls. For example, in some designs, when the valve spool is in one position, fluid can enter from one inlet and exit from one outlet; when the valve spool moves to another position, fluid can enter from the same inlet but exit from another outlet. This flexibility allows the two-way directional cartridge valve to adapt to various fluid control needs.

IV. Application Occasions

Due to its compact structure, ease of installation and maintenance, and excellent flow control capabilities, the two-way directional cartridge valve is widely used in various industrial fields. It is particularly used in hydraulic systems, pneumatic systems, and automated production lines to control the flow direction of hydraulic oil, compressed air, and other fluids, enabling various complex actions and functions. Additionally, it has widespread applications in environmental protection equipment, water supply systems, and cooling systems.

V. Characteristics and Advantages

1. Compact Structure: The design of the two-way directional cartridge valve makes it small in size, easy to install and maintain.

2. High Flow Rate: The valve channel design is reasonable, capable of handling large fluid flow rates.

3. Good Sealing: High-quality sealing materials are used to ensure that the valve does not leak during direction reversal.

4. Rapid Direction Reversal: The valve spool moves quickly, enabling swift fluid direction reversal.

5. Wide Range of Applications: Suitable for various fluid media and temperature ranges.

In summary, the two-way directional cartridge valve is a versatile and widely used fluid control component. Its compact structure, excellent flow control capabilities, and ease of installation and maintenance make it applicable in various industrial fields.
