Fr4 Substrate Material Pcb Epoxy Insulated Sheet
2 month ago
Product details

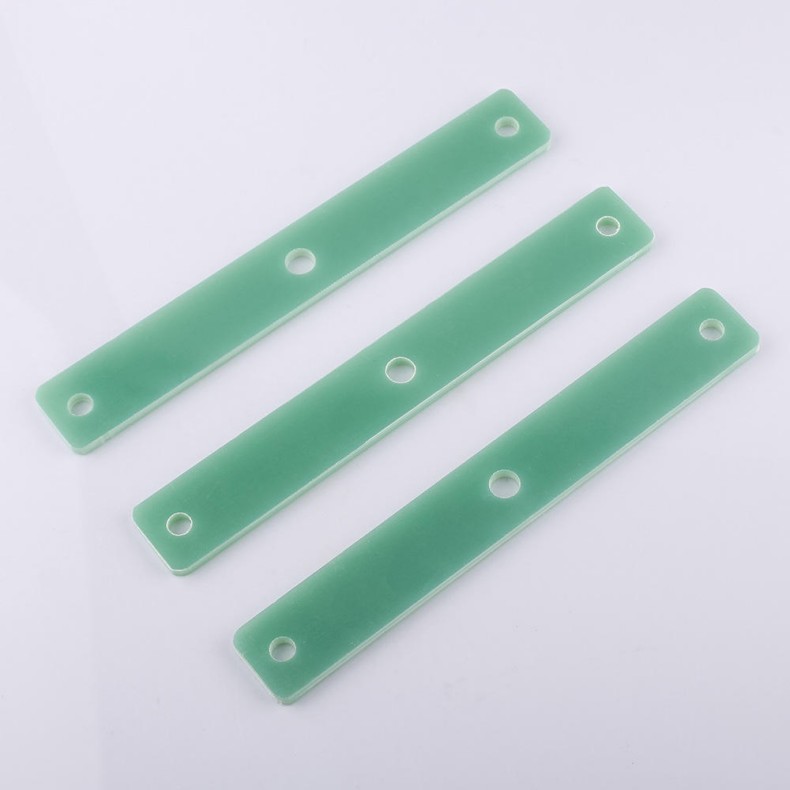

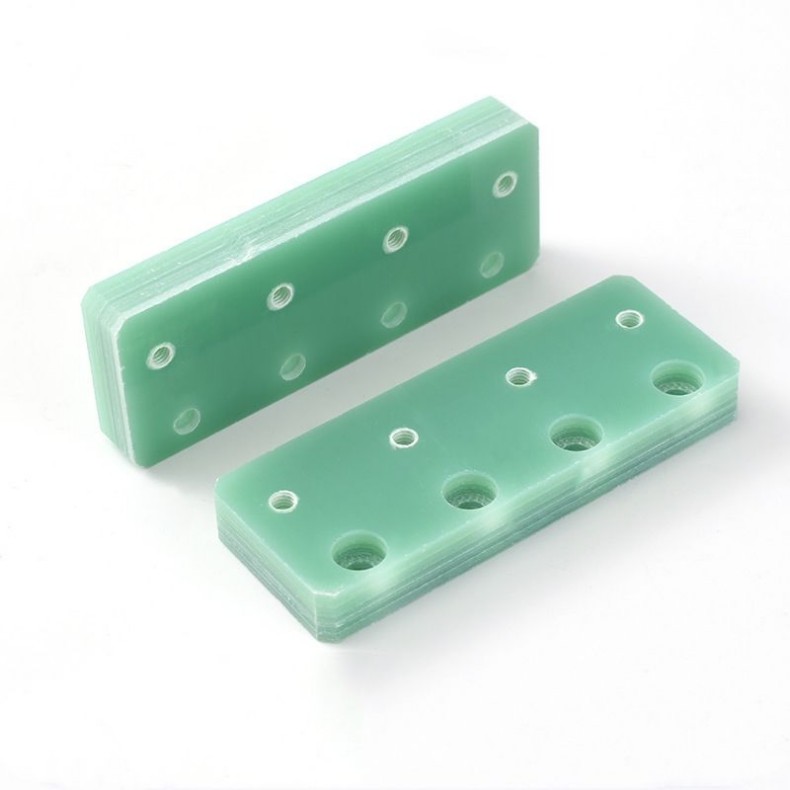

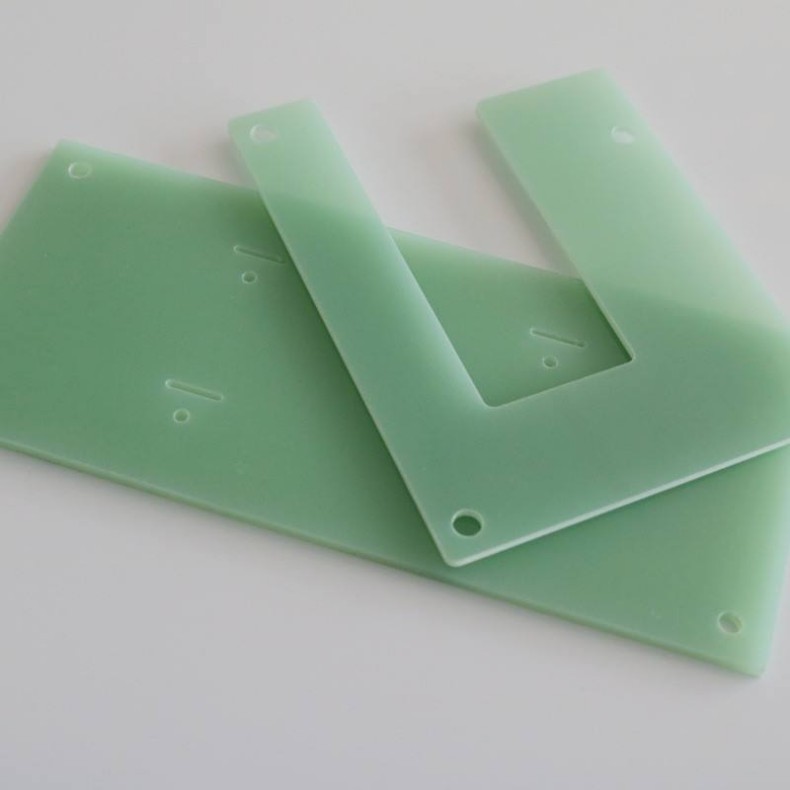

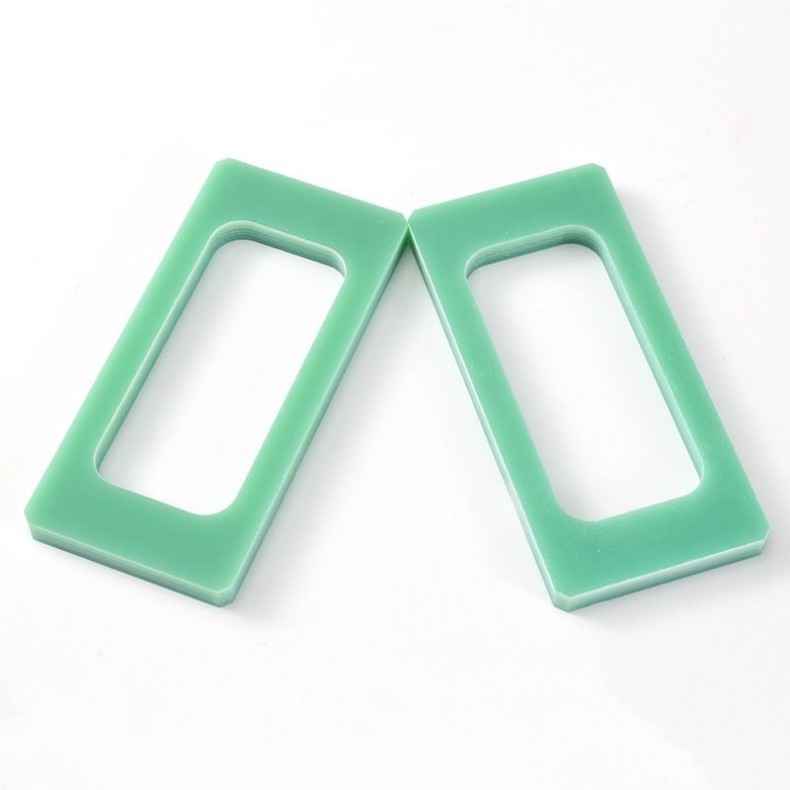

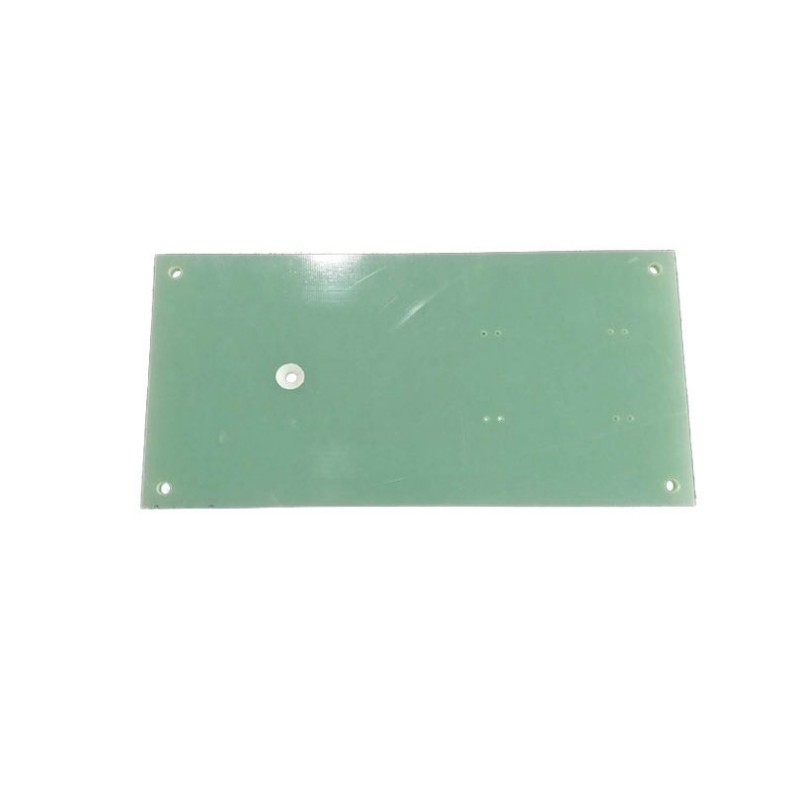

FR4 epoxy board is pressed by imported epoxy fiberglass resin, also known as: alkali-free epoxy board, commonly known as FR4 board.HONY Plastic carries FR4 fiberglass board with color aspects of the whole board is more uniform, bright, density than ordinary epoxy board, more suitable for harsh environments. The product is made of electrical alkali-free glass fiber cloth impregnated with epoxy resin, processed by baking and hot pressing in molding die. It has high mechanical properties, dielectric properties and good machinability. Heat-resistant grade is B grade. It is suitable for use as insulating structural parts in electrical equipment, and can be used in humid environmental conditions and transformer oil.
Characteristics of imported FR-4 alkali-free board: the use of temperature between minus 60 degrees to 180 degrees, the moment can reach 200 degrees; good mechanical properties and electrical properties, high hardness, high density; good flame retardant, high insulation coefficient, good dielectric resistance, good mechanical strength and processing performance.
Technical requirements of FR-4 sheet provided by HONY Plastic:
Appearance: the appearance of the sheet is uniform in color, no color difference color spot, no compression resistance, no impurities, allowed to have uneven color that does not interfere with the use, scuffing, slight unevenness, etc., the tolerance allowable range of plus or minus 0.03mm for thin boards, 0.3mm for thick boards.
The molecular structure of FR4 epoxy resin is characterized by the presence of active epoxy groups in the molecular chain, which can be located at the end of the molecular chain, in the middle or in the ring structure. As the molecular structure contains active epoxy groups, they can be crosslinked with many types of curing agents and form insoluble, non-melting polymers with a three-way network structure.

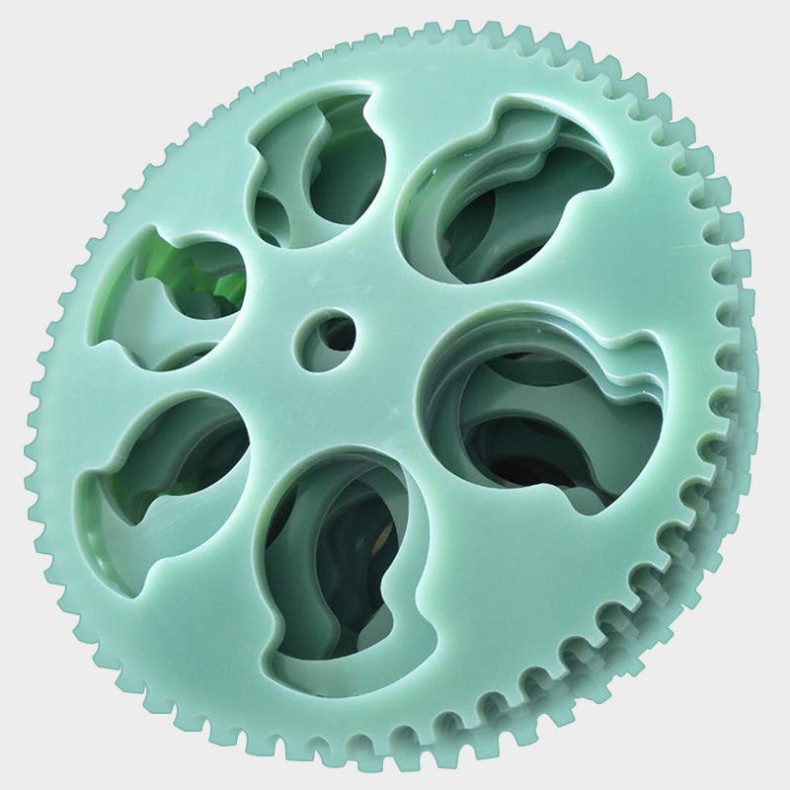

The application of water green FR4 fiberglass board: electronic and electrical engineering, insulating structural parts in electrical equipment, mechanical spare parts, electrical gaskets, gears, transmission shafts, mechanical parts, etc., insulating fasteners and so on.
Specifications of FR-4 materials offered by HONY Plastic:
Plate (0.1-50mm thick)*1020*1220mm
Rod (15-200mm diameter)*1000mm long
Packing of material: paper, woven bag, bubble wrap and other packing materials, weight per piece: 10KG (or pack according to customer's requirement) If it is fragile/deformable material, it is bubble wrap with wooden frame;
FR4 glass fiber board characteristics and uses in detail
FR4 glass fiber board, commonly used in high-performance electronic insulation materials, has the following characteristics:
Stable electrical insulation performance: it can provide reliable electrical insulation to ensure the safe operation of electronic equipment.
High flatness: smooth surface, no pits, thickness tolerance in accordance with the standard, suitable for precision processing.
Widely used: suitable for FPC reinforcement boards, high temperature resistant boards for over-tinning ovens, carbon diaphragm sheets, precision vernier wheels, PCB test racks and other high-performance electronic insulation products.
Electrical equipment insulation: used for electrical equipment insulation partitions, insulation pads, transformer insulation parts, motor insulation parts and so on.
Electronic switch insulation: insulating boards for electronic switches to ensure the reliability and safety of the switches.
In addition, FR4 fiberglass board is also commonly used in soft package base, with fabric, leather and other materials, to make beautiful wall and ceiling decoration. It is characterized by sound absorption, sound insulation, heat insulation, environmental protection and flame retardant, etc. It is widely used in a variety of decorative and construction projects.
