Metal Expansion Plug Anchor

High performance metal expansion plugs anchor. An all steel fixing for light weight blocks such as aerated and light aggregate blocks. As they are manufactured entirely from steel they are ideal for fixing in areas such as fire escape routes where regulations restrict the use of plastic anchors or plugs.

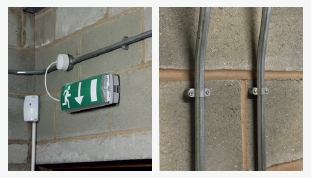

Metal expansion plugs Anchor is particularly suitable for safely fixing gas and water pipes, as well as cable and pipe clamps to solid and hollow building materials as well as in solid gypsum panels.

The metal expansion Plug anchor is especially suited to applications in installation technology.

The external teeth expand in the building material, thus ensuring a high load-bearing capacity.

Metal expansion plugs Anchor is suitable for wood and chipboard screws, and makes it possible to guide the screw securely. This offers increased installation safety, and enables a broad range of applications.

Metal expansion plugs Anchor application:

Application of metal expansion plug anchor

1. Concrete

2. Vertically perforated brick

3. Hollow blocks made from lightweight concrete

4. Cavity floor slabs made from bricks and concrete

5. Perforated sand-lime brick

6. Solid sand-lime brick

7. Natural stone with dense structure

8. Aerated concrete

9. Solid brick made from lightweight concrete

10. Solid panel made from gypsum

Note: (Drill hole size is relative to the compressive strength of the substrate. When fixing into concrete, the below drill hole sizes should be increased to prevent damage to the plug during installation).

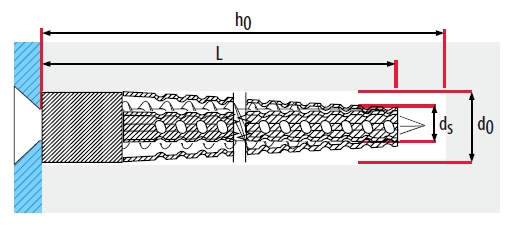

Metal expansion plugs Anchor Specification:

Product Code	Plug Length L (mm)	Drill Hole d0 (mm)	Min. Drill Hole Depth h0 (mm)	Screw Dia. ds (mm)
632MEP	32	6	37.0	4.5~5.0
838MEP	38	8	44.0	5.0~6.0
860MEP	60	8	66.0	5.0~6.0
1030MEP	60	10	68.0	6.0~8.0

*all figures states are approximate and for reference only. Sometimes beneficial to reduce drill size in materials with a low compressive strength.

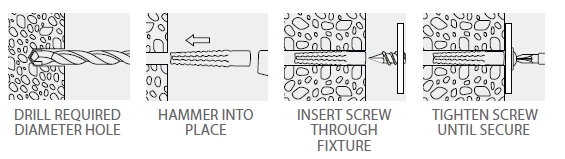

How to install the Metal Expansion Plug Anchor?

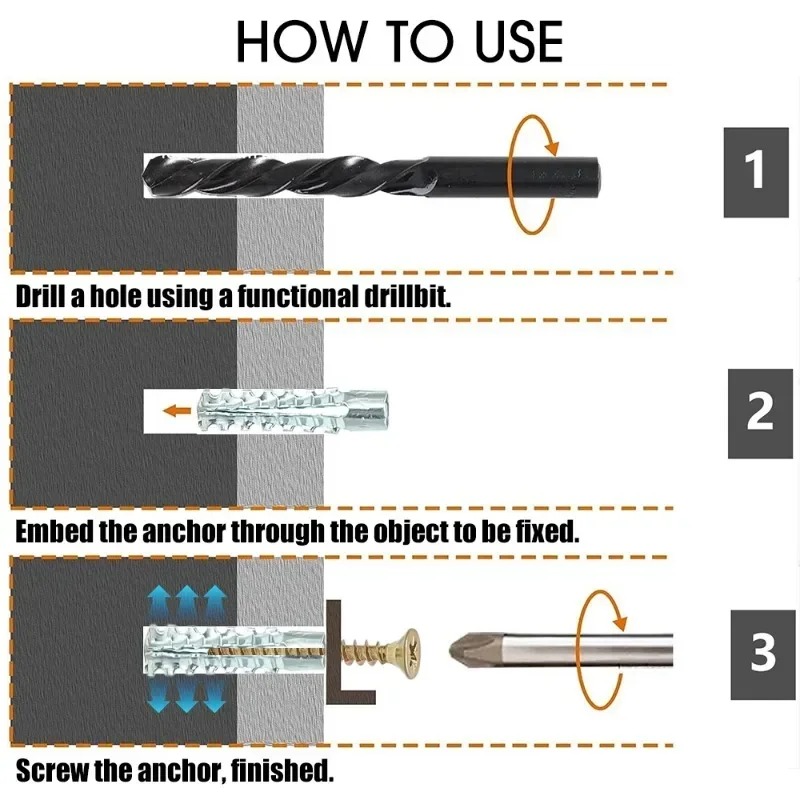

Metal Expansion Plugs Anchor Fixing Installation Guidelines

1. Step one: Drill a hole using a functional drillbit.

2. Step two: Embed the anchor through the object to be fixed.

3. Step three: Screw the anchor,finished.

Buy Metal Expansion Plug Anchor from Yokelink

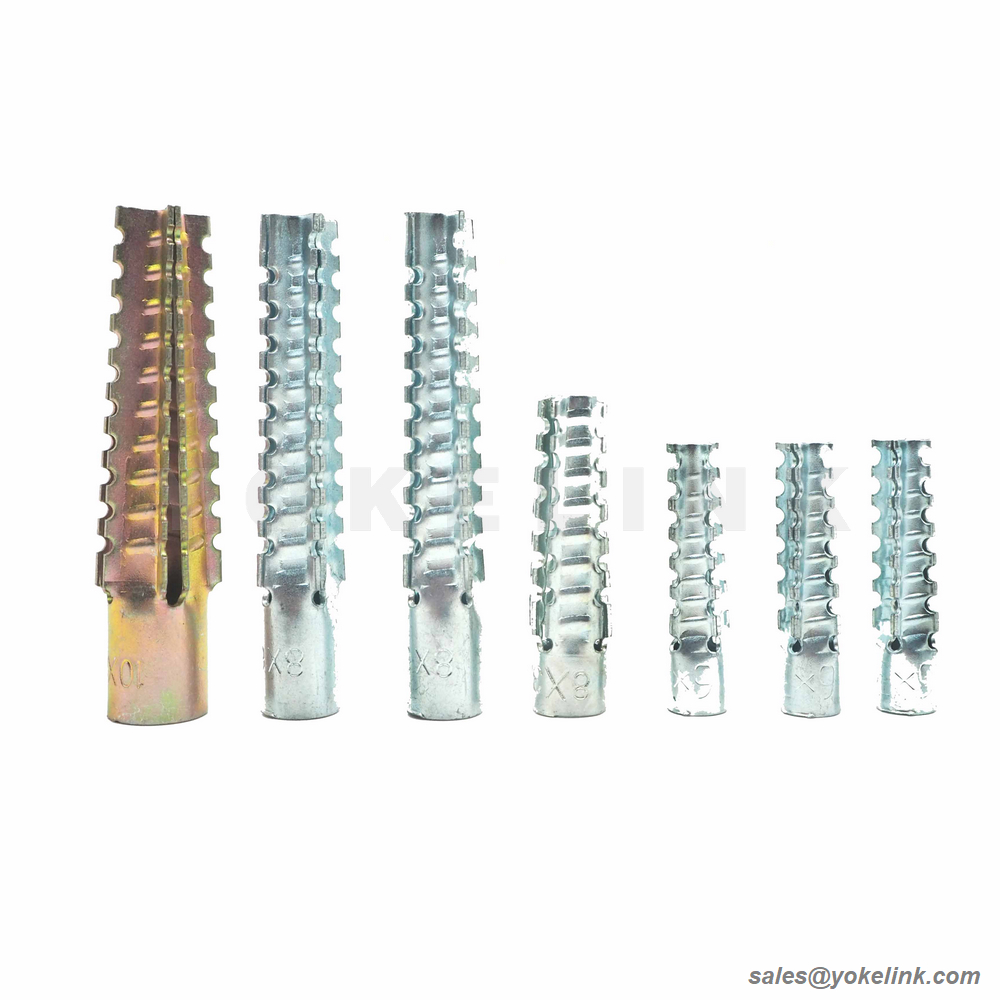

Metal Expansion Plug Anchor Screw Fixing (3)

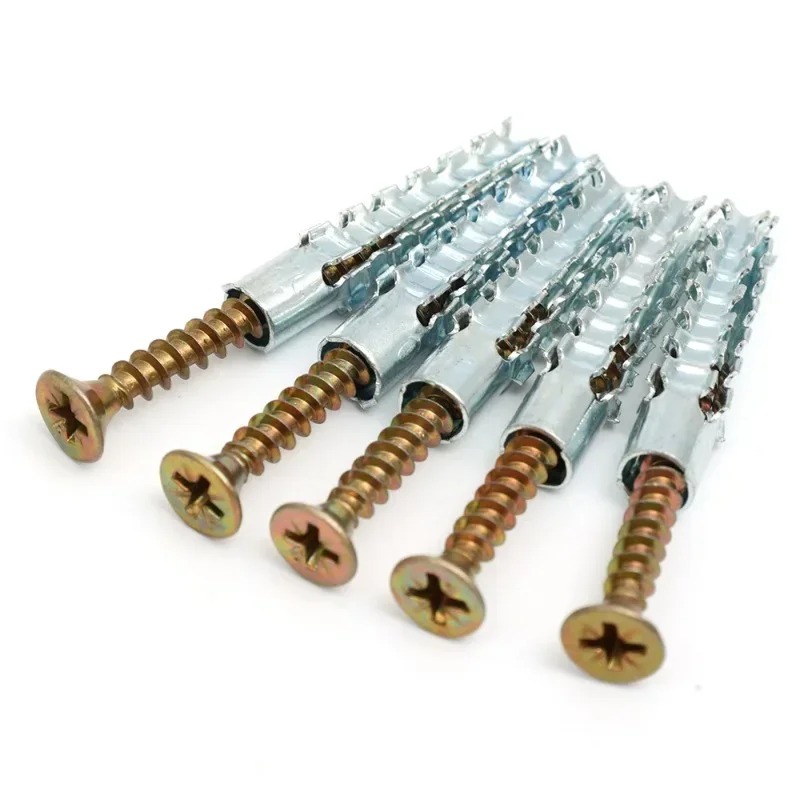

Metal Expansion Plug Anchor Screw Fixing (6)

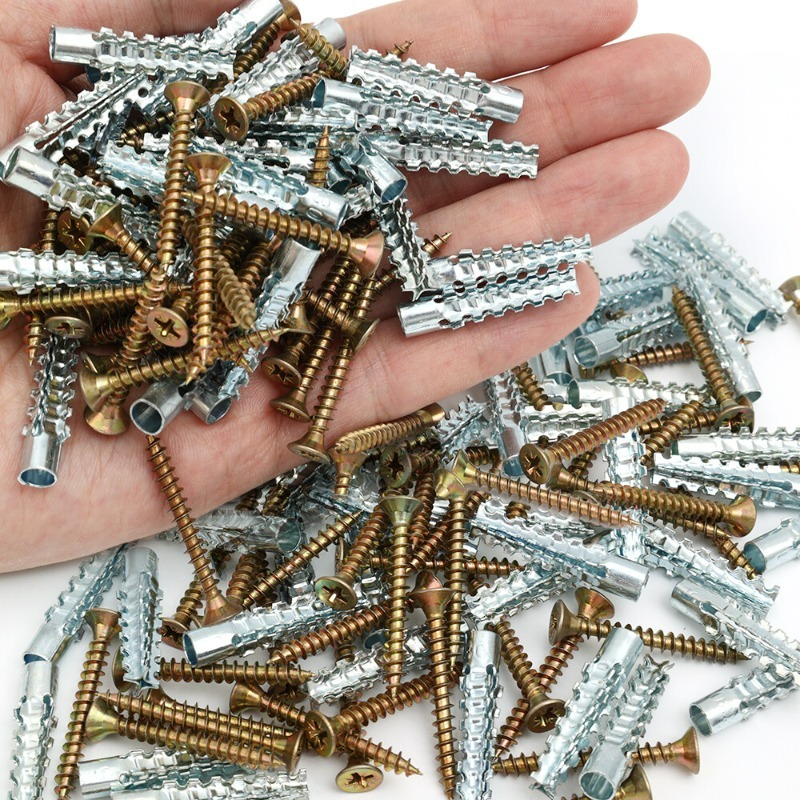

Metal Expansion Plug Anchor Screw Fixing

Yokelink Metal Expansion Plug Anchors are made of advanced carbon steel, which is sturdy and durable. Its excellent structure ensures that they can withstand the worst conditions, and compared to traditional screws, they have a longer service life and will not loosen over time.

With a unique expansion design, our rivets can easily penetrate walls, wood, and other materials. The metal structure ensures durability and strength, making it suitable for various applications.

Whether you are working on furniture, cabinets, doors, windows, concrete, or wood, our expansion rivets are the perfect fastening solution.
