Product Introduction

Plate Brief Information.

Design temperature:180°C;

Evaporation material outletsize: DN350,DN500,DN700；

Plate material: ordinary austeniticstainlesssteelsuperausteniticstainless steel, titanium, titanium palladiumalloy, nickelnickel-basedalloy，atleast 15kinds of metalmaterials

Product Application and Features

It is suitable for electrolyte, lye, sugar juice, fruit sparse, gelatin, wast water and various chemical process medium.

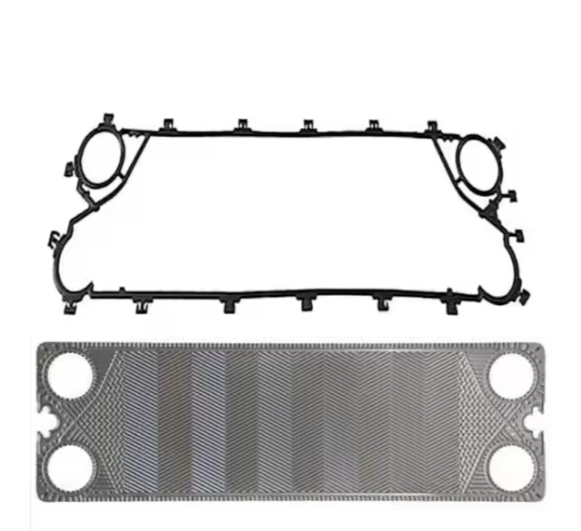

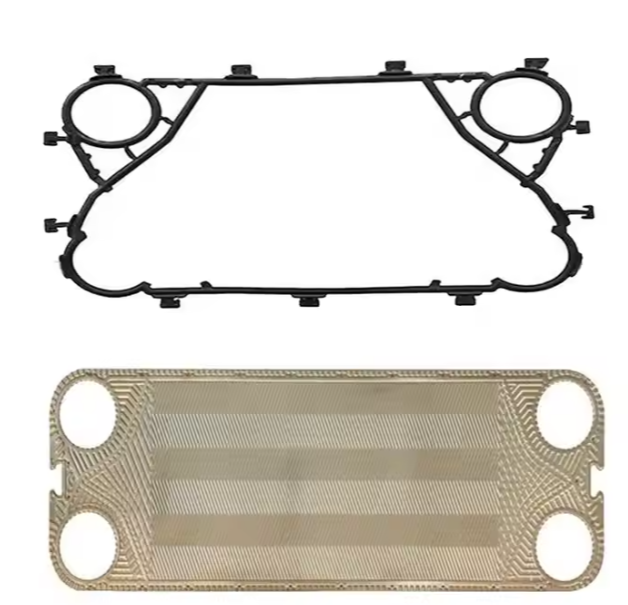

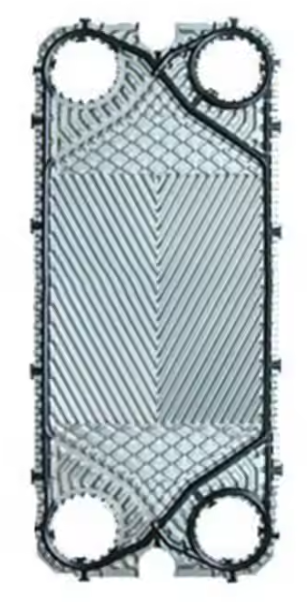

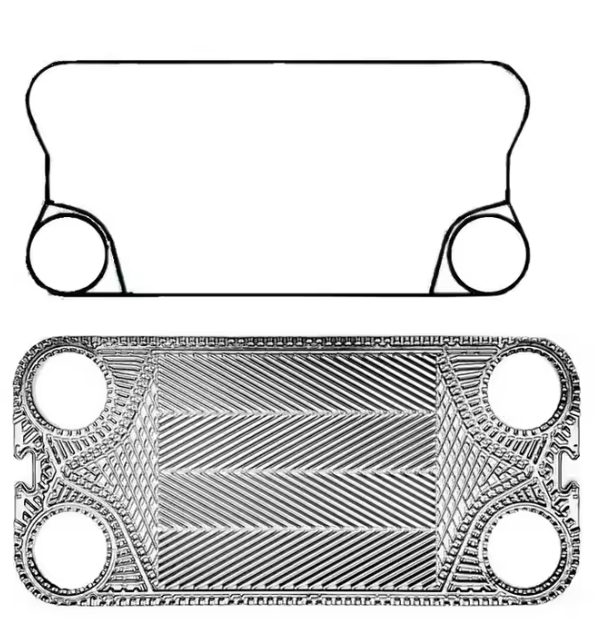

Display of Applicable Models

Product Manufacturing Process

1. Design and Material Selection

Define specifications such as heat transfer efficiency, pressure, temperature, and fluid properties.

Select materials, typically stainless steel or other corrosion-resistant alloys, based on the application's requirements.

2. Plate Production

Sheet Metal Cutting: Metal sheets are cut to the required size.

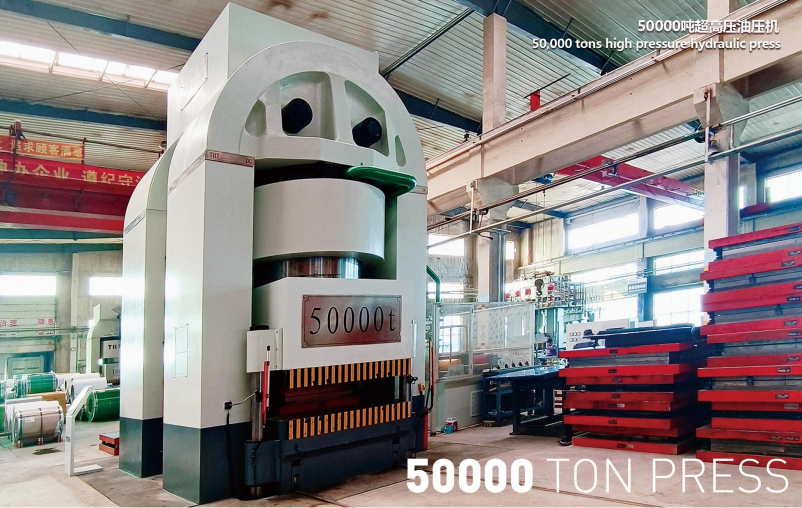

Plate Pressing: Plates are pressed into the desired corrugated patterns using hydraulic presses. These patterns maximize surface area and enhance turbulence for better heat transfer.

Edge Trimming: Excess material is trimmed to ensure precise dimensions.

3. Gasket Production and Installation

Gaskets are molded or cut from materials like rubber or synthetic compounds.

Gaskets are then fitted onto the plates to create sealed channels for fluids, preventing leakage.

4. Frame Fabrication

Fabricate the frame, which includes fixed and movable plates, tie bars, and bolts.

The frame provides structural support and ensures the plates are securely clamped together.

5. Assembly

Align the plates and gaskets within the frame in the correct sequence (e.g., alternating hot and cold fluid channels).

Tighten the frame to apply uniform pressure, ensuring a tight seal.

6. Testing and Quality Control

Leakage Test: Conduct hydraulic or pneumatic tests to check for leaks in the assembled unit.

Performance Test: Validate thermal efficiency and flow capacity.

Visual Inspection: Check for defects in plates, gaskets, and overall assembly.

7. Cleaning and Packaging

Clean the assembled heat exchanger to remove any residue or debris from the manufacturing process.

Apply protective coatings or coverings to prevent damage during transportation and storage.

8. Shipping

Pack the finished plate heat exchanger securely and prepare it for delivery to the customer.

FAQ

1. What is a heat exchanger?

A heat exchanger is a device used to transfer heat from one medium to another. It is commonly used for heating or cooling purposes. Common types include plate heat exchangers, shell-and-tube heat exchangers, and finned-tube heat exchangers.

2. What type of heat exchanger do we need?

This depends on your application requirements, such as:

The medium being processed (gas, liquid, steam, etc.)
Operating temperature and pressure range
Desired heat transfer efficiency
Space limitations for installation

Our engineering team can provide professional advice based on your specific needs.

3. How do I choose the right heat exchanger model?

Selecting a heat exchanger requires consideration of the following parameters:

Heat load (required heat transfer rate)
Inlet and outlet temperatures
Flow rate and pressure
Environmental operating conditions

You can provide detailed application data, and our technical team will recommend the appropriate model for you.
