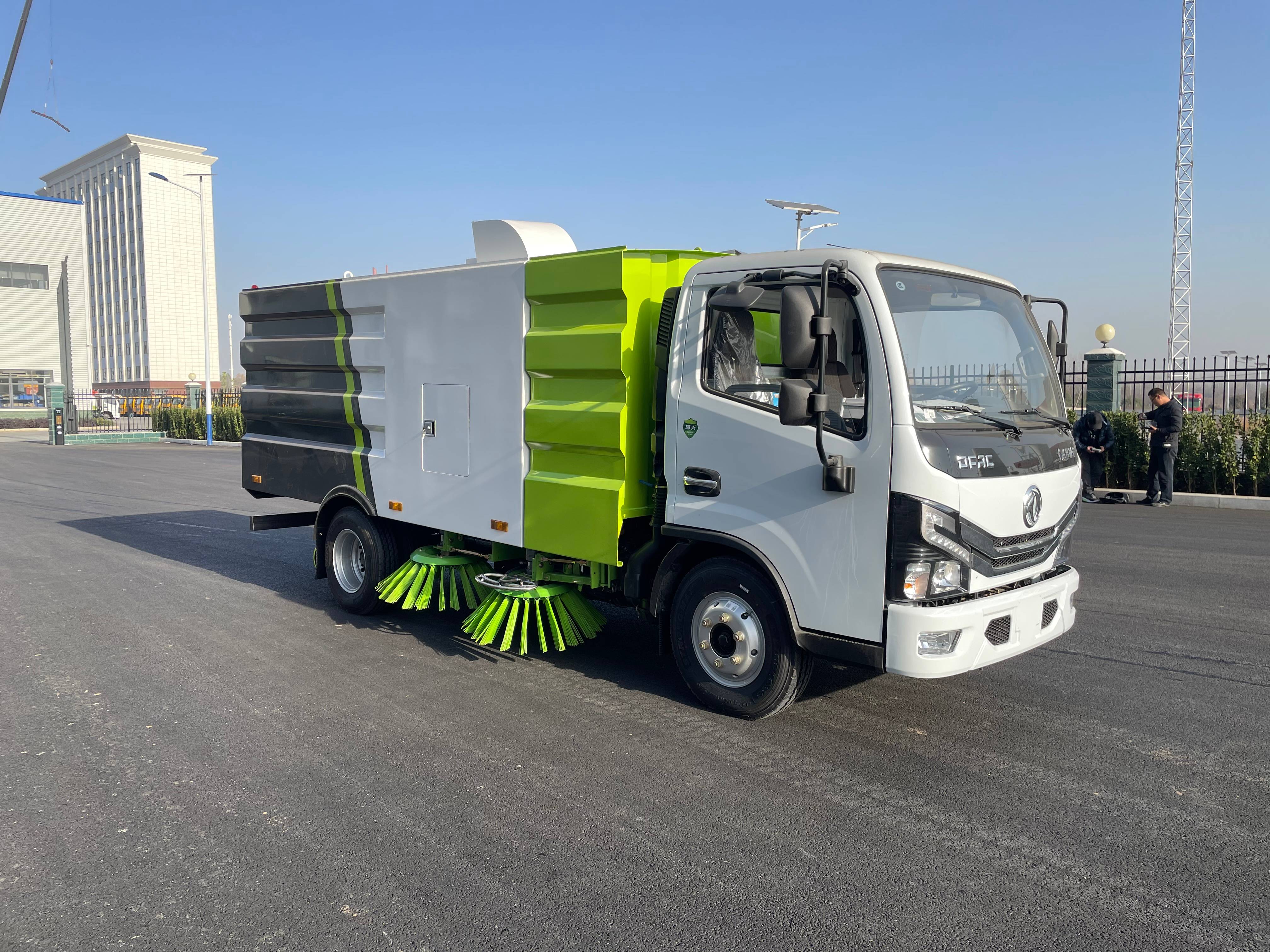

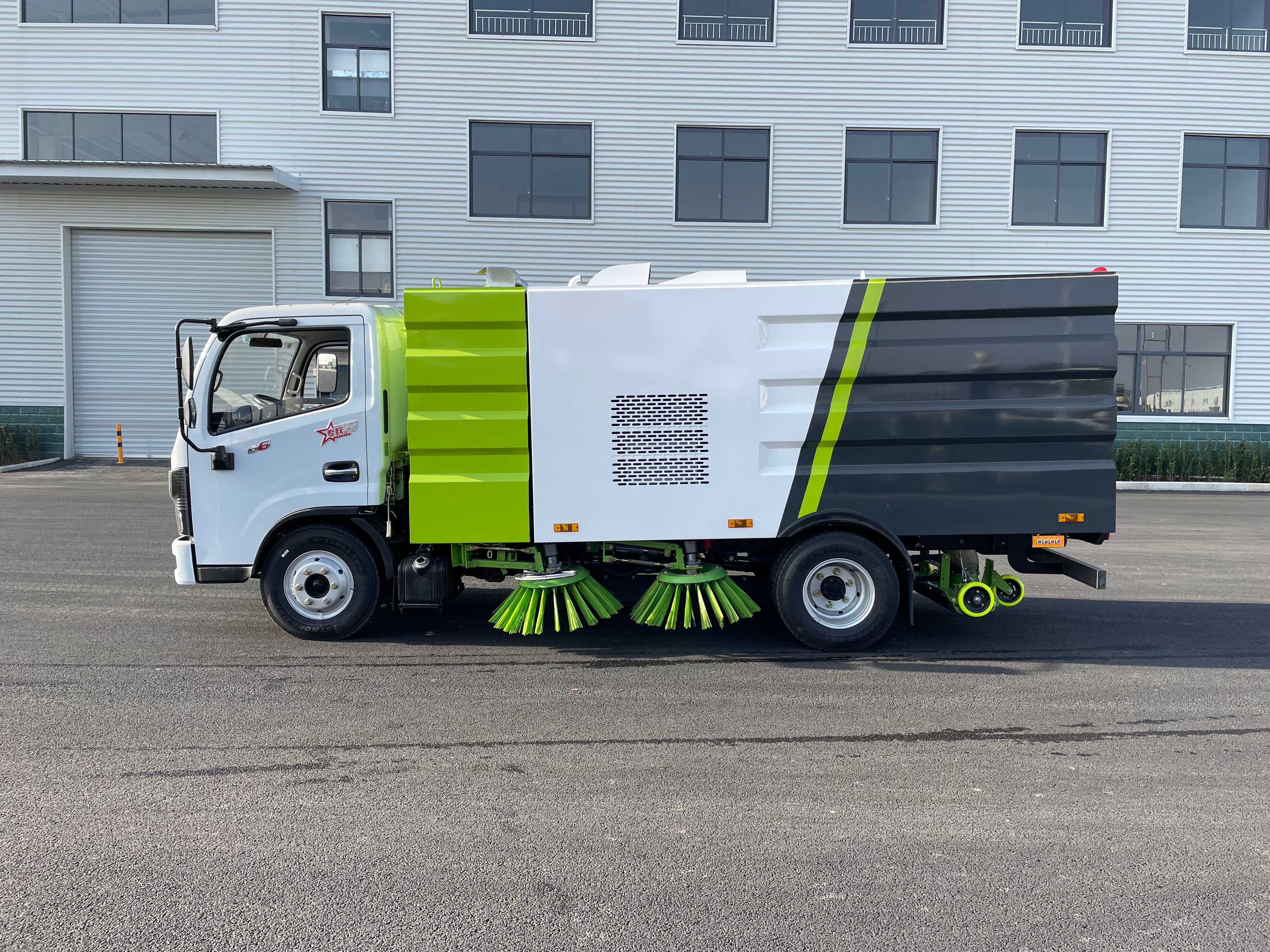

Dongfeng road sweeper truck
4 month ago
Product details
1. Road Sweeper Truck Description
A road sweeper truck is a specialized vehicle designed to clean streets, highways, and other road surfaces by removing dirt, debris, and litter. It typically consists of several key components that work together to ensure effective street cleaning. Here’s a description of its major features,let's see its crucial role in maintaining clean,safe,and environmentally friendly urban and rural spaces:
| 1 | Sweeper Type | truck mounted road sweeper truck,4-cylinder diesel engine |  |
| 2 | Condition | Brand New |  |
| 3 | Compliance Standard | Euro 6 | |
| 4 | No of mechanical sweeping machine | 4pcs |  |
| 5 | Minimum sweeping width | 3200mm | |
| 6 | Waste Container Volume | 4cbm | |
| 7 | Dust Control | by water sprinkling nozzles on side brushes |  |
| 8 | Water Tank | 1500liters with cabin-controlled water pump | |
| 9 | Sweeping speed and travel speed | 3-25km.h & 85km/h | |
| 10 | Engine rating | 115hp | |
| 11 | Conveyor | Heavy duty construction and collect all types of material with the help of brooms |
  |
| 12 | Brushes |
side brush/main brush:900mm
suction diameter:200mm
sweeping width:3200mm
|
 |
| 13 | Hopper dumping | rear dumping 45 degree |  |
| 14 | Hydraulic system/controls | hydraulic |  |
| 15 | Control Panel | in cabin control,English version |  |
Key Components:
1. Sweeping Mechanism
The Sweeper road truck is equipped with four side rotating brushes that agitate and sweep debris off the road. These brushes cans be adjusted for different angles and speeds,depending on the cleaning requirements.
2.Vacuum System
A powerful vacuum system is used to suck up the debris and dust lifted by the brushes. The debris is then stored in a large hopper or collection bin on the Dongfeng sweeper truck.
3.Hopper
The hopper is a large container ,with a capacity of 4cbm,where the debris is collected. Some models have a hydraulic system to tilt and dump the contents into a larger disposal container or a landfill.
4.Water Spraying System
To minimize dust,a water spraying system is employed with this Dongfeng road sweeper truck. It wets the road surface before and during sweeping,reducing airborne dust and helping the brushes pick up finer particles.
5.Driver's cab
The Dongfeng sweeper truck is driven by a cab located at the front of the vehicle,where the operator can control the sweeping mechanism,water spraying and other functions.
6.Engine and power system
The Dongfeng sweeper truck has a delicated engine or a PTO(power take-off) system that powers the sweeping and vacuum components. In our sweeper truck models,the sweeper components are powered by the truck's primary engine.
Types of Road Sweeper Truck
1. Mechanical Sweepers
These sweepers rely primarily on rotating brushes to move debris into a collection area. They are often used for general street cleaning and are relatively simple in design
2. Vacuum Sweepers
These are equipped with a strong vacuum system that can lift and collect debris directly into the hopper without relying as much on mechanical brushes.Vacuum sweepers are often used for more thorough cleaning or when dealing with finer dust.
3.Combination Sweepers
These combine both mechanical brushing and vacuum systems for a more comprehensive cleaning performance,often seen in urben areas or on highways.
Applications
1. Urban street cleaning: The Dongfeng road sweeper truck is used extensively in cities to keep roads free from dirt,leaves, and other debris.
2.Highway Maintenance: The sweeper road truk helps maintain cleanliness on highways,often clearing debris,sand,or gravel left behind by traffic or weather conditions.
3.Airport Runways and Packing Lots: Special road sweeper are sometimes used to maintain cleanliness on runways,taxiways, and large parking areas.
