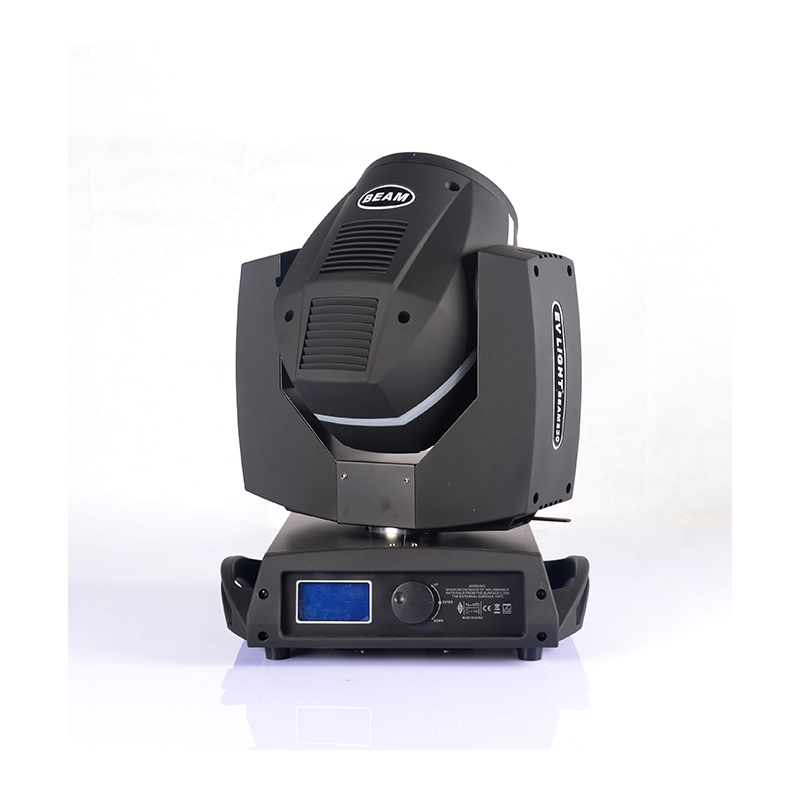

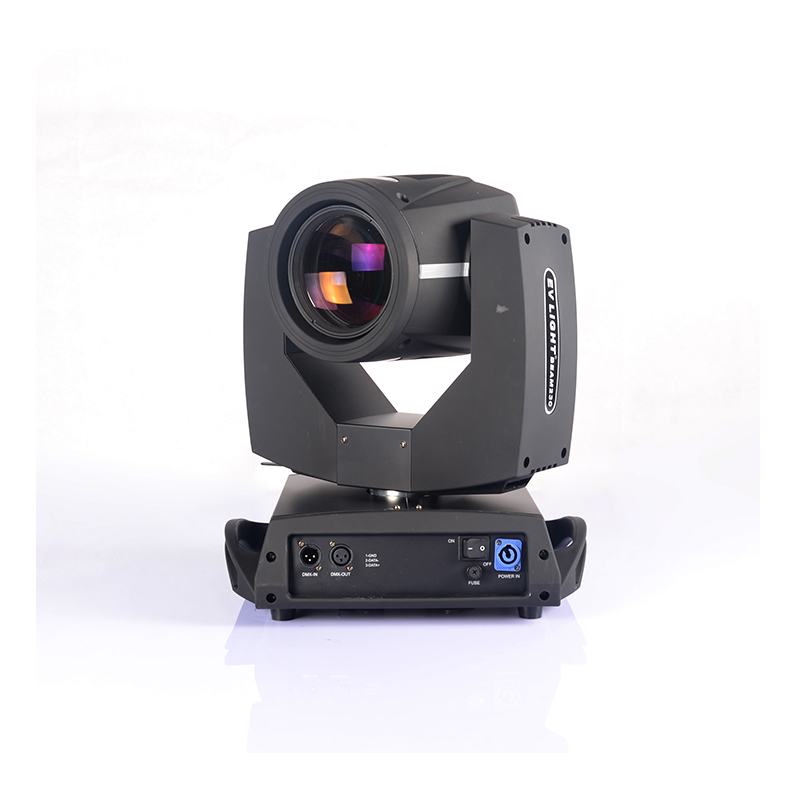

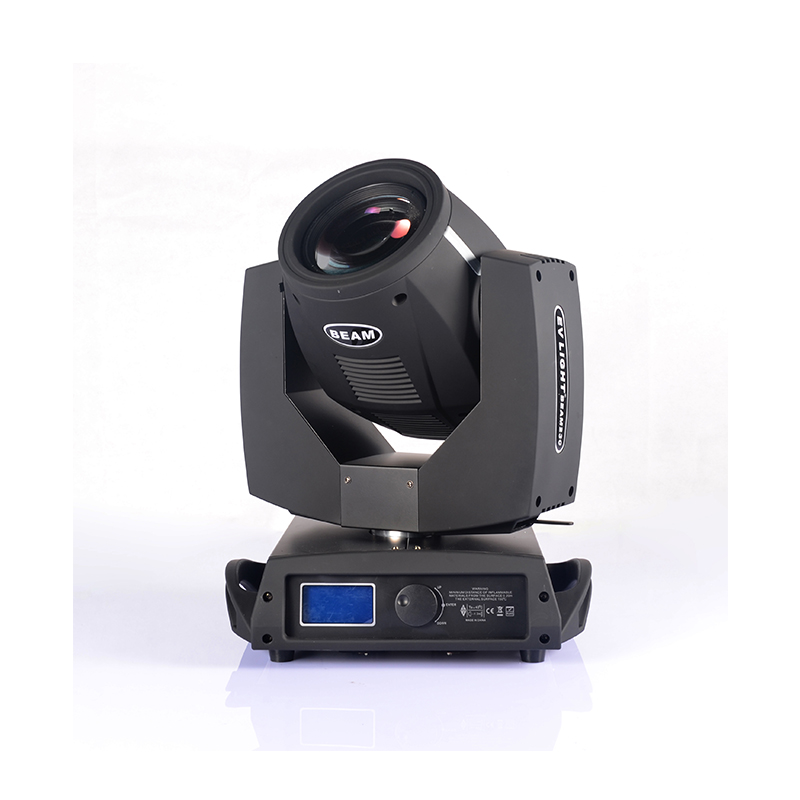

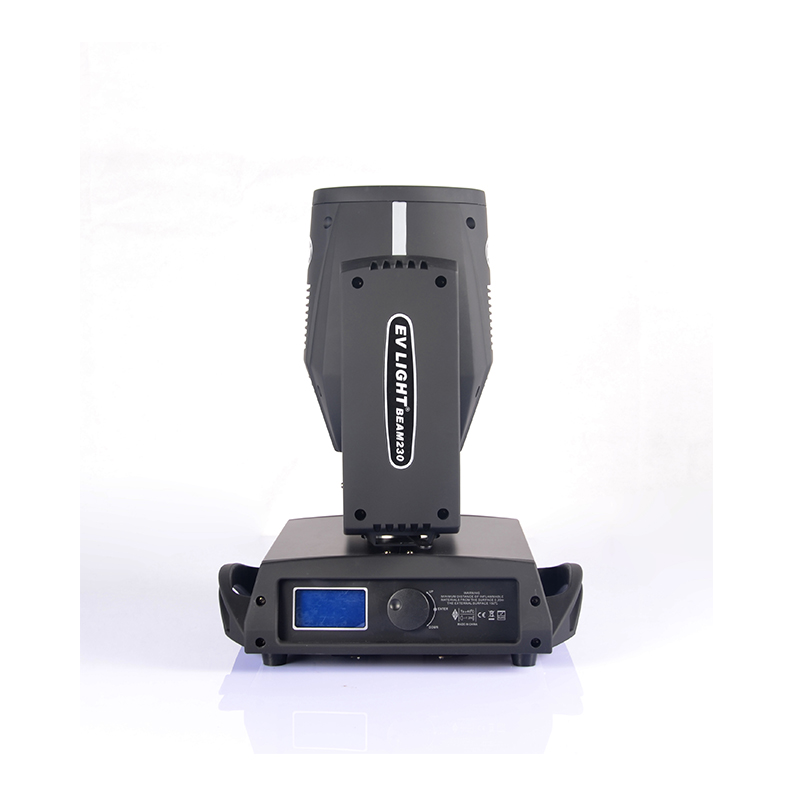

BEAM230 is a 230W OSRAM 7R lamp moving head beam LED light with an believable brightness. Weighing just 17.5 kg, it produces a perfectly parallel, laser-like beam with an incredible output .It's a popular moving head beam light model which offers 14 different colors+1white and 17 gobos+open, allowing you to change the shape of the beam and create an amazing mid-air effects. Furthermore,With its light weight, it is suitable to be putted in anywhere – on trusses at live and TV events, on stage, in showrooms,nightclubs or conference rooms.
Power supply: 100-240VAC / 50-60HZ
Rated Power: 500W
Source
Lamp: OSRAM 230W 7R
Color temperature: 8000K
Average Lifespan: 2000H
Parameter
Color: 14 color + blank

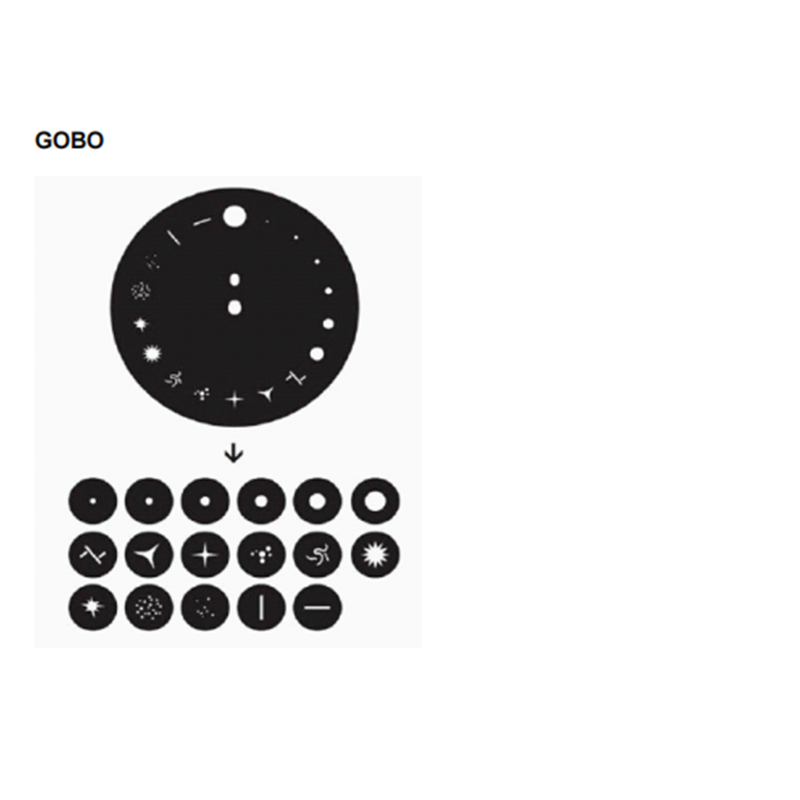

Gobo: 17 fixed gobo + blank
Prism: rotation 8-face prism, Bilateral rotation,with zoom
Lens: high precision optical lens
Dimmer: 0-100% linear dimmer
Strobe: 1-12 times/s double strobe
Display: Touch screen
Motor Quantity: 11pcs Super-Silent Motor, 16 bit drive
Control Mode: Auto / Sound/ DMX / Master-slave
DMX: 16 CH
Class of protection: IP20
Movement range
Pan/Tilt :
X axis 540° Electric correction
Y axis 270° Electric correction
with auto-correction function
speed adjustment
Scanning speed：X axis - 5 s, Y axis - 3 s
Beam angle: 8° X / Y axis
Parrallel beam: 0-3.8°
Function
Macro functions : Reset/ lamp on or off can be controlled by controller
Other functions
● Thermal shutdown circuit
● Over-current Protection Circuit
● Excellent ventilation and cooling effect by vertical axis fan
● Lamp usage time display
● Built-in error analyzer
● Input signal isolating protection
Pack Size: 465*380*550mm
N.W./G.W.: 17.5Kg/21Kg
1.Q: What is the delivery time if order confirmed?
A:If sample order, normally we have in stock. If big order quantity, it will take about 20-25 days.
2.Q:Do your products have CE/ROHS certificate?
A:Yes, we can offer the CE/ROHS certificated for you as to your requirements.
3.Q:What about the warranty? How can i do if the lights are broken?
A:We offer 1 year warranty. If the lights get broken during the shipment, please send us the picture or video. We will confirm it and send suitable parts to you as soon as possible.
4.Q:What's the shiping method,shipping time?
A:Our products could be shipped by Sea, by Air, and by Express.which methods to be used is based on the weight and size of the package, and with consideration of customer's requirements. by sea:20-40days; by air:5-10days ;by express:3-6days
5.Q:What's the Payment method?
A:T/T, Western Union, L/C.
