DS-2200 Automatic detwisting slitting scouring padding squeezing machine

DS-Automatic Detwisting Slitting Scouring Padding Machine

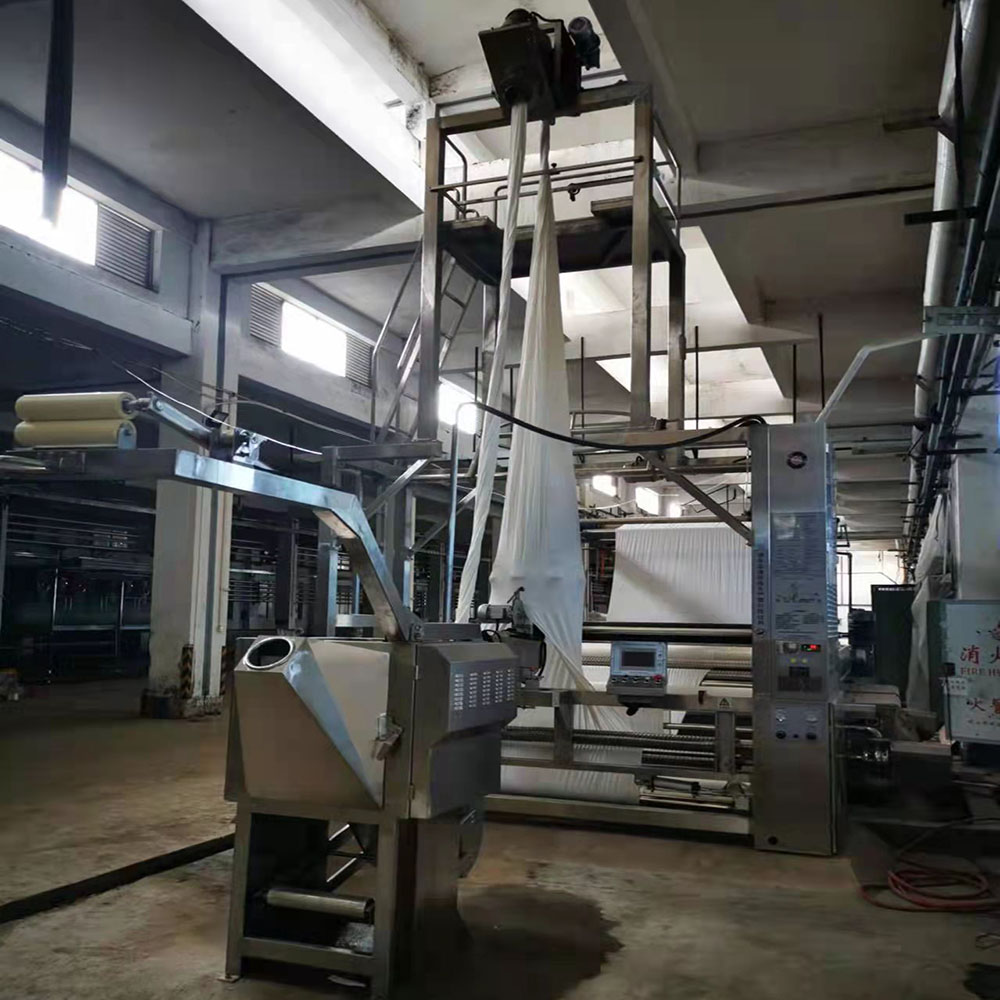

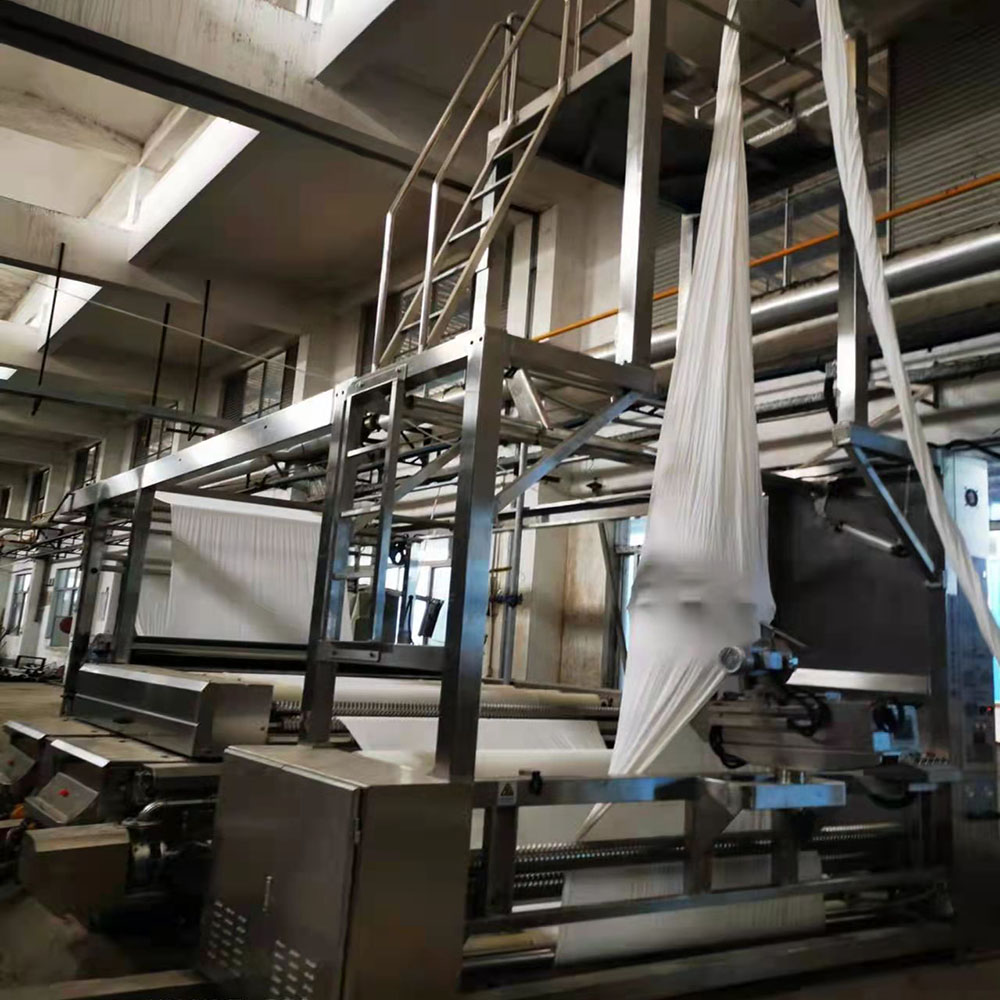

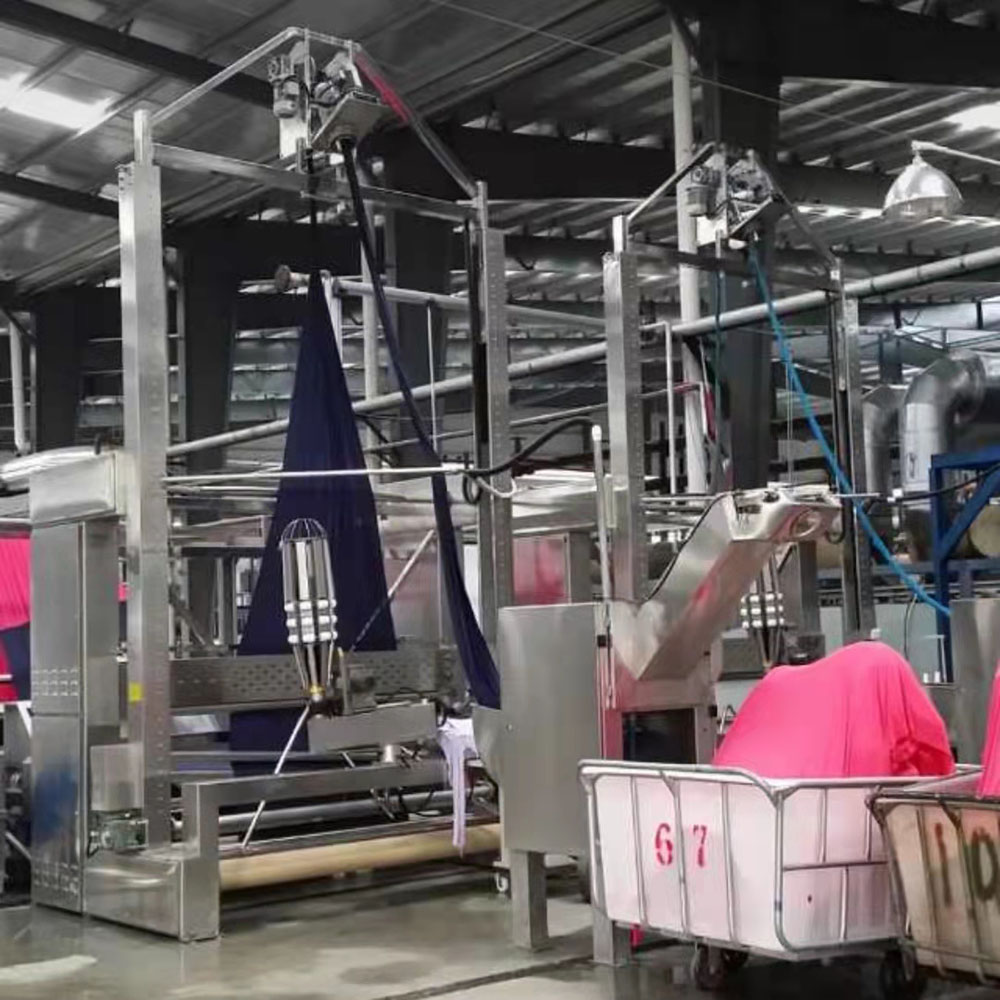

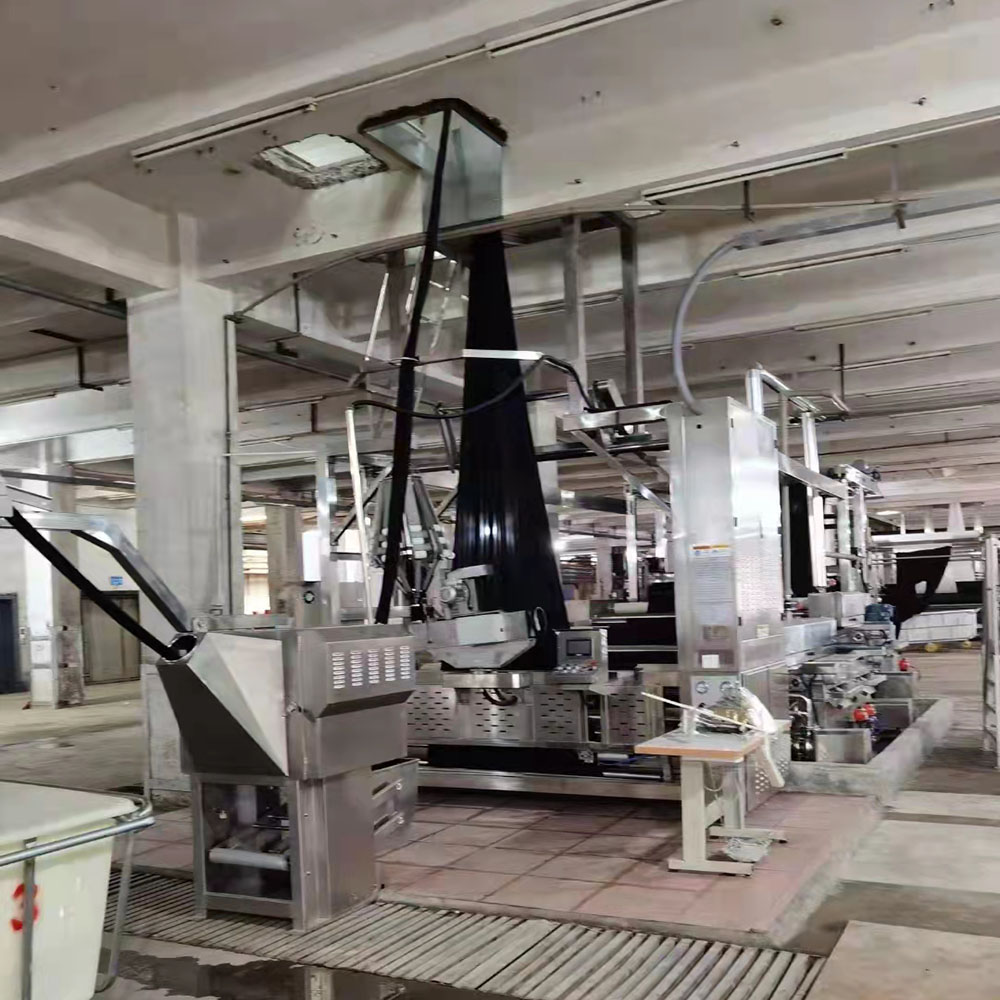

Product images

A.Technical Parameters

B.Small padder

1.  Ф205*300mm small rollers   2 pcs

2. Small padder drive: 1.5 KW reducer (with frequency conversion) driven by a chain  1 set

3 .Ф80*50 cylinder 2 pcs

4 .No cloth and automatic stop device

C. Rope releasing mechanism 1 batch

1. Waterproof -untwisting head

2 .Main drive: 1.5 KW reducer (with frequency conversion) driven by a pulley  1 set

3 .Detector: Proportional control

4. Feeding mechanism: 0.75KW deceleration with frequency conversion 1 group

5. Cloth beater  1 set

6. Cloth beating wheel -0.37KW motor

D. Auto centering and unfolding machine (infrared)     1 batch

1. Unfolding roller: diameter: Ф89mm, made of 3 stainless steel

2. Electric eye device (infrared) (waterproof device) 1 set

3 Centering motor: 0.75KW+0.55KW 1 group

4 Main drive: 2.2KW motor with frequency converter  1 set

5 Ф185 cloth feeding rubber roller, driven by chain

E. Auto scouring filter device   1 set

1 .2 chamber Scouring box 1 set

2. Filter cabinet 2 pcs

3. Ф100*2400mm stainless steel cloth guide roller 14 pcs

4. Ф89*2400mm wire rollers 4 pcs

5. 35*35mm spray pipe 8 pcs

6. Main drive motor with frequency conversion   1.5KW

7. Thread roller motor 0.75KW 1 batch

8. Pump motor 4KW 2 sets

9. Motor of filter cabinet    0.37KW

F.Squeezing device  1 set

1. Ф300*2400mm rubber roller    2 pcs

2. Ф89*2400mm thread rollers    2 pcs

3 . Ф25mm cleaning tube   1 pcs

4 .Main motor (11 KW) with frequency conversion control 1 batch

5. Thread roller motor 0.75KW

G. Cloth-exit & swing device  1set

1. Cloth-exit rubber roller Ф185   1 pcs

2 Power 0.75KW (reduction motor with frequency conversion) 1 set

3. Cloth swing device 1 set

H. Semi-automatic cloth cutting head 1 set

1. 304 stainless steel cutter  1 set

2. Cylinder opener: Ф320～800mm, cutting width: 1000～2500mm 1 piece

3. Range: 1～8mm of Photoelectric sensor 1 set

4 .Circular cutter device 1 pcs

I.Mechanism part

1.Motor

1)The small padder, detwisting main body and the cloth out drive motor are made of UNISPLENDOUR aluminum motor and wave case.

2)The driving motor of big padder adopts Hangzhou XINGDA motor with teeth breakdown reduction motor.

3)Roller extender motor-SIEMENS

2.Bearing

1)Small padder and other transmission parts- TR bearings

2)Open width alignment and guide cloth- Stainless steel bearings

3)Detwisting part-NTN bearings

4)Others-NSK bearings

5)Big padder roller – Germany FAG bearings or Japan NTN bearings

3.Roller

1)Domestic joint roller

2)Rubber-Germany Bayer hardness

3)Upper roller:85,lower:95

4.Cloth guide roller-304 Stainless steel

5.Cloth Cutter

Semi-automatic Cloth Cutter, automatic camera selection line to line, lens- Japan Panasonic

J.Electric parts

1.Inverter- INOVANCE

2.PLC and and module--INOVANCE

3.Touch screen- Taiwan Waylon

4.Switch/ button -France Schneider

5.contactor -France Schneider

6.Relay-France Schneider

7.Proximity switch- Taiwan FOTEK

8.Limiting switch -Taiwan TEND

9.Photoelectric alignment tube and controller- Domestic precision vacuum tube.

K.Pneumatic Parts

1. cylinder -AIRTAC

2. Solenoid valve- AIRTAC

3. Oil-water filter- AIRTAC

4. Rubber balloon-Joint venture OY RUBBER
