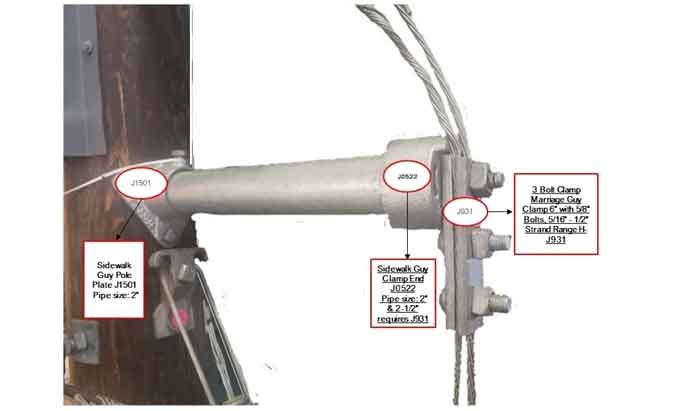

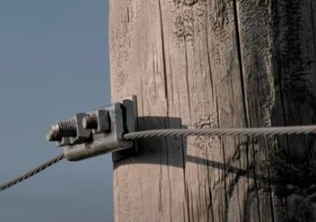

Display of different guy clamps and installation process

3 month ago

3 0 

10 year

Product details

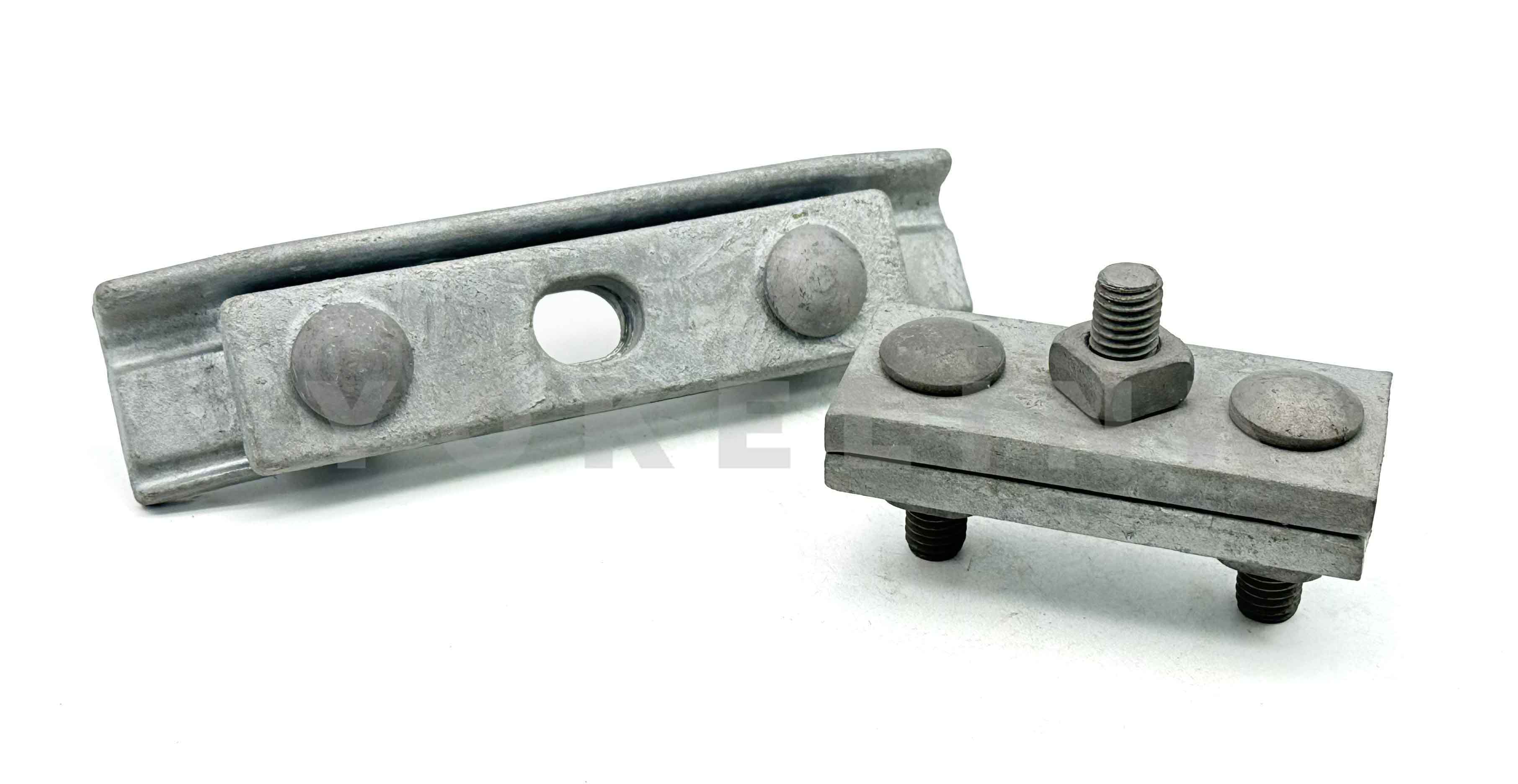

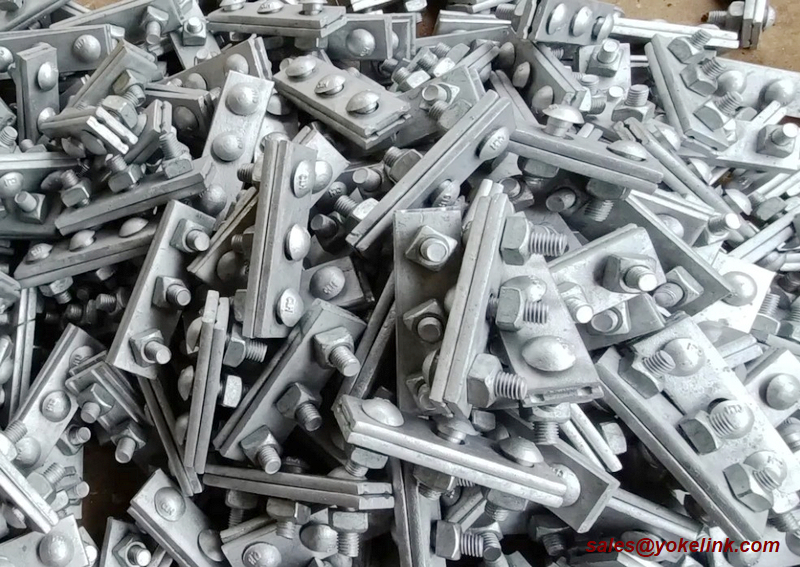

Three Bolt Guy Clamp

Yokelink Three Bolt Guy Clamp is a crucial component in various applications, especially in guy wire systems. Crafted with high - quality materials, usually robust steel, it offers exceptional durability and strength.

Yokelink clamp features three bolts, which provide a secure and reliable grip on guy wires. The design allows for easy installation, enabling quick and efficient setup. It can withstand significant tension, making it suitable for use in power line installations, radio towers, and other structures where guy wires are essential for stability.

With its precise engineering, the Three Bolt Guy Clamp ensures that the guy wire remains firmly in place, even under harsh weather conditions or high - stress situations. This helps prevent structural damage and ensures the safety of the overall setup.

Features:

Made of high-quality steel

Uniformly hot-dip galvanized to ASTM A153 standards

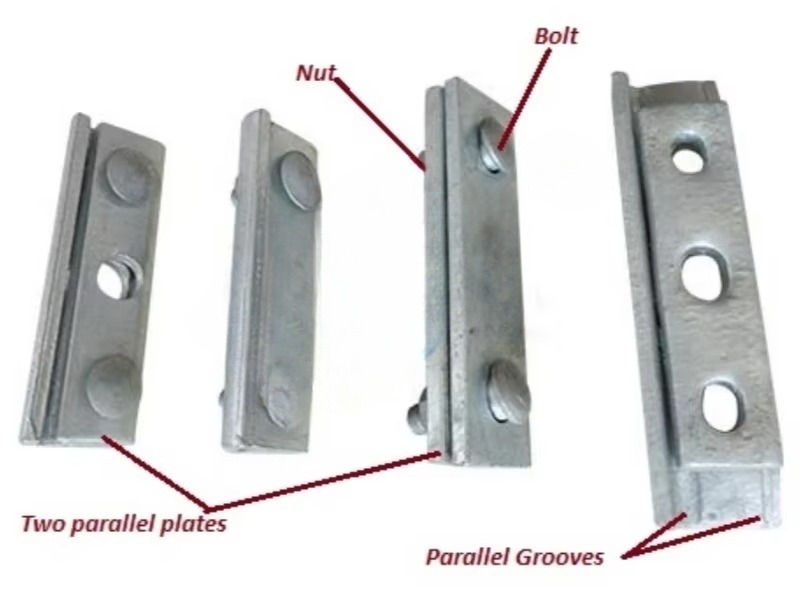

Features straight parallel grooves that won’t damage the strands

Carry the tension of overhead cable droop and protect the cable

The clamp bolt has a special shoulder that prevents the nut from turning when tightened

Working temperature is -50℃ to +60℃, excellent weather resistance

Compatible with various sizes, it is a versatile suspension clamp

Three Bolt Guy Clamp Specification

How to choose the right guy clamp?

1.Load capacity

Specification matching: Cable clamps of different specifications have different load ranges. They must strictly follow the parameter table provided by the manufacturer to make the rated load of the cable clamps match the actual pulling force.

2. Material and size

Size correspondence: The hole diameter or wire slot size of the cable clamp must accurately match the cable diameter. Too loose will cause the cable to slide and affect the fixing effect; too tight may damage the cable and reduce its strength.

3. Environmental conditions

Climate factors: In high temperature areas, the cable clamp material should be able to withstand high temperatures without softening or deformation; in cold areas, the material should be prevented from brittleness at low temperatures. For humid and salt spray environments such as coastal areas, stainless steel with good anti-corrosion properties or cable clamps with special anti-corrosion treatment should be selected.

Buy Guy Clamp from Yokelink

Yokelink guy clamp is a crucial component in various applications, especially in construction and utility work. It is designed to securely fasten guy wires, which are used to provide stability to structures like poles and towers. Usually made of high - strength metal, it can withstand significant tension. Its adjustable design allows for precise tightening, ensuring a firm hold regardless of environmental conditions. Some guy clamps also have anti - corrosion coatings, enhancing durability in outdoor settings. This simple yet effective device plays a vital role in maintaining the integrity and safety of structures relying on guy wire support.
