Solar Air Conditioner
3 month ago
Photovoltaic air conditioning uses the direct current generated by photovoltaic power generation to drive the DC motor, which drives the compressor to run, so as to achieve refrigeration; when the sunlight is weak enough for the compressor to use, it is converted to the grid power supply mode to supplement the power.
Photovoltaic air conditioning uses DC low-voltage power supply, and DC compressor uses solar panel to charge battery to directly supply power, so as to reduce DC / AC (DC / AC) inverter conversion link and improve power efficiency. In case of rainy days, the battery will continue to provide energy for the air conditioner.
| Products type | OYSA-6000BTU（1760W） |
| Volume of circulating air | 460m³/h |
| Body Color | White |
| Rated voltage | DC48V |
| Battery capacity | 120Ah/48V（120Ah/12V×4pcs） |
| Battery type | LA（colloid） |
| Solar panel voltage | DC20-72V |
| Solar panel power | 1160W（580W×2pcs） |
| Electrical input power | 750W |
| Refrigeration temperature | ≤–18℃ |
| Refrigerant model | R22 |
| Eletrical safety level | Ⅲ |
| Applicable climate type | N/ST（Temperate / subtropical zone） |
| carton box size | L1260mm×D348mm×H560mm（No solar panels） |
Figure 6. power system controller

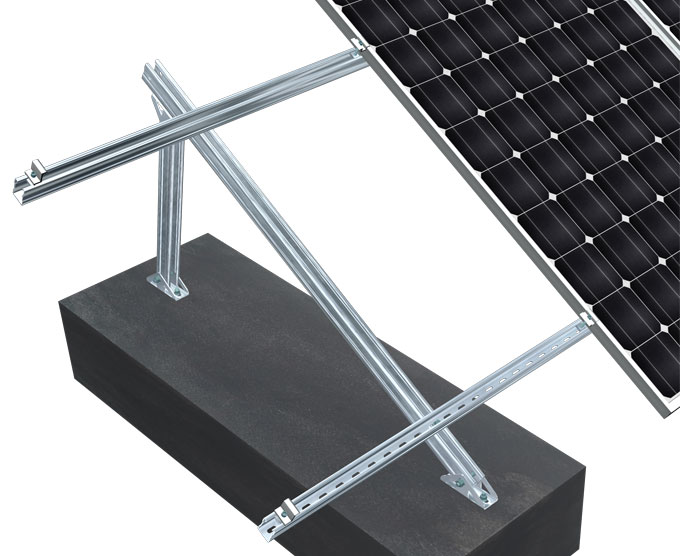

Figure 7. U-type photovoltaic special bracket
