compressed air filter for oil-free air
3 month ago

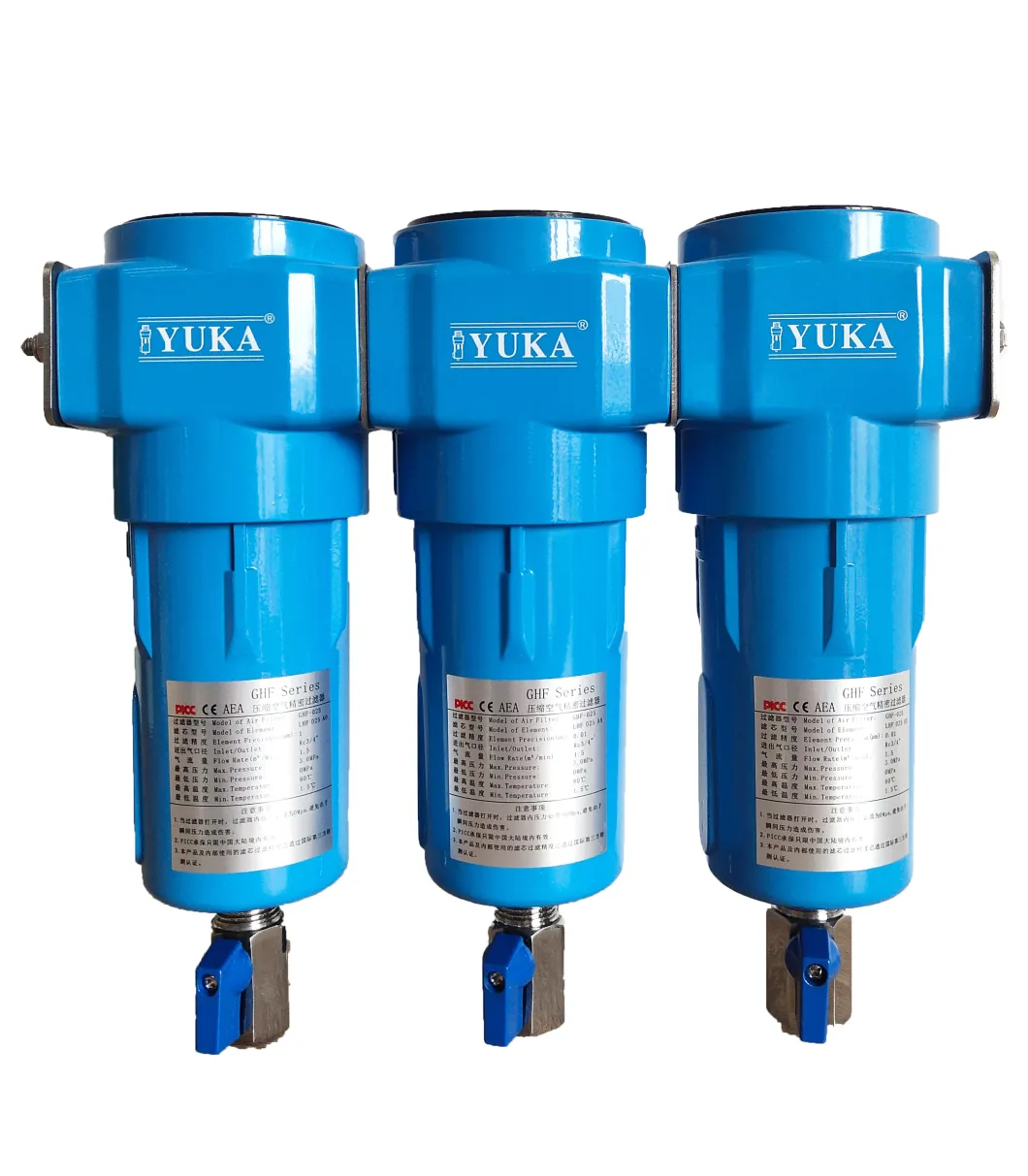

GHFseries Air Filter is recommended for the industries in laser, Nitrogen Generator industry.
FEATURES & BENEFITS
* Reduce pressure drop by 40% with less energy* Coalescing filter element performance data validated according to ISO 12500-1 assuring reliable achievement to compressed air quality according to ISO 8573-1
* 8 models total 7 element grades, and available options meet virtually all industrial air purification application requirements
* The bayonet lock ensures that the filter cannot be opened with pressure for Safety Protection
* Filter housing are immersion-coated ensuring long-term protection again corrosion
* With connection and wall kit design, easy to install and reduce maintenance space
FILTER ELEMENT GRADES
| PF | AO | AA | AX | ACS | AR | AAR |
| As a primary filter, particles whose diameter more than 5μm can be remove,the maxi. residual oil content is negligible | High efficiency general protection, dust particles, water mist & oil mist whose diameter more than 1μm can be removed, the residual content of oil mist does not exceed 0.6mg/m³ (21ºC),1ppm(w). | High effiency oil remove filtration, dust particles, water mist and oil mist whose diameter more than 0.01μm can be removed, the residual content of oil mist does not exceed 0.01mg/m³(21ºC),0.01ppm(w) | Ultra-efficient filtration, dust particles, water mist&oil mist whose diameter more than 0.01μm can be removed, the residual content of oil mist does not exceed 0.001mg/m³(21ºC),0.001ppm(w) | Dust particles whose diameter more than 0.01μm, oil vapor &odor can be removed, the maxi. resident content of oil vapor does not exceed 0.003mg/m³(21ºC),0.003ppm(w) | Dust particles whose diameter more than 1μm can be removed | Dust particles whose diameter more than 0.01μm can be removed |
The flow rate below is the treatment capacity of compressed air under rated working pressure 7 barg (100psi g).
For the application in other working pressure, please refer to the correction factors.
| Model | Pipe Size | Max Flow rates | Qty | Dimension(mm) | ||||||
| L/S | m³/min | cfm | W (width) | D (Diameter) | H (Height) | A | B | |||
| GHF017 | RC1/2" | 16.7 | 1.0 | 35.3 | 1 | 90 | 82 | 253 | 39 | 173 |
| GHF025 | RC3/4" | 25.0 | 1.5 | 53.0 | 1 | 90 | 82 | 253 | 39 | 173 |
| GHF030 | RC1/2" | 30.0 | 1.8 | 63.6 | 1 | 90 | 82 | 289 | 39 | 207 |
| GHF035 | RC3/4" | 33.3 | 2.0 | 70.6 | 1 | 90 | 82 | 289 | 39 | 207 |
| GHF058 | RC3/4" | 46.7 | 2.8 | 98.9 | 1 | 120 | 113 | 369 | 52 | 273 |
| GHF068 | RC1" | 60.0 | 3.6 | 127.1 | 1 | 120 | 113 | 369 | 52 | 273 |
| GHF080 | RC1" | 80.0 | 4.8 | 169.5 | 1 | 120 | 113 | 469 | 52 | 373 |
| GHF145 | RC1-1/2" | 120.0 | 7.2 | 254.2 | 1 | 120 | 113 | 469 | 52 | 373 |
| Pressure | Barg | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
| Psig | 15 | 29 | 44 | 59 | 73 | 87 | 100 | 116 | 131 | 145 | 160 | 174 | 189 | 203 | 219 | 232 | |
| Correction factor | 0.38 | 0.53 | 0.65 | 0.76 | 0.85 | 0.93 | 1.00 | 1.07 | 1.13 | 1.19 | 1.23 | 1.31 | 1.36 | 1.41 | 1.46 | 1.51 | |
YUKA service:
a. Providing professional consultation, technical support and special solutions
b. Providing timely feedback on complaints
c. Providing perfect after sales service and warranty
Q:Why choose us?
a. 24 years' practical experiences in R&D and manufacturing Compressed air treatment;
b. Founder of Compressed Air Nation Standard GB/T30475.1-2013 and GB/T30475.2-2013;
c. ISO 9001:2015, CE and product follow ISO8573-1;
d. With Germany Imported high efficiency filtration Test Instrument;
e.All goods had been 100% test before dispatched.
Frequently Asked Questions:
Q1. What kind of your company is it?
We're the manufacturer integrated with R&D, production and sales.
Q2. How about your technical conditions and production capability?
Complete process documents and equipment, mass production.
Q3. What is the delivery time?
Delivery time depends on the order quantity, normally is 3-5 working days after 30% payment.
Q4. Do you have a warranty?
Yes, for filter, it is 1 year normally.
Q5. Can you supply customized product?
Yes, we have a professional technical team to provide you with the best solution and complete production processes and control to provide you with satisfied product.
