304 316 Stainless Steel Waterwork T Hed Bolt and Nut Mechanical Joint T-Head Bolt

2 month ago

3 0 

10 year

Product details

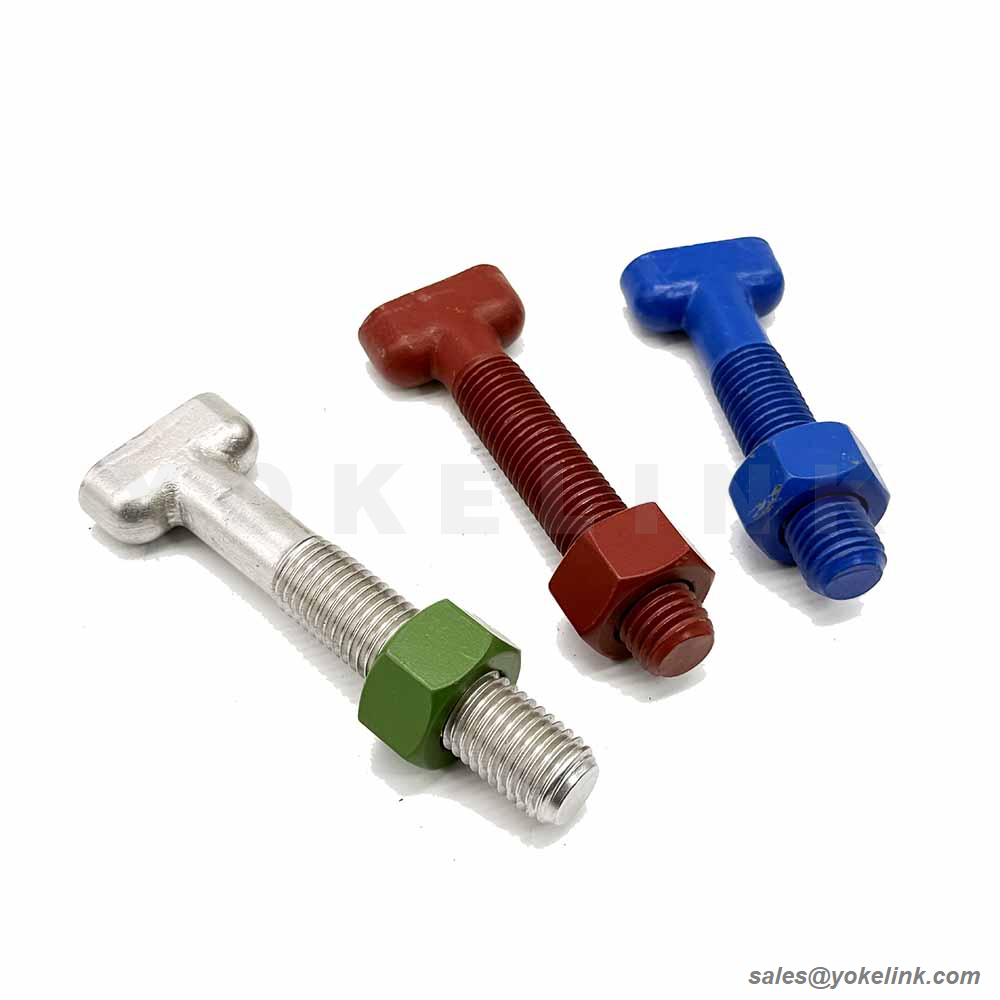

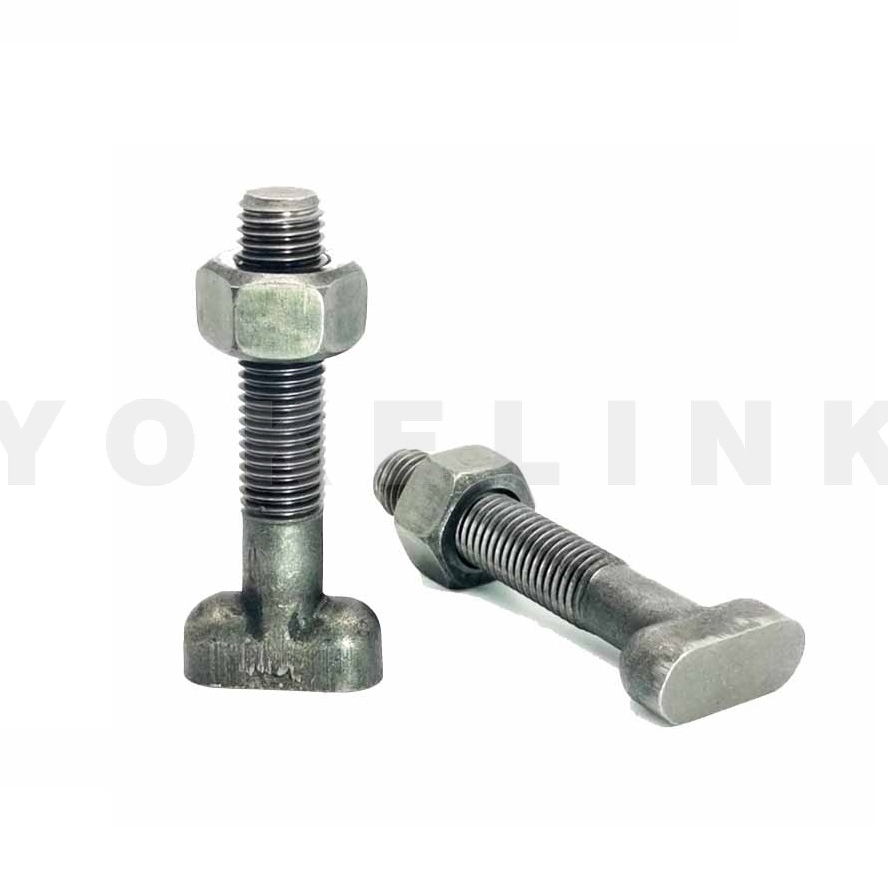

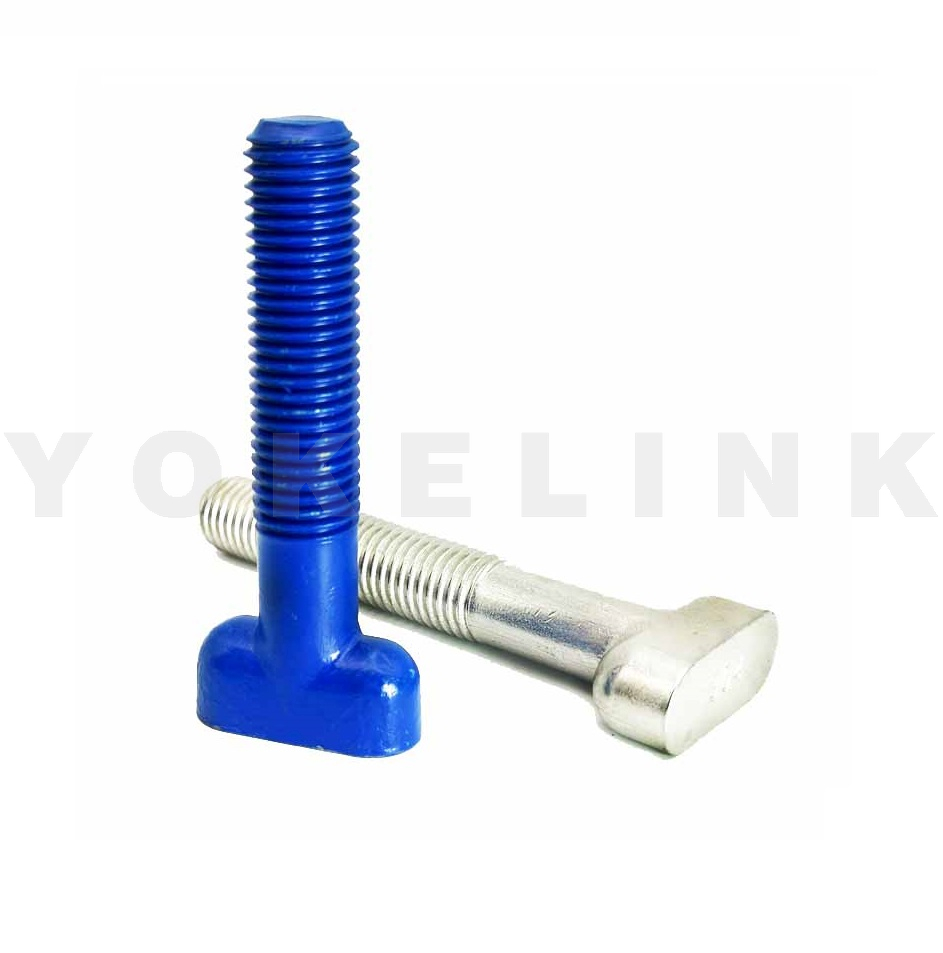

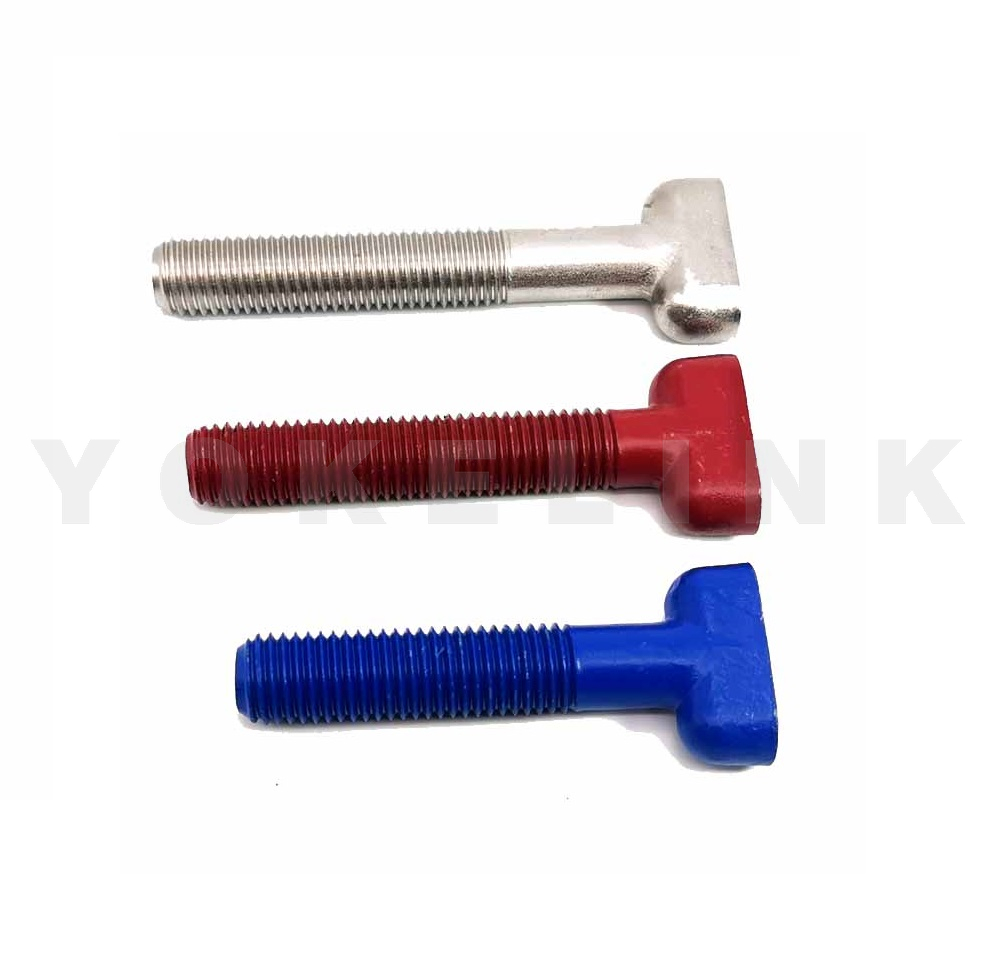

Waterwork T Head Bolt and Nut

Yokelink Mechanical Joint T Head Bolt and nut for Waterwork are accordance with ANSI/AWWA C111/A21.11. Material including High Strength low alloy steel ; and 304, 316 stainless steel. Diameters have 5/8”, 3/4”, 1” and 1-1/4”. The Length from 3” to 9”, Special thread lengths and non-standard lengths available on request. Teflonn Coating with different color is available for these bolt and Nuts.

T Head bolts and hexagonal nuts in use for Rubber-Gasket Joints for Ductile-Iron Pressure Pipe and Fittings.

T-Bolts are made according to requirements specified by the American Water Works Association or based on customer own specifications. Products are offered in range coatings, including colour coding of nuts /or/ bolt and nut assemblies.

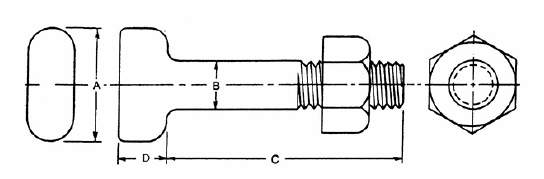

T Head Bolt and Nut Speicifications:

Securing Waterworks With Tight Connections

A tight fit and resistance to degradation is critical in assemblies that use mechanical joint gaskets and T-head bolt packs. Tap into our reliable, American-made parts that meet or exceed all ANSI/AWWA C111/A21.11 requirements to take on any waterworks project.

T-Bolt coating options include Cor-Blue, 304 Stainless and 316 Stainless as well as custom coatings. We’re also able to offer special T-Bolts in anti-rotation design and produce nonstandard thread length.

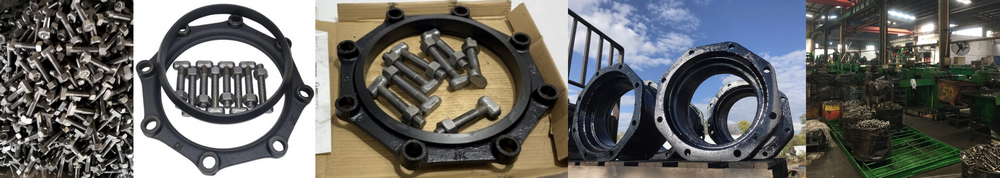

T-Head Bolt & Nut For Water Wastewater System Waterwork (1)

T-Head Bolt & Nut For Water Wastewater System Waterwork (2)

T-Head Bolt & Nut For Water Wastewater System Waterwork (9)

Buy MJ T-head Bolt and Nut From Yokelink

MJ T head Bolt and nut DUCTILE IRON MECHANICA

Yokelink Mechanical Joint T Head Bolt Manufactured from corrosion-resistant, high-strength, low-alloy steel in accordance with ANSI/AWWA C111/A21.11, that has a baked-on ceramic-filled fluoro carbon resin, which handles the needs of highly corrosive conditions. Heads are stamped with the type of stainless. Ideal for corrosive soils. Provided with coated stainless steel heavy hex nut to prevent galling. Contact us now.
