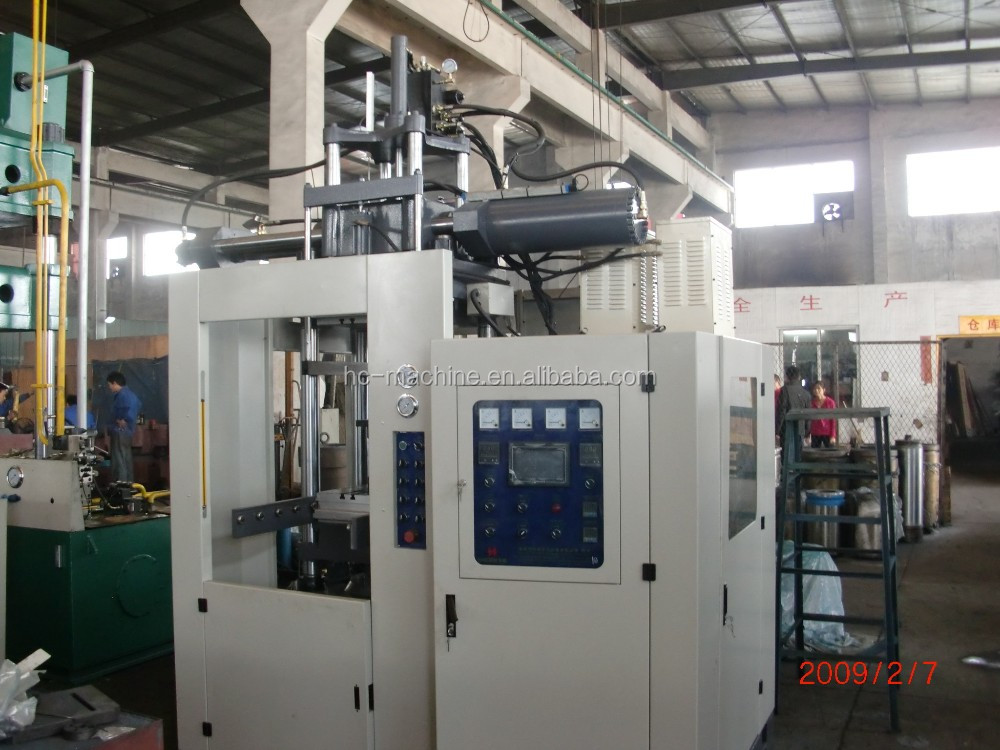

XZL-FIFO200T Rubber Injection Moulding Machine

FIFO type rubber injection molding machine

The machine main features:

1.The plasticzed rubber will injection early according to FIFO method,largely reducing the production time.

2.Large worktable area.

3.Imported double-proportion valve or servo system can control any kind of movement without causing shock.

4.Savepower consumption of motor by 50%-70%.

5.German electronic ruler for injection ensures metering accuracy.

6.3-stage injection pressure and flow and 3-stage hold pressure meet various product technological requirements.

7.PLC programmable controller+touch screen LCD,technical parameters setting is convenient and intuitive and storable.The whole process is monitored;internal fault is diagnosed and alarmed automatically.

8.Safety light curtain protection.

9.Precisely positioning when moving in or out the mold.

10.the Material temperature control by mold temperature controller.

11.Mold temperature control accuracy is ±1℃

12.Out-moving mold or upper-lower hydraulic boom is optional.

13.Double-proportion pump or servo control is optional.

Mechanical system:

1. Using the finite element analysis, a design precision casting forming, high rigidity, long service life.

 2. The deep hole processing, the hot plate drill by thickening and nitriding process, the use of high precision,, even the temperature distribution.

 3. Numerical control equipment, to ensure accurancy, precision design with key parts for processing.

 4. High-end adjustment plane technology, highest can make fluctuation hot plate parallel degree of 0.02mm

Oil line system:

 1. The oil line is integrated design concept, reduce oil route, modular inpact and noise.

 2. The safe and energy-saving design, improve efficiency, reduce energy consumption.

 3. Special design of high speed loop, and makes speed fast acting as smooth transition, and can make any speed adjustment

4. Indenpendent exhaust circuit design, make the exhaust of 100%.

 5. Using high quality hydraulic components, stable and reliable.

main technical:
