Potato Chips Line

300kg/h Fully Automatic Potato Chips Gas-heated Frying Line

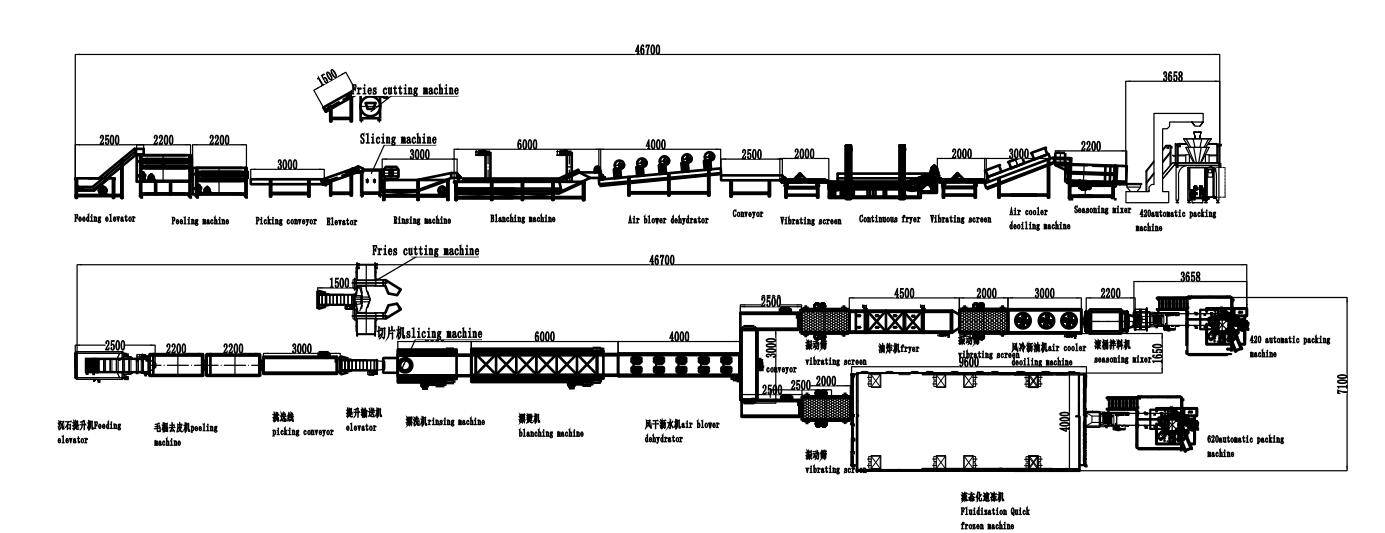

Potato chips processing flow: Lifting machine——Washing and peeling machine——Picking line——Cutting machine——lifting machine——Rinsing machine——blanching line——Air-dryer dewatering line——Continuous Frying machine——Vibrating screen——Air-dryer deoiling machine——Seasoning machine——automatic packing machine—Finished product.

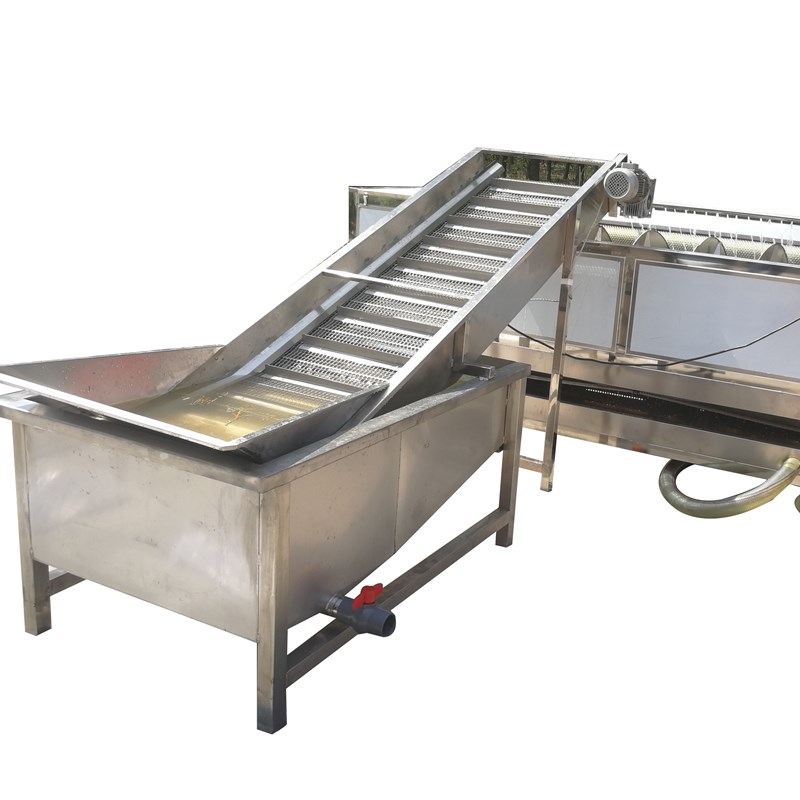

Feeding machine

(1) use: It can separate the stones and sand from the potatoes and lift the potato into peeling machine. (2) features: SUS 304, easy maintenance, easy cleaning, no rust. (3) technical parameters: Size: 2500*600*1500mm Power: 0.75KW/380v/50Hz Mesh belt width: 600 mm Frame: 50*50*2mm rectangle stainless steel square tube

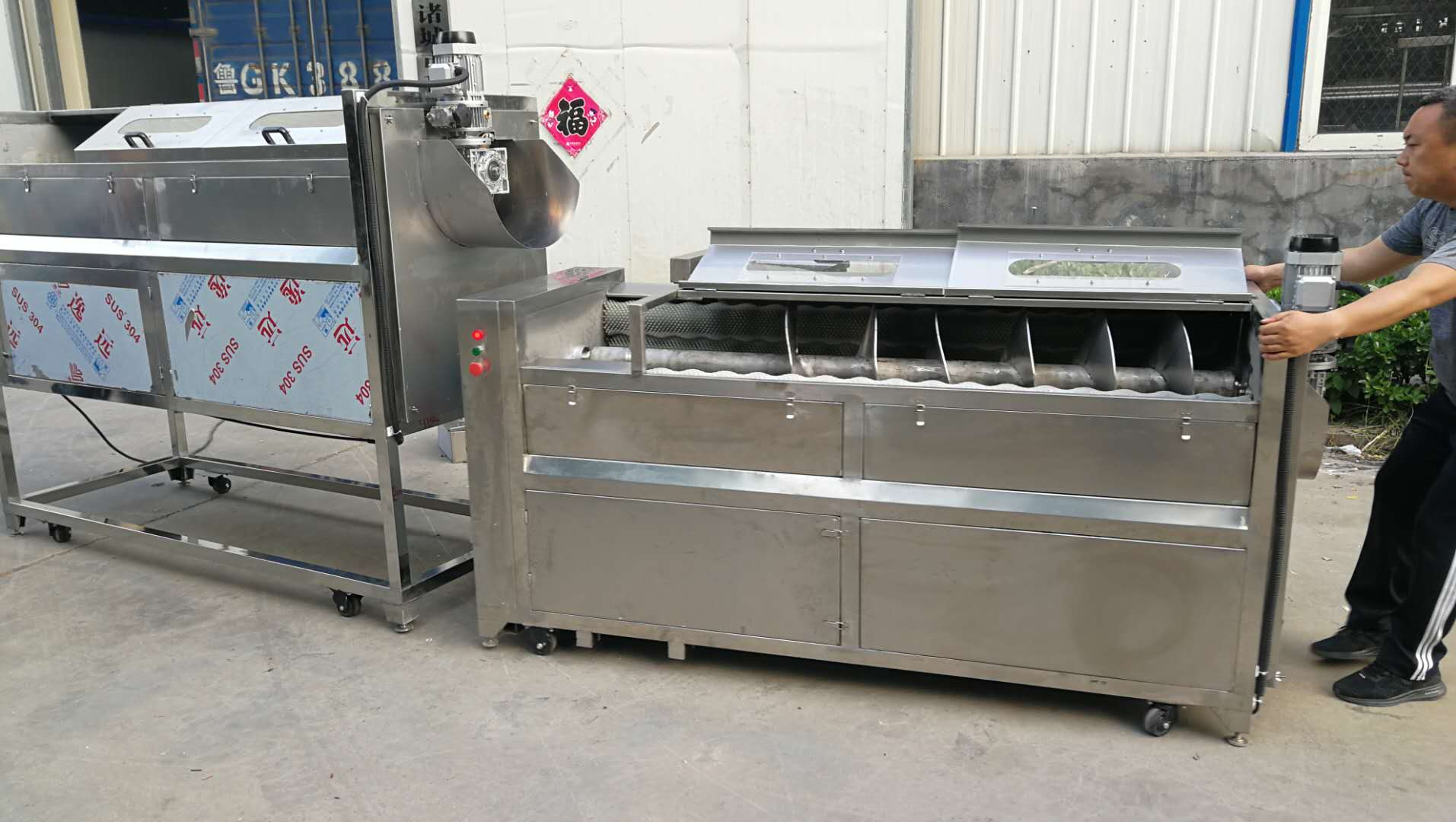

Washing and peeling machine

(1) use: wash and peel potatoes continuously.
(2) features: the two peelers are arranged by one higher and one lower, spiral discharger to achieve continuous production,
imported nylon brush roller, durable, stainless steel frame structure.
(3) technical parameters:
Dimensions:2300*760*1650mm, brush roller length:2000 mm
Power: 3.75kw /220v/3phase.
Brush roll: 9 nylon brush rollers.
(4) material disposition
Spiral teeth: stainless steel plate bending production
Other material: 304 stainless steel plate, welding and shearing and bending.

Slicing machine

(1) use: after cleaning the peeled potatoes ,cut potato into chips .
(2) features: US Technology, blade durable, smooth operation. large capacity, good cutting effect.
(3) technical parameters:
Dimensions: 1100*660*900mm
Power: 1.5kw /380v/ 50Hz
Cutting thickness:2mm
capacity: 1200kg/h
(4) material disposition
Frame material: 304SUS

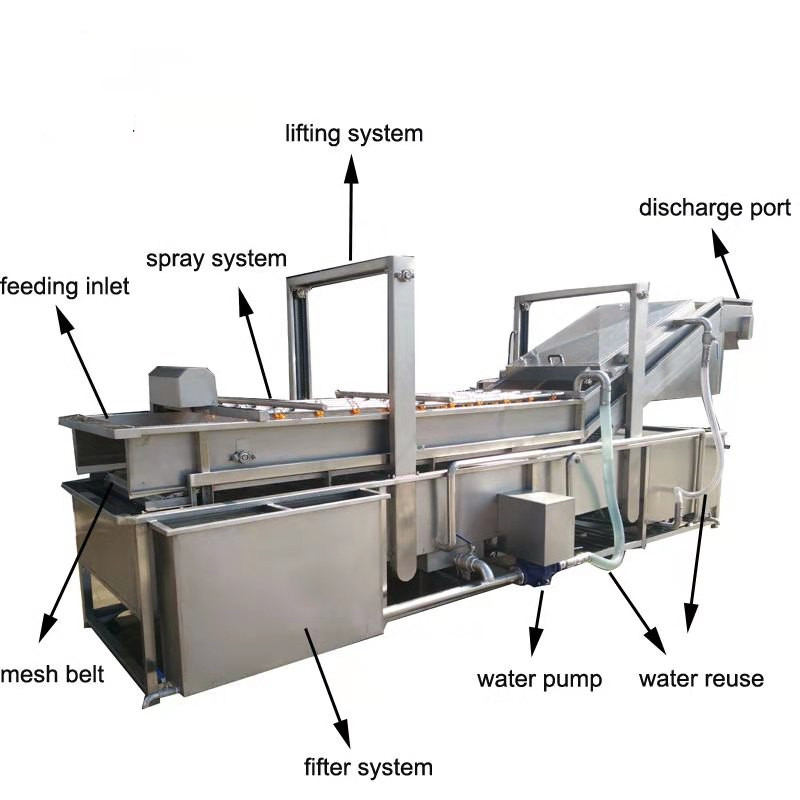

Rinsing machine

(1) use: rinse the potatoes after slicing and remove the starch on the surface
(2) features: food grade 304sus, with bubble function, to prevent the adhesion of French fries, stainless steel chain mesh belt conveyor, one side with a cleaning area, the installation of sprinkler at the exit.
(3) technical parameters:
Dimensions: 6000*1200*900mm
Conveyor belt width:1000mm
Conveyor motor: frequency conversion
Conveying Power: 0.75kw /380v/ 50Hz
Water pump power: 3kw
Capacity: 1000-1500kg/h
Frame: 50*50*2mm rectangle stainless steel square tube

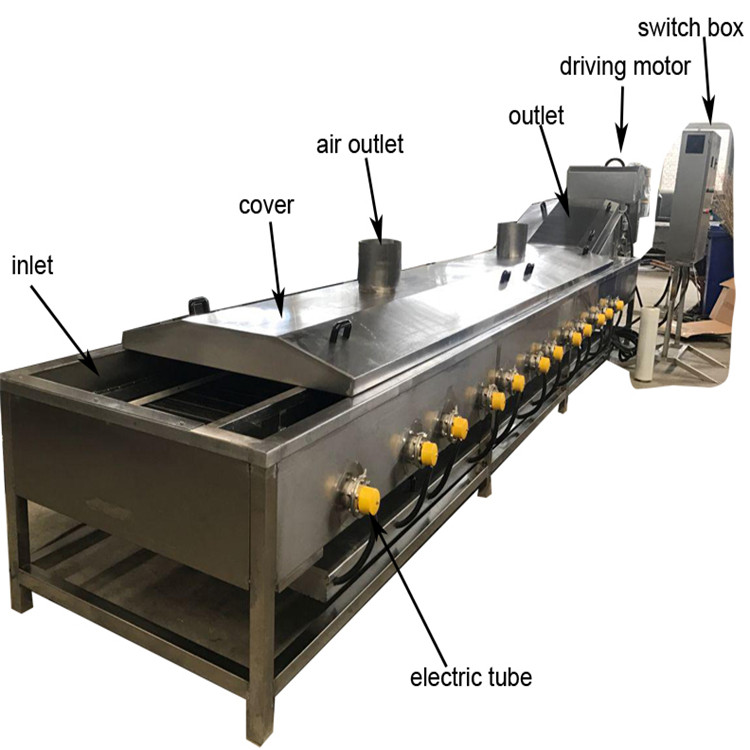

Blanching machine

(1)use: in 85-92℃water blanching for 5-6 minutes
(2) features: steam heating, accurately control the blanching temperature, with the overall lifting function, easy to clean and
convenient for maintenance.
(3) technical parameters:
Dimensions: 10000*1200*1850mm
Conveying power: 0.75kw /380v/ 50Hz
Conveyor belt width:1000 mm,
Pump power:3kw
Cover lifting power:1.1kw
Heating method: steam or heated by LNG gas
(4) material disposition
Drive motor: Variable frequency control speed
Conveyor belt: stainless steel chain mesh belt
Frame: 50*50*2mm rectangle stainless steel square tube

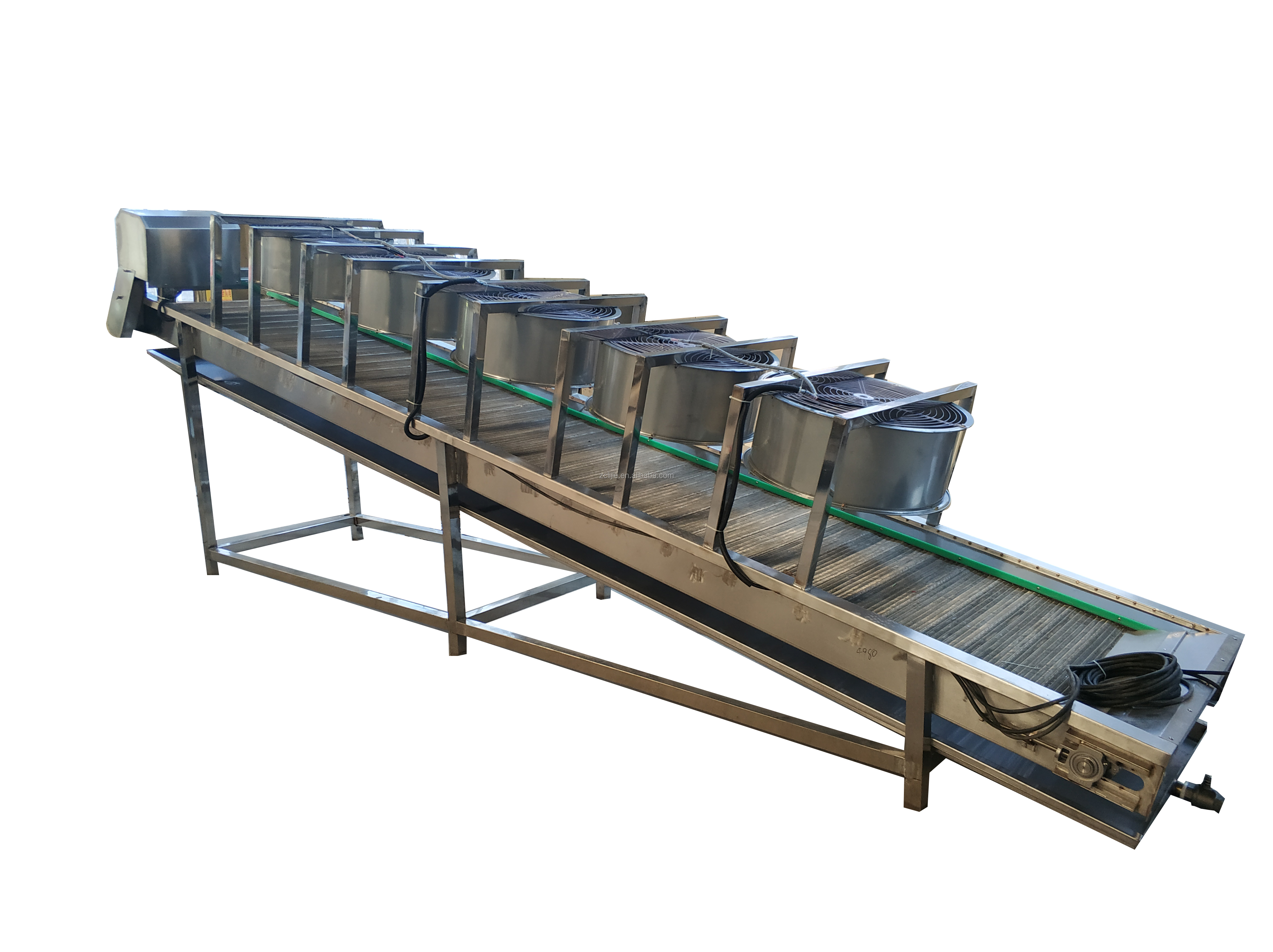

Air-dryer dewatering machine

(1) use: to remove the surface excess water of the fries, but also can quickly cool the chips down.
(2) features: Strong air blower , quickly blow off the waterof chips, easy to fry.
(3) technical parameters:
Dimensions: 6000*1200*1150mm.
Total power: 4.5kw /380v/ 50Hz, transmission: 0.75kw, fan:12sets Conveyor belt width: 1000 mm,
Drive motor: Variable frequency control speed
Conveyor belt: stainless steel mesh belt
Frame: 50*50*2mm rectangle stainless steel square tube

Continuous Frying machine

(1) use: It can fry the potato chips continuously.
(2) features: external heater, with oil storage tank, with a coarse filter, with smoke hood, the temperature of 0-240 ℃ can be
adjusted, frying time variable, frequency speed regulation. With external burner& heat exchanger, more safe, less energy, Longer service life.
(3) technical parameters:
Dimensions:11000*1200*2100mm
Conveying power: 1.5kw/380v/50Hz
oil pump:2kw*2Ssets.
lift power: 2.2kw
Gas heating power:800000kcal,
Conveyor belt width: 1000 mm,
Fuel consumption:70m³/h natural gas or 60 kg LP gas.
Drive motor: variable frequency adjustable speed
Frame: 50*50*2mm rectangle stainless steel square tube.
