DK7732 high speed edm wire cutting machine
4 year ago
CNC Wire EDM is a machine mainly used for the manufacture of various types of molds, electrodes, edm wire cutting machine precision parts, cemented carbide, hardened steel, graphite, aluminum alloy, structural steel, stainless steel, titanium alloy, diamond, etc. DK77 medium wire cutting machine It is a machine for processing complex cavities and curved surfaces of various conductors.Electrical Discharge Machining
Wire Electrical Discharge Machining Product Description
| Model | Worktable size (mm) | Worktable travel (mm) | Max. cutting thickness (mm) | Processing taper | Max. load weight (kg) | Machine weight (kg) | Machine dimension(mm) | Power consumption |
| DK7712 | 200×270 | 120x160 | 100 | 50 | 600 | 900×700×1250 | AC380V /220V 50HZ ≤2kw | |
| DK7720 | 270x420 | 200x250 | 200 | 6°/80mm | 100 | 800 | 1160×880×1400 | |
| DK7730 | 340x560 | 300x360 | 400 | 6°/80mm | 200 | 1250 | 1485×1050×1700 | |
| DK7732 | 380*600 | 320*400 | 400 | 6°/80mm | 300 | 1400 | 1650×1150×1800 | |
| DK7735 | 380x650 | 350x450 | 400 | 6°/80mm | 300 | 1440 | 1660×1330×1700 | |
| DK7740 | 410x710 | 400x500 | 400 | 6°/80mm | 450 | 1600 | 1830×1490×1700 | |
| DK7740B | 450x840 | 400x630 | 400 | 6°/80mm | 450 | 1670 | 1845×1610×1700 | |
| DK7745 | 500x750 | 450x550 | 400 | 6°/80mm | 450 | 1650 | 1865×1520×1700 | |

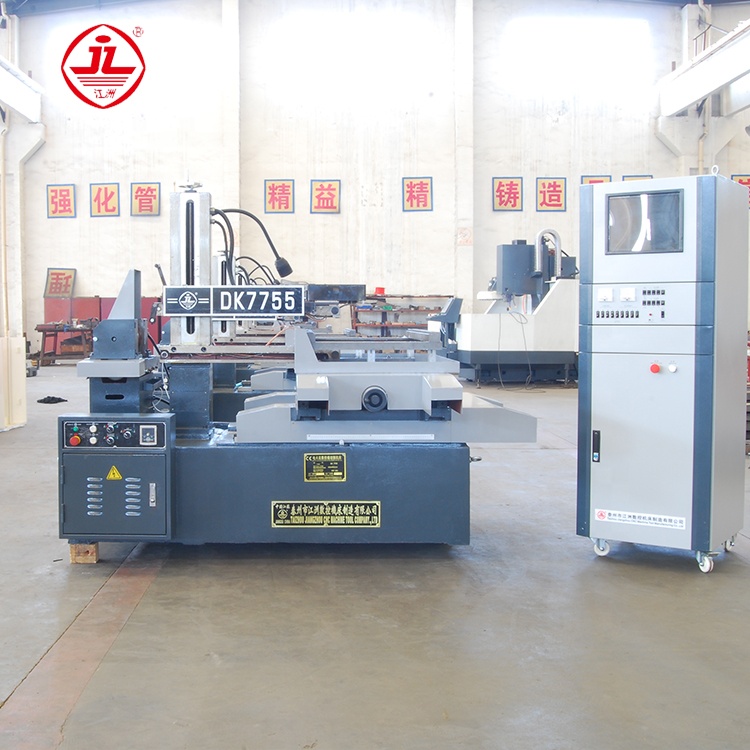

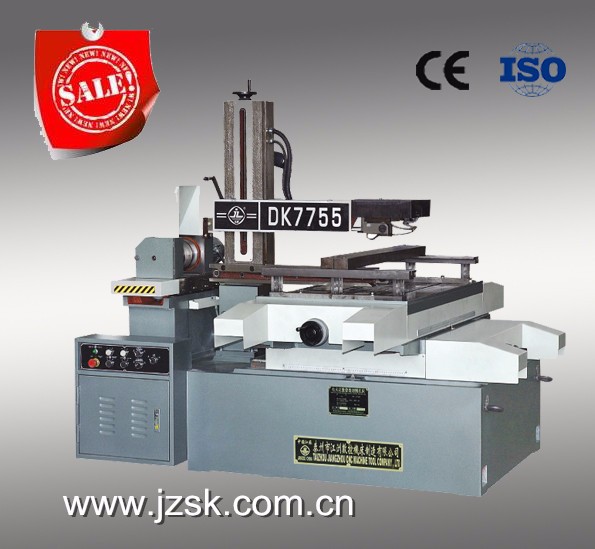

| DK7755 | 596x880 | 550x650 | 500 | 6°/80mm | 800 | 2500 | 2070×1770×1790 | |
| DK7755B | 596x1060 | 550x850 | 500 | 6°/80mm | 850 | 2600 | 2070×1950×1790 | |
| DK7763 | 790x1260 | 630x1000 | 600 | 6°/80mm | 1000 | 3500 | 2265×1865×1980 | |
| DK7763A | 720x1260 | 630x1000 | 600 | 6°/80mm | 1000 | 3200 | 2200×2160×1930 | |
| DK7780A | 880x1440 | 800x1200 | 600 | 6°/80mm | 1500 | 4700 | 2700×2300×1900 | |
| DK7780B | 880x1260 | 800x1200 | 600 | 6°/80mm | 1500 | 4500 | 2620×2260×1900 | |
| DK7780 | 900x1500 | 800x1200 | 600 | 6°/80mm | 1500 | 5500 | 2800×1950×2150 | |
| DK77100 | 1010x1500 | 1000x1200 | 600 | 6°/80mm | 1500 | 5600 | 2930×2500×2000 | |
| DK77120 | 1300x1900 | 1200x1600 | 600 | 6°/80mm | 4000 | 10000 | 4200×3700×2000 | |
| Homepage | Get back to homepage! | Price | Get the latest price here! | |||||
Performance
- Good rigidity, high precision, low noise, reasonable price and easy to operate and maintain.
- Four axis linkage,wire breaking protection.It is especially suitable for mould processing
Features and Options
- The high quality machine adopts precise ball screw linear guide track.
- The maximum working speed is over 100mm ²/min and the best surface roughness is less than Ra2.5 μm.
- High column matches electric lift to adjust the gap of guide wheel.
- Large swing taper machine matches electrode wire expansion mechanism.(±6-45°)
- We also produce semi-closed environmental-protection machine.
- The diameter range of molybdenum wire is 0.12mm-Φ0.25mm (moly wire diameter over than Φ0.18mm should be customized).
Control System (HL, HF, AUTO-CUT)
- Desk or vertical control cabinet
- Industrial computer with keyboard and mouse
- Software installed
Warranty period: one year
During warranty period, if you have any parts broken because of qulity problem, we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you as usual.
1.Technical support online service provided .
2.Technical files service provided.
3.Machine operation video provided
4.On-site training service provided.
5.Spare parts replacement and repair service provided.
6.All of the questions will be replied within 24 hours
1. 20 years experience in research, development and manufacture of cnc machine tool.
2. Covering an area of about 1500 square meters, Jiangzhou is equipped with professional engineers, skilled workers and scientific management system.
3. Reliable sale and after-sale service.
Packing Details : To be packed in wooden cases,suitable for export
Delivery Details : 15-20 days after receipt of deposit
