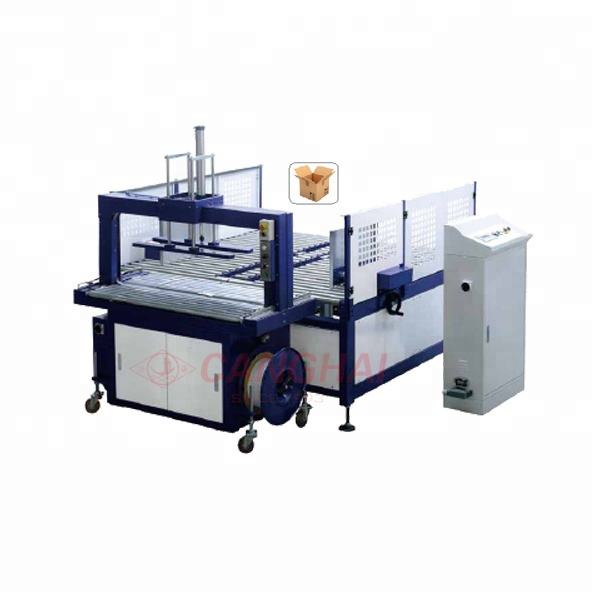

1250 Automatic PP Belt Strapping Machine For Banding Corrugated Cardboard Carton Box Bundle Tying Machine1
2 year ago
Product Induction
|
Size |
L1520mm*W680mm*H2000mm |
|
Work table top |
850mm |
|
Load capacity |
80kg |
|
Machine weight |
280kg |
|
Working speed |
≤30 circle/min |
|
Tightening force |
0-45kg |
|
Binding strap specifications:
|
Polypropylene,W 5mm,6mm,Thickness 0.5mm~0.8mm
Roll width: 170mm~190mm
Coil inner diameter: 200mm~210mm, outer diameter: 400mm~450 |
|
Bundling specifications |
Minimum packaging size:W 80mm×H 60mm Standard frame size:W 1250mm×H 500mm (Can be customized according to needs, minimum width 1050mm) |
|
Bonding method |
hot melt method, bottom bonding, bonding surface ≥90%, |
|
bonding position deviation |
≤2mm |
|
Options |
strapping width 8mm, 9mm, 11mm, 12mm |
Electrical configuration:
Button switch: Siemens
APT, PLC controller: Siemens,
Relay: Schneider,
Motor: MEIWA or MCN,
Inductive switch and proximity switch: P+F or FOTEK.
Noise: In the working environment, the noise is ≤75dB (A)
Environmental conditions: humidity ≤90%, temperature 0-40
