When the length of paperboard is big , can move the front feeding baffle right or left. Adjustment method : loose the screws in circle of below picture, move the two front feeding baffles , adjust the front feeding baffles to the suitable positions according to the length of paperboard , after finishing adjustment , tight the screw and fix the baffles .
MODEL CH1000X400 Easy Operation Corrugated Automatic Card Board Partition Slotter Machine1
2 year ago
Product details
Product Description

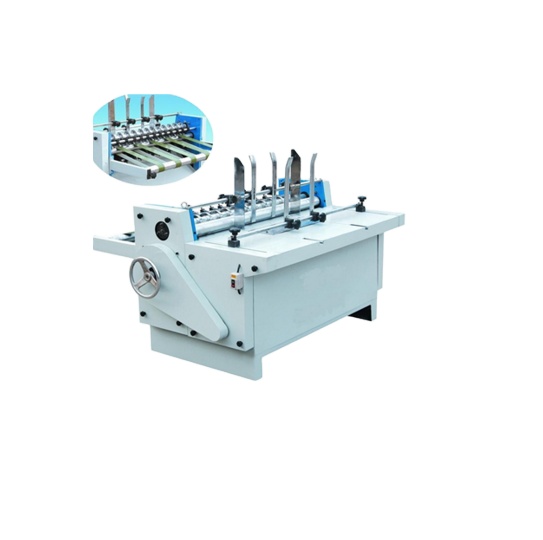

Automatic paper partition slotting machine

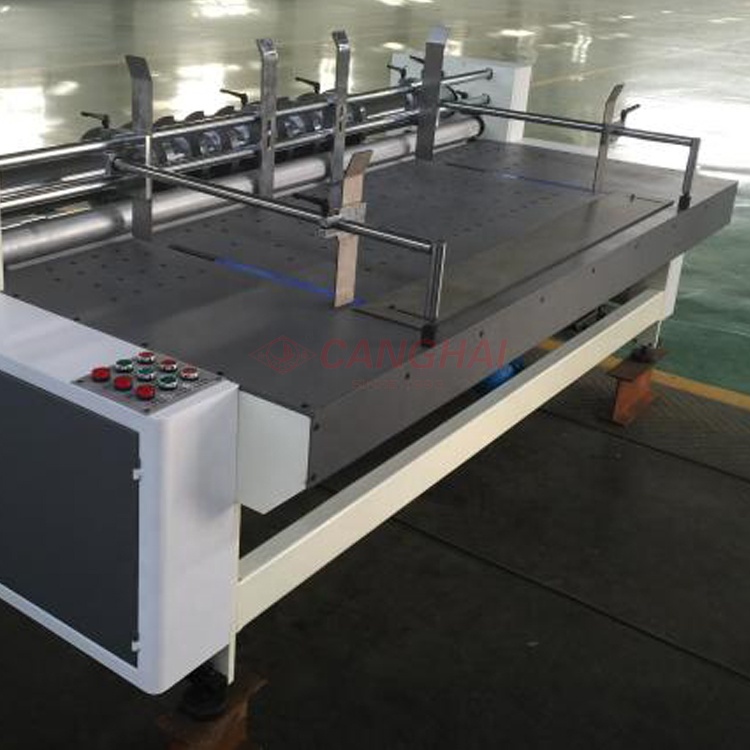

Choose the corrugated paperboard which you want to process, adjust the side feeding baffle (1 in Picture A) . Adjustment method : loose the screws in circle of below picture, move the two side feeding baffles (1 in Picture A) right or left , adjust the distance between two side baffles according to the length of paperboard , after finishing adjustment , tight the screw and fix the baffles .
Detailed Images
Adjust the back feeding baffle , adjustment method : loose the screws in circle of below picture , move the two back feeding baffles forwards or backwards , adjust the suitable positions according to the width of paperboard , after finishing adjustment , tight the screw and fix the baffles .
|
Model
|
1000
|
|
Machine max speed
|
120 pieces/min
|
|
Max feeding size (L×W)
|
1000mm×300mm
|
|
Min feeding size (L×W)
|
100mm×75mm
|
|
Min slotting distance
|
45 mm
|
|
Slotting number
|
9 groups of slotting knives
|
|
Slotting width
|
(Choose one according to the thickness of paperboard)
|
