CXSM10-50 Dual Rod Pneumatic Air Cylinder

8 month ago

2 0 

11 year

Product details

CXSM10-50 SMC Type Dual Rod Pneumatic Air Cylinder

CXS series dual rod pneumatic cylinder provides twice the output force. Two types of bearings are available as standard, slide bearing (CXSM) or ball bushing bearing (CXSL) . This series is available in bore sizes 6mm, 10mm, 15mm, 20mm, 25mm, 32mm with maximum strokes up to 200mm. They are popularly used in pick and place applications, etc. If you have any demands or questions, pls contact us

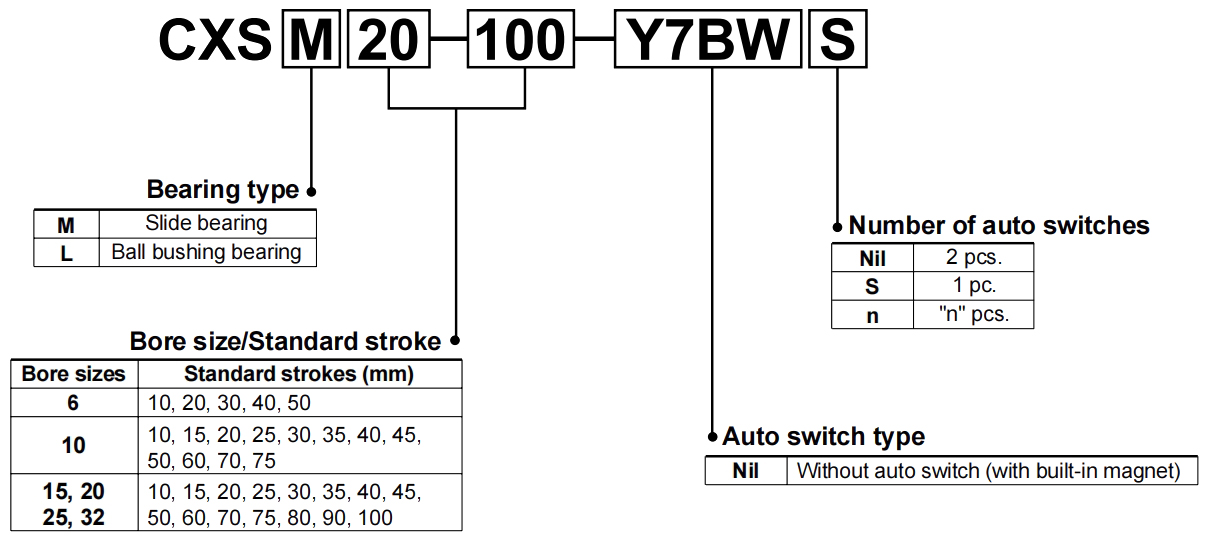

Order Code:

Technical Data:

Bore Size (mm)	6	10	15	20	25	32
Fluid	Air (Non-lube)
Proof Pressure	1.05 MPa
Max Operating Pressure	0.7MPa
Min Operating Pressure	0.15 MPa	0.1 MPa		0.05 MPa
Ambient and Fluid Temperature	-10 to +60 ℃ (No Freezing)
Piston Speed (mm/s)	30 to 300	30 to 800	30 to 700		30 to 600
Cushion	Rubber Bumper
Stroke Adjustable Range	0 to -5mm compared to the standard stroke
Port Size	M5x0.8				1/8''
Bearing Type	Slide bearing (CXSM), Ball bushing bearing (CXSL) (same dimensions for both)

Stroke:

Model No	Standard Stroke (mm)	Long Stroke (mm)
CXSM6	10, 20, 30, 40, 50	60, 70, 75, 80, 90, 100
CXSL6
CXSM10	10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 75	80, 90, 100, 110, 120, 125, 150
CXSL10
CXSM15	10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 75, 80, 90, 100	110, 120, 125, 150
CXSL15
CXSM20	10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 75, 80, 90, 100	110, 120, 125, 150, 175, 200
CXSL20
CXSM25	10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 75, 80, 90, 100	110, 120, 125, 150, 175, 200
CXSL25
CXSM32	10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 75, 80, 90, 100	110, 120, 125, 150, 175, 200
CXSL32

Theoretical Output:

Bore Size (mm)	Rod Size (mm)	Operating Direction	Piston Area (mm²)	Operating Pressure (MPa)
Bore Size (mm)	Rod Size (mm)	Operating Direction	Piston Area (mm²)	0.1	0.15	0.2	0.3	0.4	0.5	0.6	0.7
CXS6	4	OUT	56	-	8.4	11.2	16.8	22.4	28.0	33.6	39.2
CXS6	4	IN	31	-	4.6	6.2	9.3	12.4	15.5	18.6	21.7
CXS10	6	OUT	157	15.7	-	31.4	47.1	62.8	78.5	94.2	110
CXS10	6	IN	100	10.0	-	21.0	30.0	40.0	50.0	60.0	70.0
CXS15	8	OUT	353	35.3	-	70.6	106	141	177	212	247
CXS15	8	IN	25.2	25.2	-	50.4	75.6	101	126	151	176
CXS20	10	OUT	628	62.8	-	126	188	251	314	377	440
CXS20	10	IN	471	47.1	-	94.2	141	188	236	283	330
CXS25	12	OUT	982	98.2	-	196	295	393	491	589	687
CXS25	12	IN	756	75.6	-	151	227	302	378	454	529
CXS32	16	OUT	1608	161	-	322	482	643	804	965	1126
CXS32	16	IN	1206	121	-	241	362	482	603	724	844

Note: Theoretical output (N)= Pressure (MPa) x Piston Area (mm²)
