Coat hanger primer sanding

Automated Sandblasting Systems Product description:

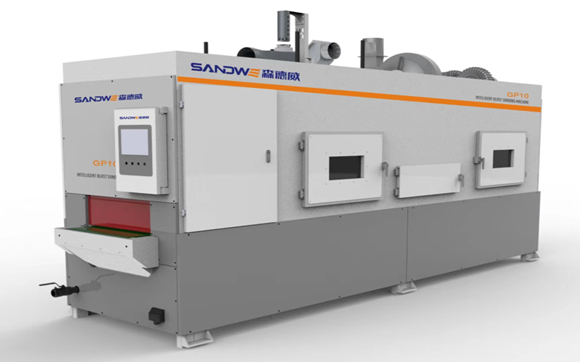

Shaped sand blasting machine PM65-GP10

Before sanding  vs  After sanding







Automatic sandblaster machine characteristics：

Sand grains are jetted by high-pressure air, impact the surface of workpiece, and then fall into storage under the action of gravity

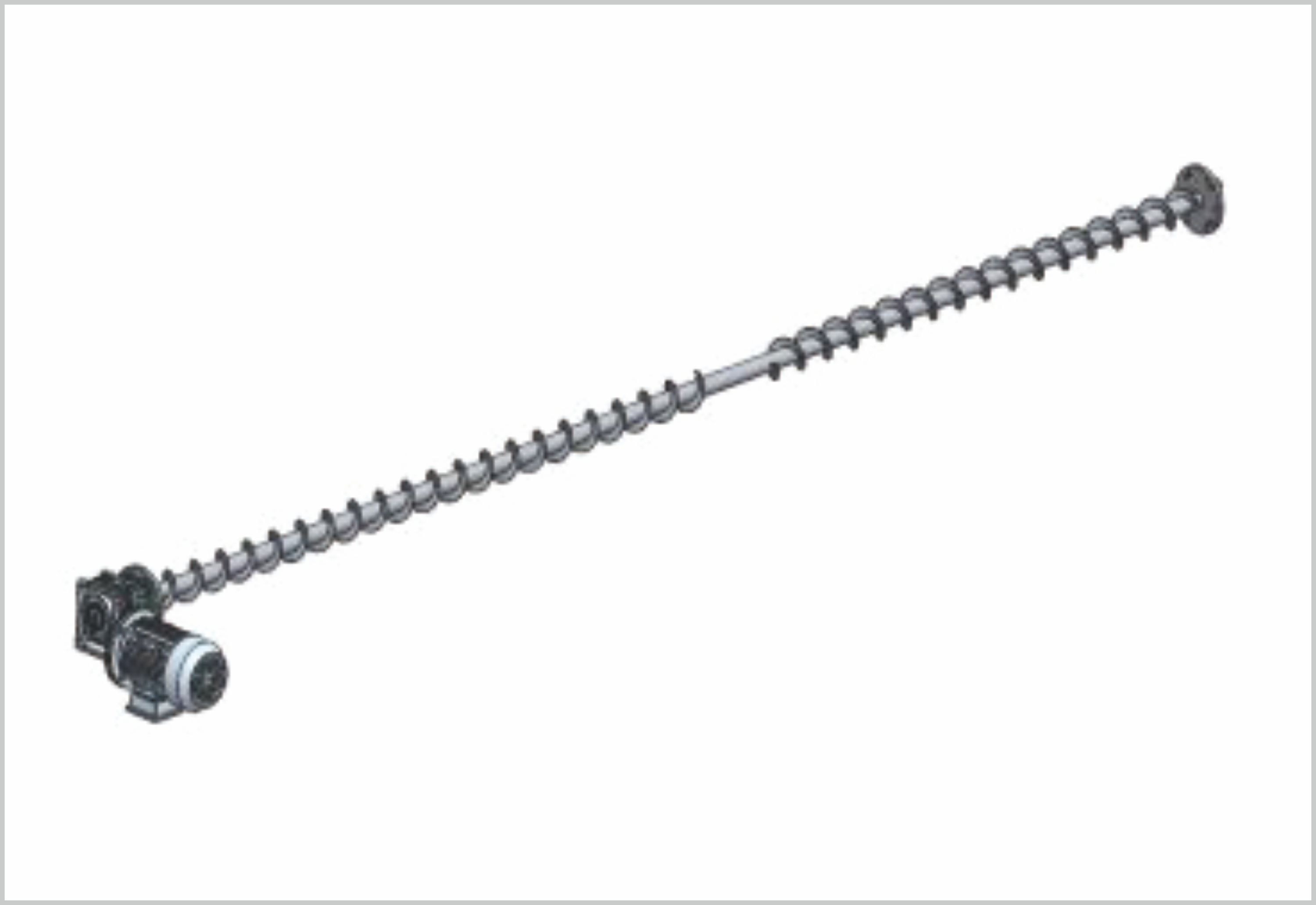

Sand tank and stirring cage sand and dust conveying system collect them and send them to sand and dust separation system. Contrast sand

The recycling of granules improves the utilization rate.

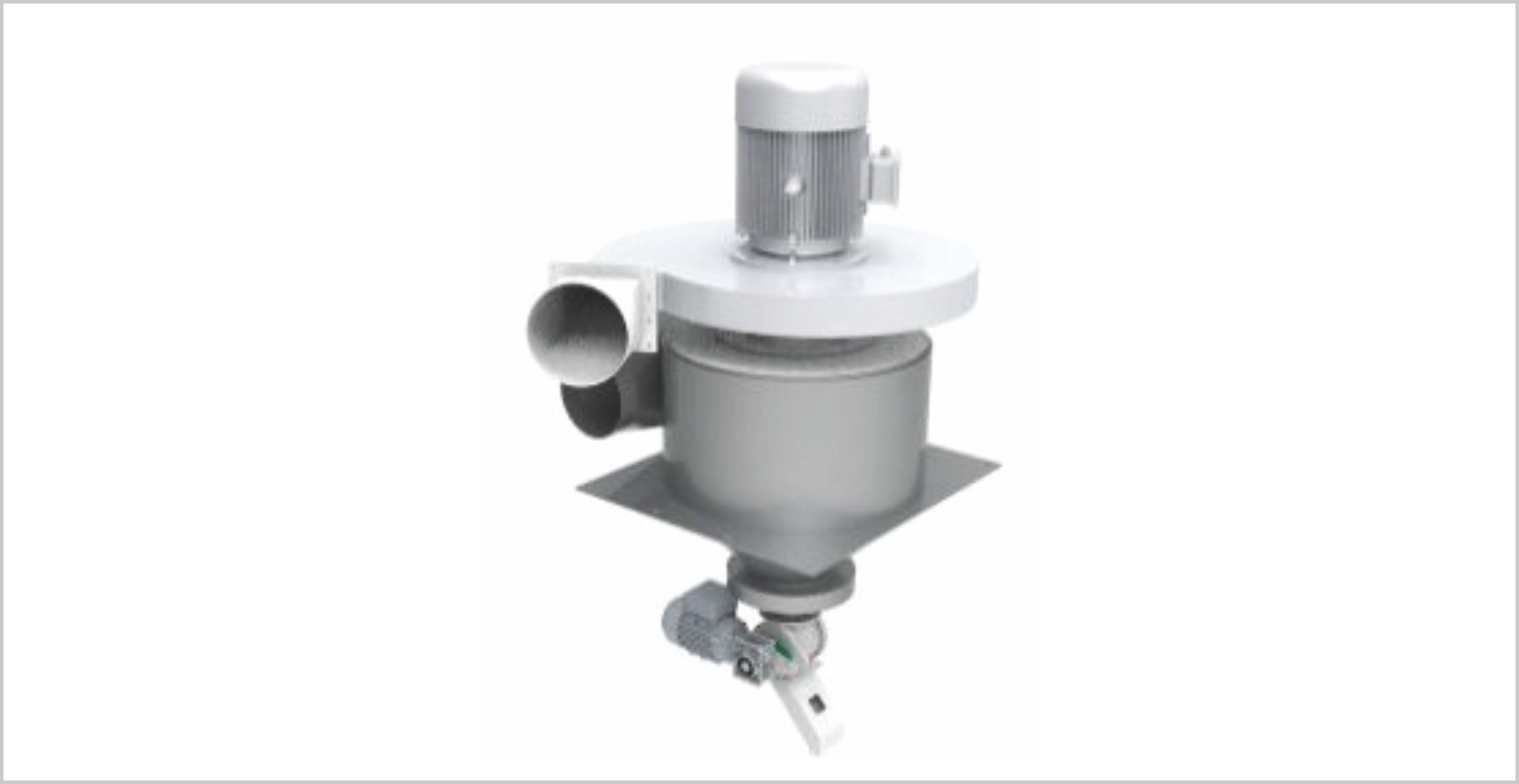

2) Sand and dust separation system

In the grinding process, some abrasives will turn into dust under impact. The main functions of the separation system are

The dust in the recovered sand-dust mixture is separated and discharged, and the reusable sand grains are recycled at the same time.

Repeat the cycle until it is consumed.



3) Independent lifting control and adjustment system, rotary spray gun (10)

The spray gun can be adjusted by lifting and multi-angle according to the thickness of the workpiece, and the sandblasting grinding range

Within 650mm, to ensure the perfect fit between the spray gun and the machined parts.

Comparative advantages:

1. Rapid adjustment and conversion of production products make it easier to ensure the most ideal sanding effect.

2. Save air source efficiently, reduce working pressure and reduce power consumption of air compressor.

4) Double polishing special-shaped sand roller

Comparative advantage: Greatly improve sanding effect and reduce manual grinding Workload.

5) Belt conveyor system

Perforated belt conveying system for irregular workpieces and small workpieces.

The conveying is smoother, the application range is wide, and the recovery cycle of sand grains is more thorough.

Reduce backlog and waste.

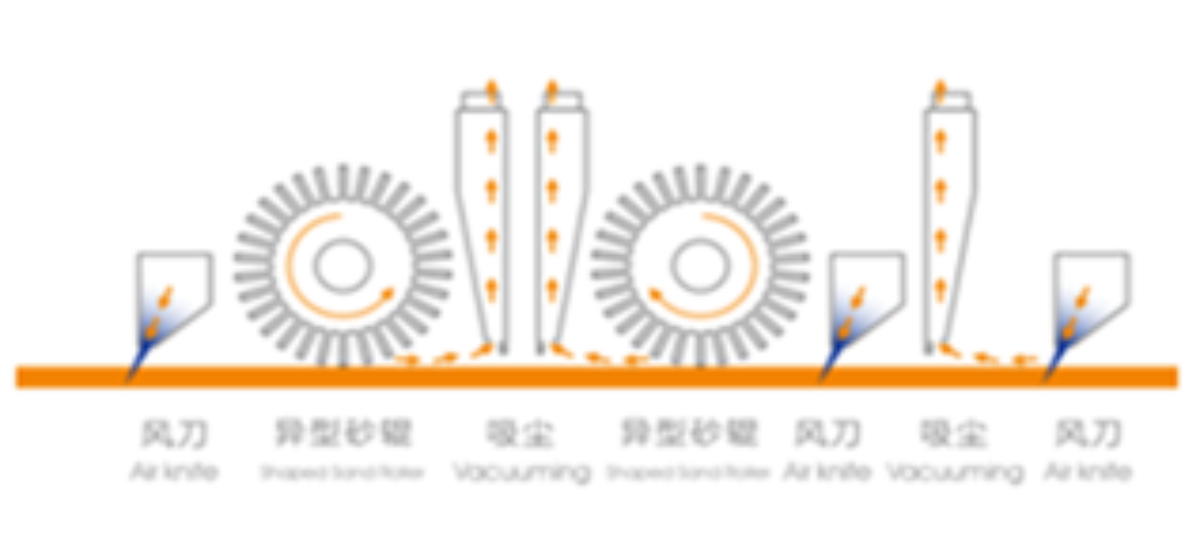

6) Air knife dust removal system

It consists of 3 air knives, 2 special-shaped sand rollers and independent lifting pressing system.

Cooperate with independent airflow to run the cavity to achieve perfect dust removal effect.





7) PLC, touch screen man-machine interface

Touch screen man-machine interface, simple and clear operation, clear operation display and fault display. PLC and frequency converter control system can realize accurate control and store a large number of sanding parameters for calling at any time.

8) Multiple surfaces can be polished at the same time, which saves labor to a greater extent.

9) Sanding cover evenly, which can polish uneven paint surface evenly.



Sandblasting machine Description of mechanical parameters:
