Botuo pumps have more than 20 years history in the pump leading field.
Our DF series plunger pump with 316L manifold,constructed with die-cast crankshaft,internal components specially with thick solid creamic plunger for long life and durability.Precision cast crank case cooling fins are anodized for maximum heat dissipation.
Construction
Triplex plunger pump,available in 4 versions
Low-high pressure packing design with integrated cooling system.
High volumetric efficiency suction/delivery valves featuring new spherical design of sealing areas
Splash lubrication
Flushing systems available on request on selected versions

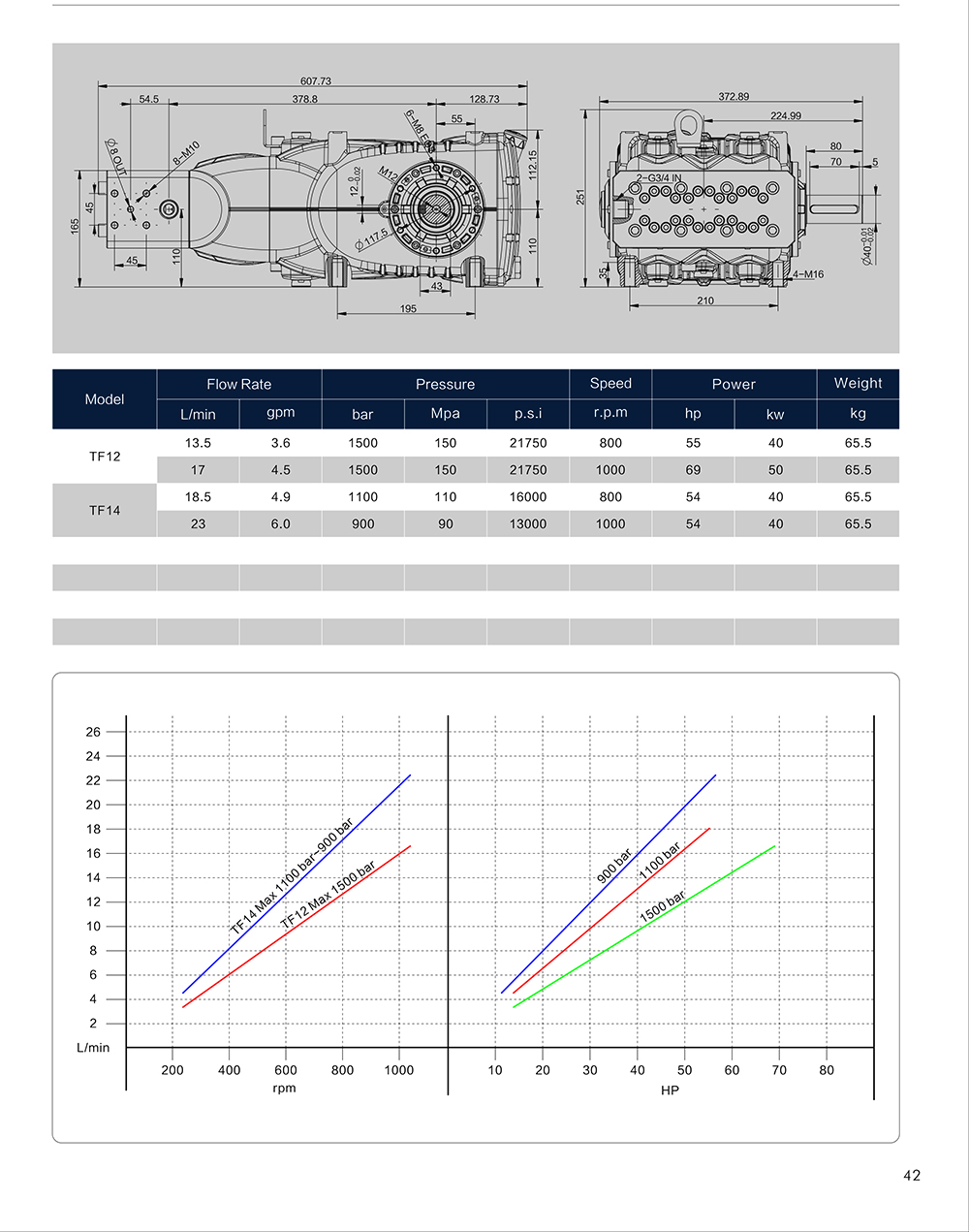

Parameter
| Model | Flow Rate | Pressure | Power | revolation |
Weight |
|
||||
| L/min | GPM | bar | Mpa | psi | hp | kw | rpm | kg | ||
| TF12 | 13.5 | 3.6 | 1500 | 150 | 21750 | 55 | 40 | 800 | 65.5 | |
| 17 | 4.5 | 1500 | 150 | 21750 | 69 | 50 | 1000 | 65.5 | ||
| TF14 | 18.5 | 4.9 | 1100 | 110 | 16000 | 54 | 40 | 800 | 65.5 | |
|
|
23 | 6.0 | 900 | 90 | 13000 | 54 | 40 | 1000 | 65.5 | |
Advantage Of Stainless Triplex Plunger Pump
Beautiful appearance
Stainless iron is very wearable but not easy to rust
Wear parts are not easy to leak
Sophisticated equipment to create high-quality pump
Application Case
Sewer Dredging
Street sprinkler
Professional car wash
Agricultural irrigation
Dust and rustIndustrial Descaling
