FL-6560TBD+SM-5030LX vertical L bar sealer

8 month ago

2 0 

SUZHOU SHENGBAIWEI PACKAGING EQUIPMENT CO.,LTD

3 year

Product details

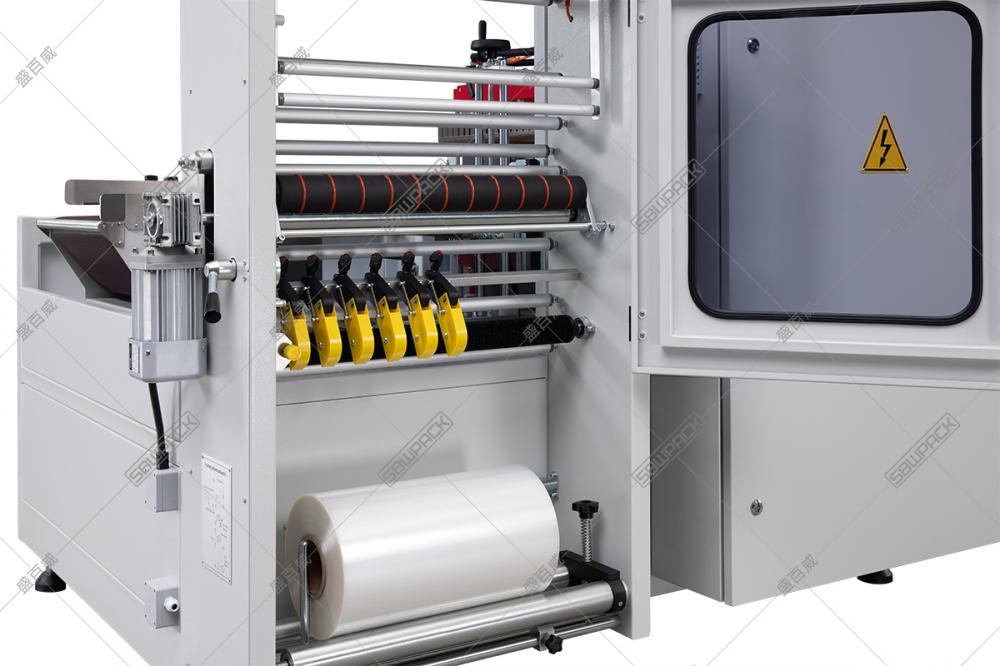

Vertical L Bar Sealer and Shrink Tunnel

Vertical L-shaped Sealing Machine Optionals

Kissing Device HMI Safety Door Switch Transaprent Material Detection Easy-to-tear Mouth

Printed Film Detection S/S Machine Frame /Customized Painting Specific Electric/Pneumatic Brands

Scope of Application

Suitable for the packing demands of the mass prodution in industries such like electronics, hardware, plastics, software, food, printing, pharmaceuticals, floors and other construction materials.

Application films: POF/PE.

Model	FL-6560TBD	FL-8075TBD	SM-5030LX
Machine Dimensions (mm)	2015×1470×1300	2430×1550×1300	1872 X 1035 X 1305
Tunnel Chamber Size L(mm)/	/	/	1500 X 500 X 300
Max Packing Size (mm) L+H(mm) H	≤600	≤800	1300 X 400 X 250
Max Packing Size (mm) W+H(mm) H	≤580	≤720	/
Max Sealing Size LxW (mm)	650 X 500	850 X 700	/
Packing Speed (pcs/min) Conveyor speed（m/min）	20~35	20~35	/
Capacity (pcs/m)	/	/	0~20 m/min
N.W. (kg)	850	930	650
Power (kw)	3.2	3.5	16
Power supply	1PH 110V/220V 50/60Hz	1PH 110V/220V 50/60Hz	3PH 220V380V 50/60Hz
Air pressure （kg/cm²)	6~8	6~8	/
Applicable Film	POF	POF	POF/PE

Vertical L-bar Sealers Technical Features

L-bar sealing blades vertically driven by cylinder, ensuring the seams in the center of products with less wrinkles. Suitable for packing large-sized products and those requiring better shrinking effect.

One-piece heat-resistant alloy blades, Dupont Tefloncoated, anti-adhesive and easy to clean.

Packing size adjustable, no need to change module or bagging former and the sealing openess adjustable by motor.

Shrink Tunnel Technical Features

Blowing system installed below with the whole shrinking process visible through the observation window.

Conveyor speed and air volume controlled by inverters, wind whole opening and blowing direction adjustable.

Chamber can be opened, easy for cleaning and maintenance.
