SHAFT COLLAR

Shaft Collars

Shaft Collars are common pieces of hardware used for holding bearings and sprockets to shafts, situate components in motor and gearbox assemblies, and serve as mechanical stops. Shaft collars can be found in virtually any type of machinery and are frequently accessories to other components.  Shaft collars provide three primary functions: 1) holding components in place, 2) locating or positioning components on a shaft, and 3) creating an attachment between shaft and another component. Despite their simple design, shaft collars play an important role in a wide range of industrial applications.

Yokelink Shaft Collars come in both inch and metric sizes and are available in either Carbon steel or 304 Stainless Steel. Yokelink shaft collars includes set-screw collars as well as one-piece (single-split) and two-piece (double-split) collars with zinc plated or black oxide finish. Our shaft collars are available for most common sizes ranging from 3/16″ to 4″ and 5mm to 100mm.

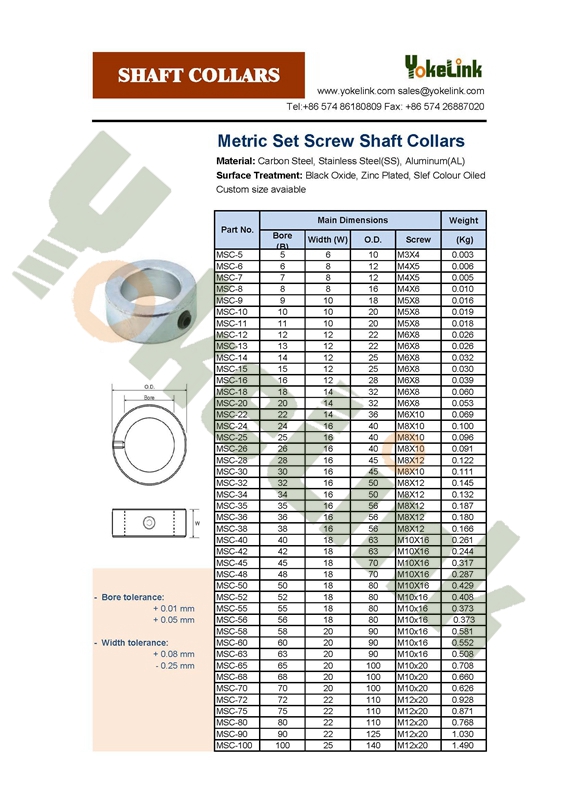

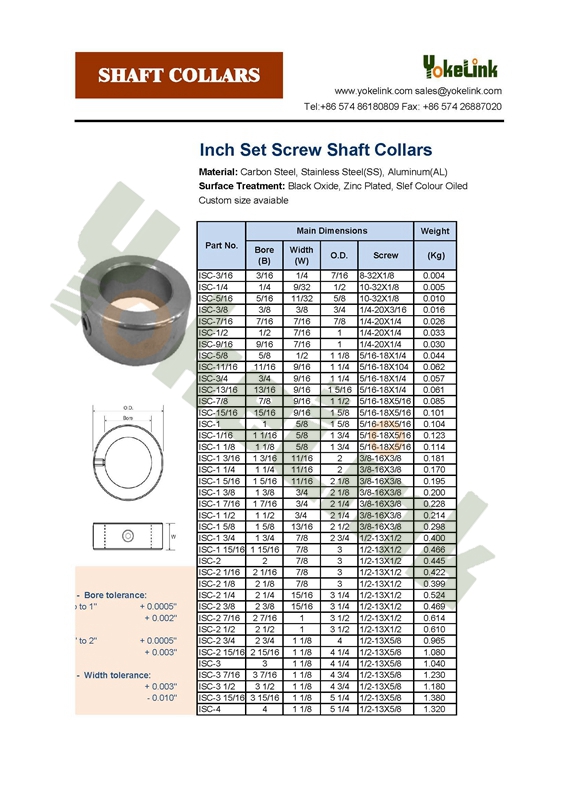

Set Screw Shaft Collars

Set screw shaft collars are a single piece shaft collar without splits or relief cuts. They feature a set screw at the outer face of the collar that is perpendicular to the inner diameter of the collar.

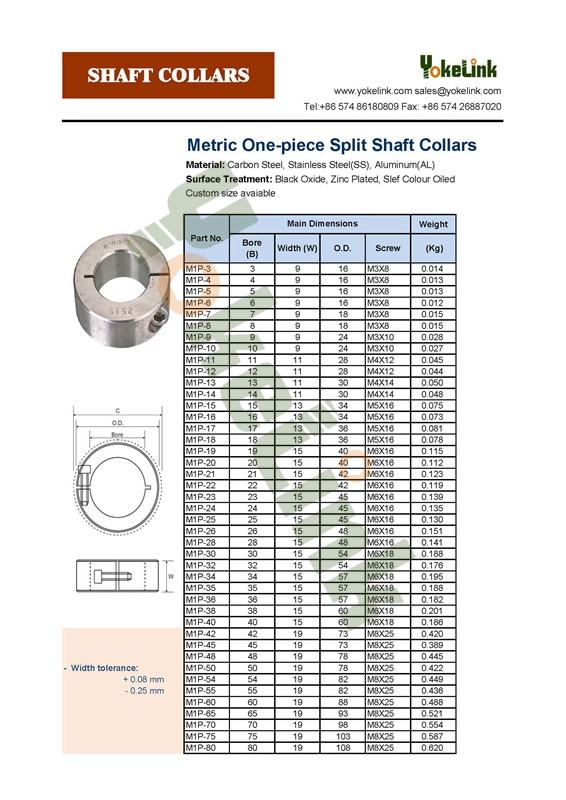

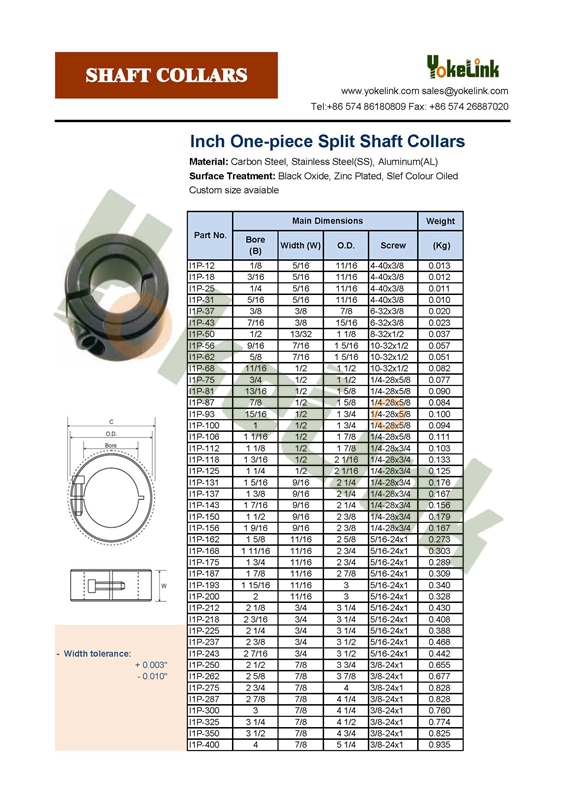

One-piece (Single) Split Shaft Collars

One-piece split shaft collars, also known as single split shaft collars, have a single slit opening that is closed with the integrated hex socket cap screw. Single split shaft collars are only installed axially onto a shaft.

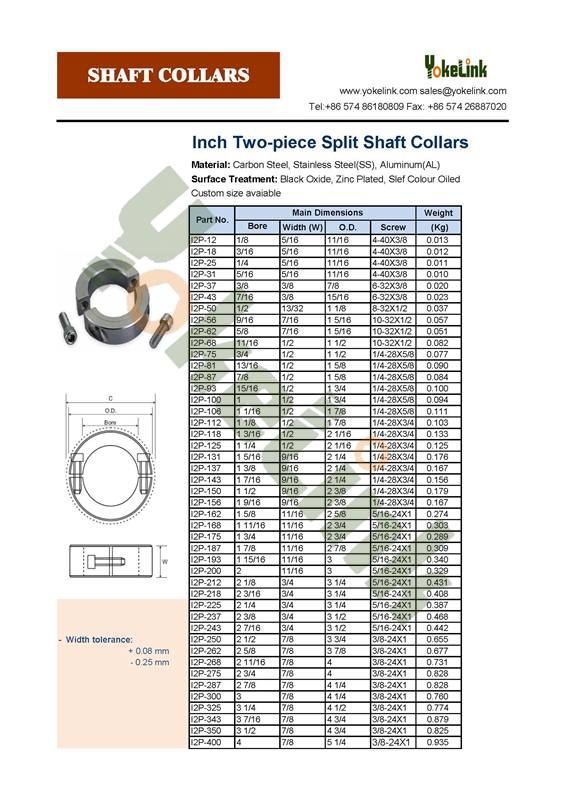

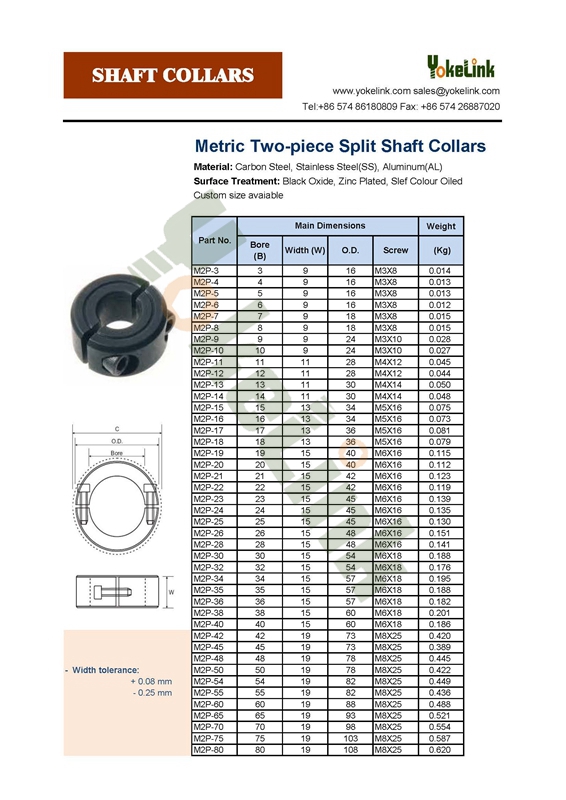

Double Split Shaft Collars

Double split shaft collars, or two piece shaft collars, are a two piece collar held together by two integrated socket cap screws. These shaft collars can be installed either radially or axially on a shaft.

When you need Shaft Collars, refer to above our catalog. We offer them in a full selection of sizes, provide the diameter or part number to get a quote on these shaft collars, leave your message, or send us an email. You can also call us to get answers to your questions and place your order.
