Compact Design Optical Spectrometer
5 year ago
The compact spectrometer-Firefly 4000 is designed with compact appearance, convenient operation, customized wavelength range and resolution and fit various applications support .With a footprint that measures roughly the size of a portable hard drive (89 mm x 63.9 mm x 36.2 mm). The Fiber optic spectrometer is perfect for the fileds of laser spectral analysis fluorescence, spectral analysis, LIBS spectral analysis, absorbance measurement, reflectivity transmittance measurement, food and agriculture, chemical or biological research, environmental sciences and film thickness measurement and so on.
CNI also provides many kinds of spectrum analysis accessories, such as optical filter, laser power meter, laser goggles, spectrum calibration laser, tungsten Lamp, halogen light source, laser safety protection board, etc.
|
Features
|
11Applications1111111111111111111111111
|
Model
Spectral Range
Aurora4000 General Series
GE 350-1100nm
GE 230-530nm
GE 200-850nm
Typical Spectrometer
Wavelength
Aurora
4000
Model
Optrical resolution (nm)
Entrance aperture (um)
10
25
50
100
200
200-850nm
1.01
1.33
2.07
3.47
7.48
230-530nm
0.47
0.62
0.95
1.73
3.45
350-1000nm
1.01
1.33
2.07
3.74
7.48
Standard Specifications
Detector
Detector
Toshiba TCD 1304DG liner CCD array
Wavelength range
200-1100nm optional (max.650nm span)
Pixels
3648 pixels
Pixel size
8*200um
Spectrometer
<1.0nm
Dimensions (nm)
89*63.9*36.2
Weight (g)
170
Optical resolution
Signal-to-nois-ratio
~300:1 (at full signal)
Dynamic range
2*10^9 (system)
Integration time
4ms~10s
Electronics
Power consumption
450mA@5VDC
Data transter speed
Full scans into memory every 4ms with USB 2.0; every 18ms with USB 1.1
Inputs/ outputs
5 inputs and 5 outputs (opto-isolator inputs/ outputs)
Strobe functions
Yes
Connector
30-pin connector
Applications

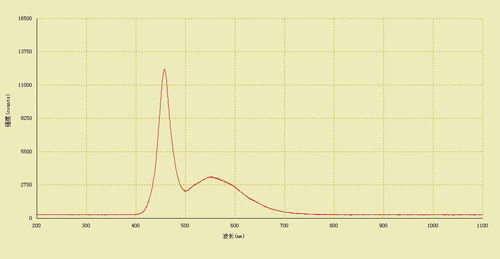

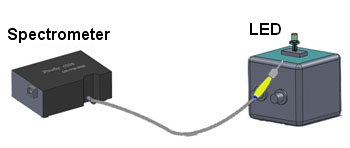

LED Spectrum

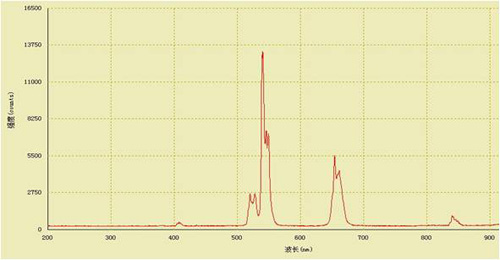

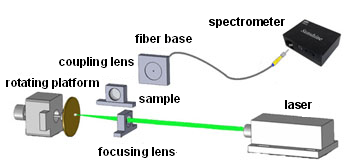

Rare Earth Element Fluoresence Spectrum
Reflection Chroma Testing
Related Products
laser ttl
Yellow Laser Module
laser power detector
445nm blue laser
Single-frequency fiber laser
Mid IR lasers
589 nm laser
Raman probe
Diamond Girdle Laser
Single longitudinal mode laser
Certification
Copmpany Information
Changchun New Industries (CNI), founded in 1996, located in Changchun, CHINA, is a manufacturer of solid-state and diode laser systems. CNI possesses accountable and dependable service as well as quality products with compact design, high reliability, good performance. The products are widely used for scientific research, equipment manufacturing, biomedical experiment, precision measurement, entertainment, radar communication, material processing, process control, online detection, investigation equipment and other fields.
