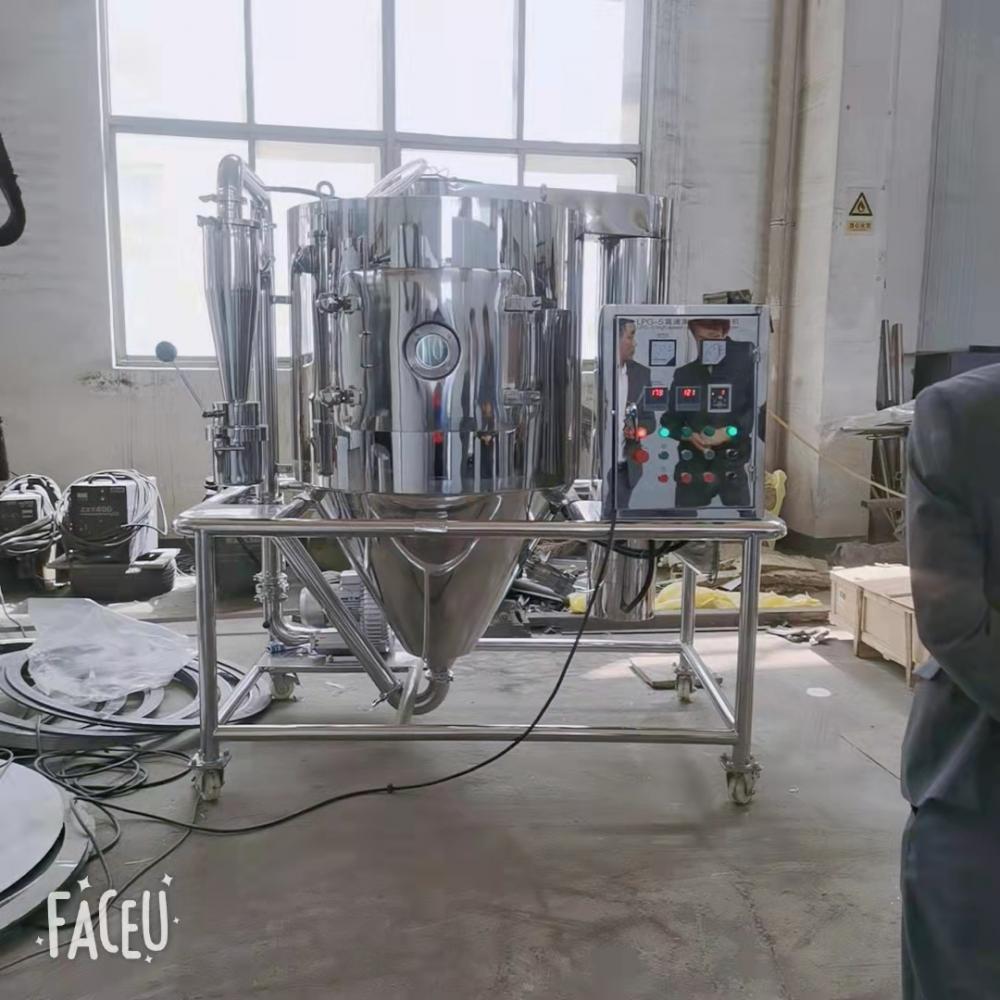

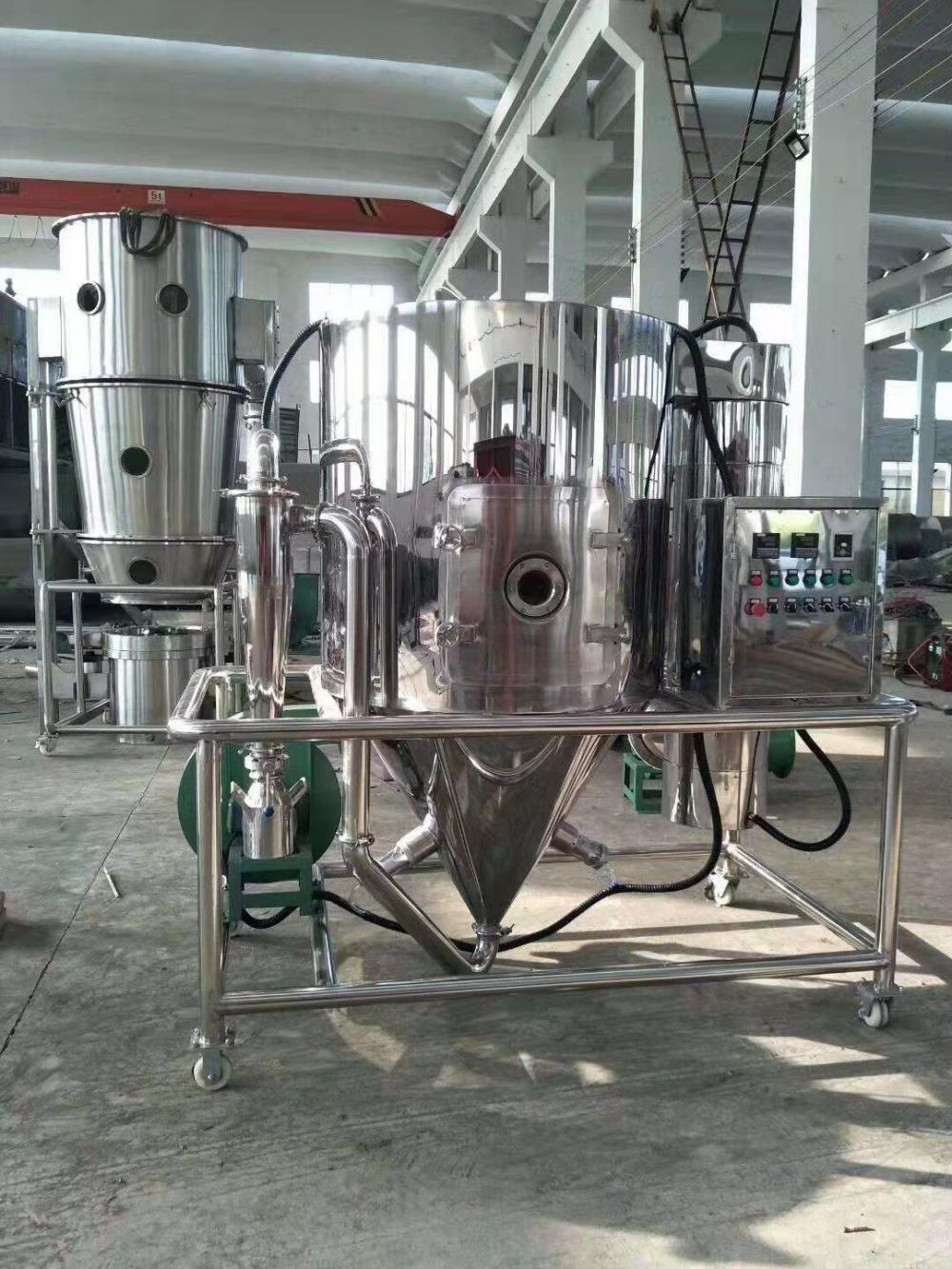

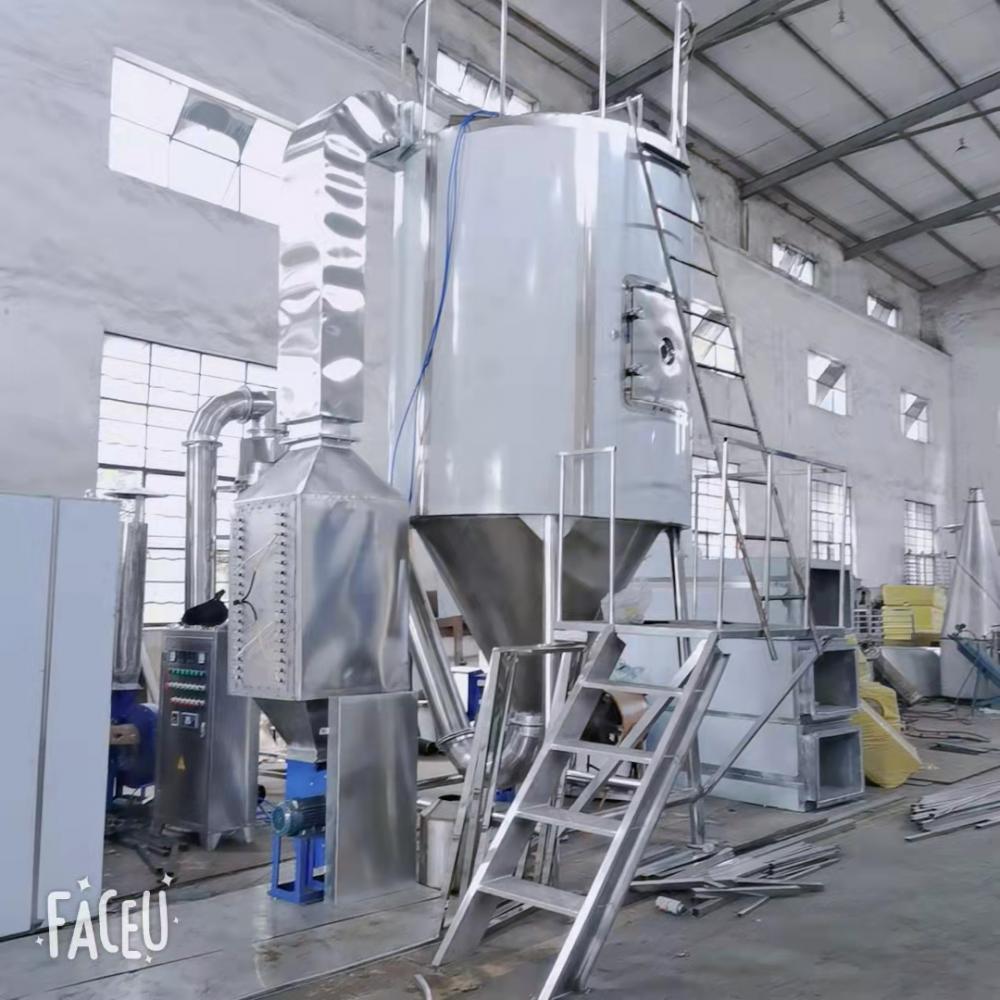

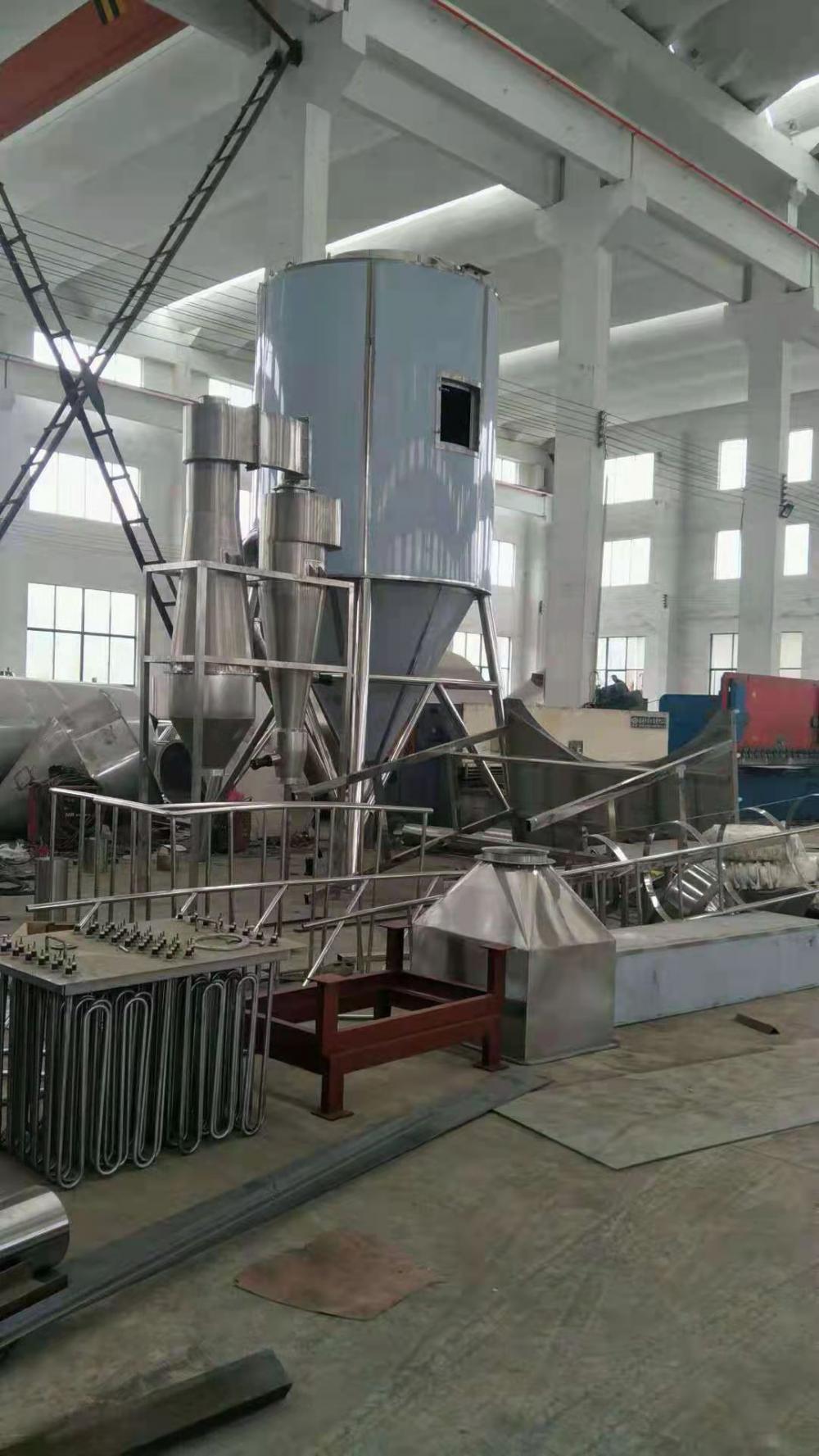

Traditional Chinese medicine extract spray dryer
3 year ago
Key advantages
The drying speed is fast, the surface area of the material liquid is greatly increased after atomization, and 95%-98% of the water can be evaporated instantly in the hot air flow. The drying time only takes a few seconds, especially suitable for the drying of heat-sensitive materials
The product has good uniformity, fluidity and solubility, high purity and good quality
The production process is simplified and the operation and control is convenient. For the wet content of 40%-60% (special materials up to 90%) of the liquid can be dried into powder products, drying without crushing and screening, reduce the production process, improve the purity of products. The particle size, bulk density and moisture of the product can be adjusted within a certain range by changing the operating environment, which is very convenient to control and manage
Working principle
After filtration and heating, the air enters the air distributor at the top of the dryer, and the hot air enters the drying
chamber evenly in a spiral shape. The material liquid passes through the high speed centrifugal atomizer at the top of the tower. (rotating) spray into very fine mist like liquid beads, and hot air parallel flow contact, in a very short time can be dried into finished products. The finished products are continuously output from the bottom of the drying tower and the cyclone separator, and the exhaust gas is discharged by the fan
MAIN TECHNICAP PARAMETER
|
Type |
Inlet temperature
(℃）
|
Outlet temperature
（℃）
|
Max water evaporation capacity
(kg/h)
|
Power
(kw)
|
Rotation speed
(rpm)
|
Dried powder collecting % |
Size(mm) |
| 5 |
140-350 |
80-90 | 5 | 9 | 25000 | ≥95 | 1800x930x2200 |
| 25 |
140-350 |
80-90 | 25 | 36 | 18000 | ≥95 | 3000x2700x4260 |
| 50 | 140-350 | 80-90 | 50 | 63 | 18000 | ≥95 | 3700x3200x5100 |
| 100 | 140-350 | 80-90 | 100 | 81 | 18000 | ≥95 | 4600x4200x6000 |
| 150 | 140-350 | 80-90 | 150 | 99 | 15000 | ≥95 | 5500x4500x7000 |
| 200-2000 | 140-350 | 80-90 | 200-2000 | customized | 8000-15000 | ≥95 | customized |
Remarks:
1.delivery:20 working days in factory
2.Payment:30% advance,70% before shipping by Paypal/TT
3.We are manufacturing company with the factory price and high quality
4.We can provide offer with FOB,CIF,CFR as consumer requirements
5.If u feel interested in this machine or sifting machine or spices pulverizer or rotary vacuum dryer or powder mixer machine or capsule filling machine or capsule polishing machine or capsule counting machine or tablet press etc someday that we produced u can tell me your specific requirement so that i can better recommend more suitable for your demands machine,what do u think
