IVMS (In-Vehicle Monitoring System)

4CH Waterproof HD In Vehicle Monitoring System

Detailed description:

4 Channel Vehicle Monitoring System :
This video surveillance system is equipped with 4 AHD cameras ， Each lens can be adjusted at different angles for maximum visibility of 150° and also comes with a remote control

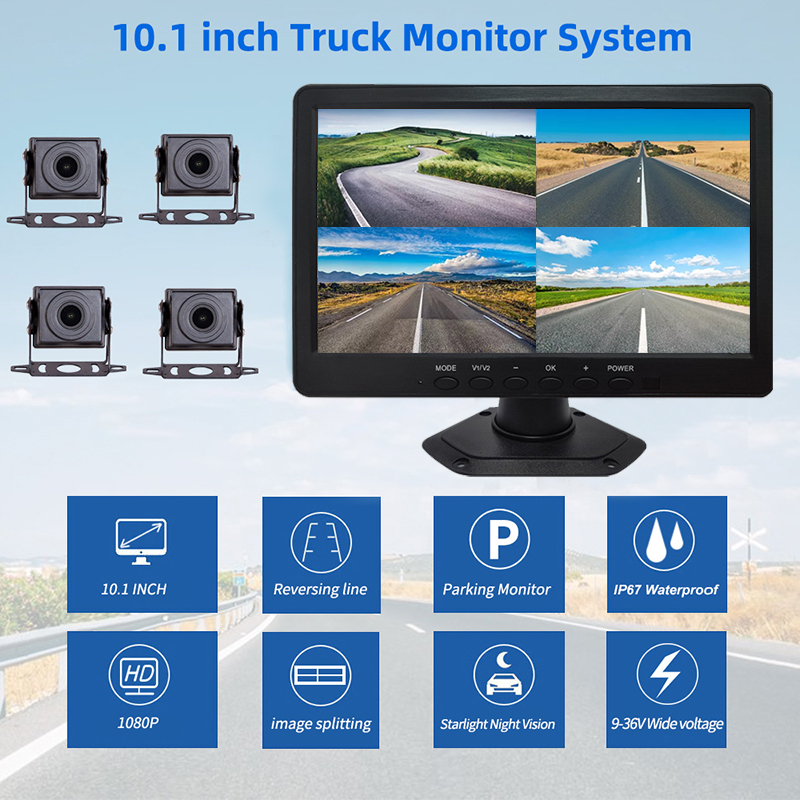

10.1 inch Vehicle Monitor：
Equipped with 10.1 inch IPS HD monitor with built-in quad control box screen function. It supports 4 video inputs allowing multiple viewing modes - single full view, split dual view and split quad view
Night Vehicle Camera Systems :
4 AHD backup car camera. IP 67 waterproof rating and matt full-color night vision with automatic image adjustment for day or night use. Both have PAL/NTSC automatic switching system and 600 resolution lines
Easy installation：

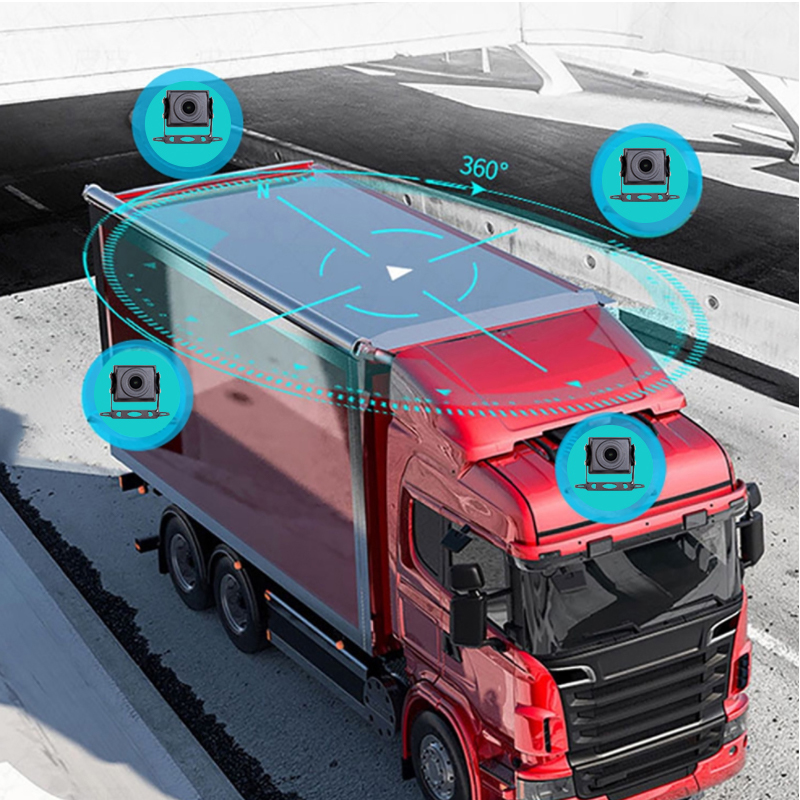

Just connect the monitor to the power supply, and the power can be transmitted from the 4-core aviation connector extension cable to the camera, without connecting more cables and solving the inconvenience of wiring. Designed for trucks, trailers, 18 wheelers, vans, buses and other large vehicles. Store the device in the trunk of the car and place up to 4 cameras on the rear, windshield and dashboard to securely mount the device on the car.
Sanan friendly service：
30-day money-back service, 12-month warranty, lifetime technical support. If you have any doubts, please contact us and we will reply anytime.

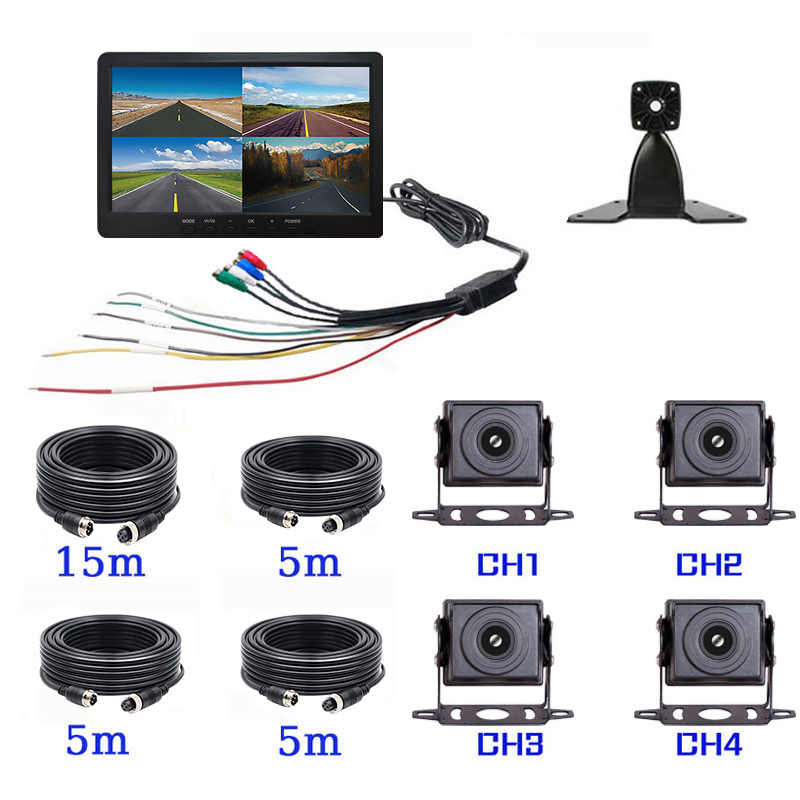

Product Family Portrait

Features:

10 inch Quad view monitors：

◆ Material: ABS
◆ Voltage: DC9V-36V
◆ Chipset: QZT59
◆ Panel: IPS screen
◆ Screen size: 10.1''
◆ Screen resolution: 1600*720
◆ Power output: 50000MA
◆ Work temperature:-20-60°
◆ Storage: TF card, maximum support 256GB
◆ Format: PAL/NTSC

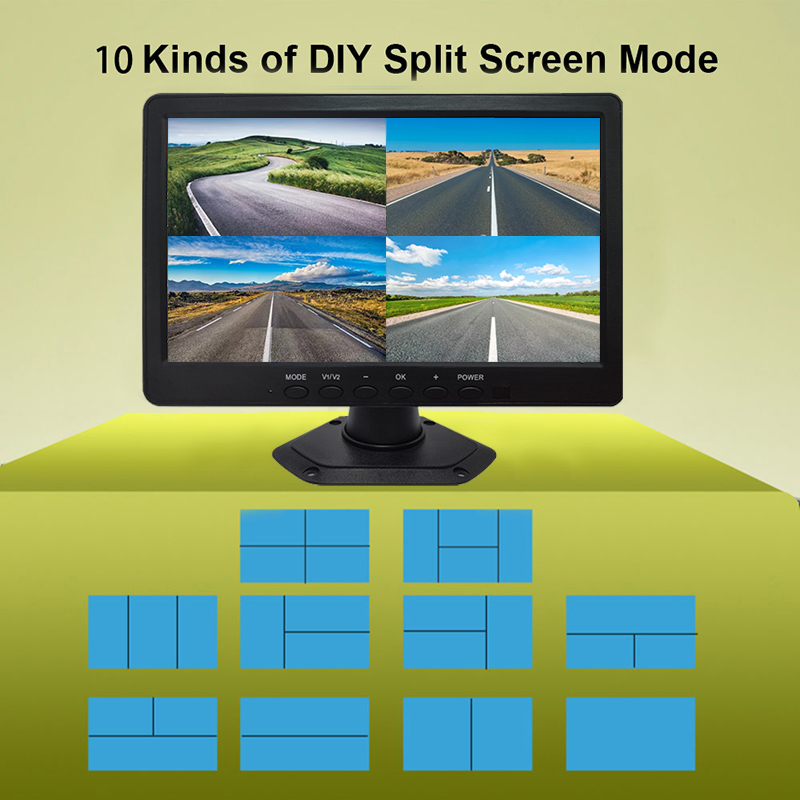

◆ Screen display: 10 modes to choose from

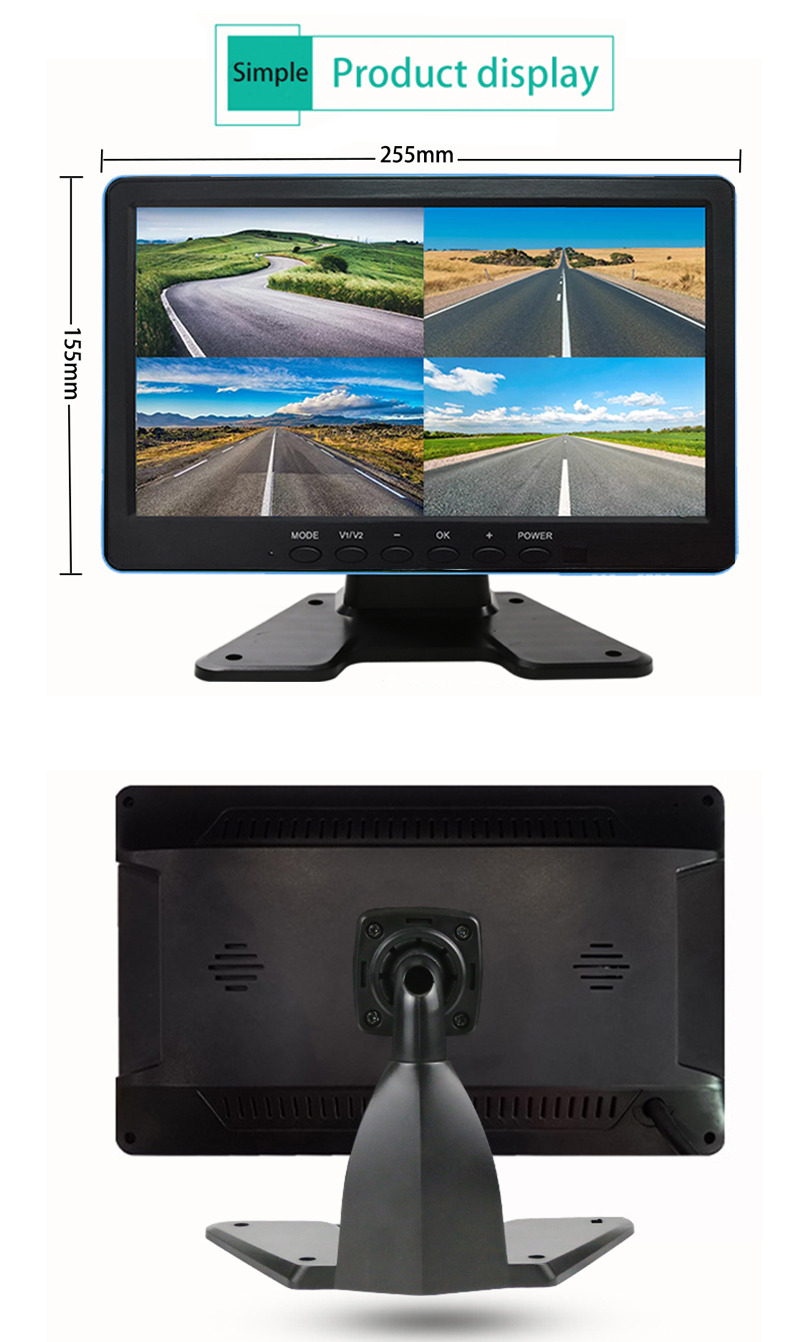

◆ Size: 250*163*30mm
◆ Language:English/French/Spanish/German/Italian/Portuguese/Dutch/Chinese/Turkish
◆ Support: MP5, Bluetooth, FM, parking monitoring, microphone, voice control, reversing line, mirror display, license plate settings, Loop recording, TF card storage etc.

AHD Camera：
◆ Material: ABS
◆ Type: 4CH 1080P AHD camera
◆ Format: PAL/NTSC
◆ Night Vision:  Full Color Night Vision
◆ Waterproof grade: IP67
◆ Clear level: 1080P
◆ Lens: Dual Aperture Upgraded Lens
◆ Viewing angle: 150°, vertical rotation 90°
◆ Working temperature: -20℃～80℃
◆ Size: 47*36*32mm
◆ Interface: 4-pin aviation header interface

Extension cord：
◆ 4 extension cables with 4-pin aviation connectors
◆ One cable provides both video signal and power, no need to connect additional power cable to the camera
◆ Features: strong anti-interference ability, stable signal transmission, threaded connection, anti-dropping, waterproof shell, etc. to protect the connector from rusting
◆ Quantity: 15M*1, 5M*3
