Product details

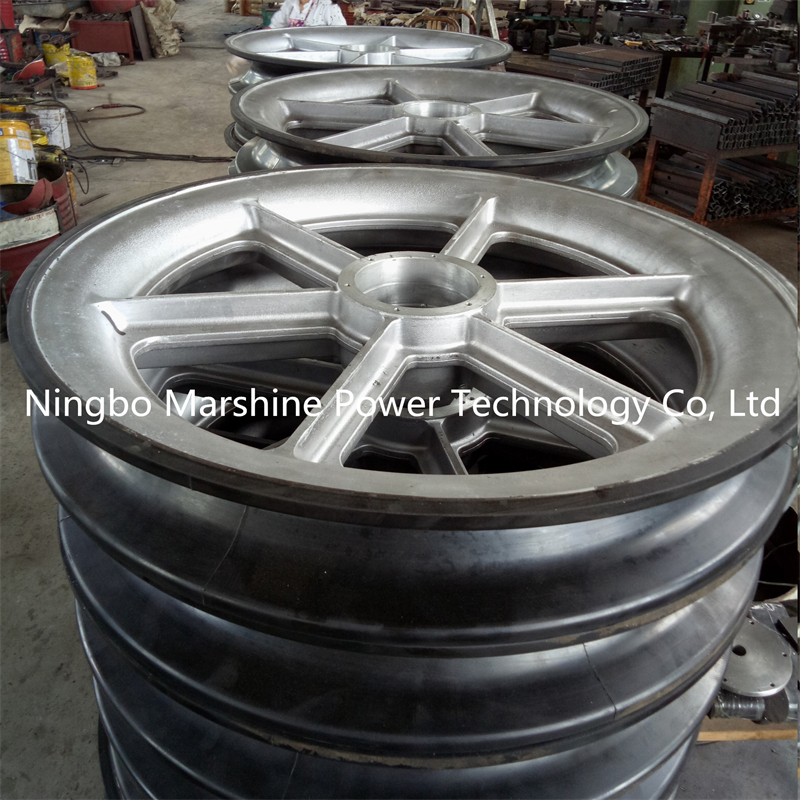

High Performance Big Aluminum Wheel Pulley

The blocks are suitable for stringing one bundled conductor lines. The wheels are made of aluminum alloy. Lateral ones are mounted on ball bearings with the groove lined by a neoprene ring; the central one is mounted on double-row ball bearings with grooves made from wear-proof interchangeable nylatron sectors. The frame is made of galvanized steel. The blocks are supplied with fixed connection. Grounding device or complete conductive sheaves are available upon request.

Technical Parameters

Item number	Model	Diameter(mm)	Width(mm)	Blank weigh(kg)
10010L	80*50	80	50	0.2
10011L	120*35	120	35	0.3
10012L	120*58	120	58	0.5
10013L	120*80	120	80	0.6
10014L	120*130	120	130	0.7
10015L	120*200	120	200	1.2
10016L	140*160	140	160	0.9
10017L	140*210	140	210	1.1
10018L	160*40	160	40	0.5
10020L	160*230	160	230	1.7
10021L	200*40	200	40	0.6
10022L	200*60	200	60	0.8
10024L	250*60	250	60	1.2
10026L	270*60	270	60	1.6
10027L	320*60	320	60	1.9
10028L	320*80	320	80	2.2
10029L	408*80	408	80	4.1
10050L	508*75	508	75	6.0
10051L	508*100	508	100	7.0
10052L	660*100	660	100	10.0
10055L	822*110	822	110	18.0

Features:

(1) Light weight: reducing dead weight at the end of a boom, which provides more greater stability and lifting capability.
(2) Improved wire rope life: self-lubricating, hardness lower than steel rope.
(3) Improved the property of crane ,cable , little or non maintenance.

Aluminum Pulley

To support the Transmission work, Marshine Power has Tubular Gin Pole, Come Along clamp, wire rope pulley block, nylon sheave hoisting tackle, hydraulic cable puller and tensioner ,conductor installation devices all are OEM and professionally produced per ISO 9001:2008, which are being sold to over more than 50 countries in the world. Some items like emergency restoration tower and crossing structure, we can customized, and the safety tools and accessories, are not demanded the MOQ. You can freely help you out either Tech issue or Products requirements. Pls approach us. Thanks.
