Cement rod foot buckle

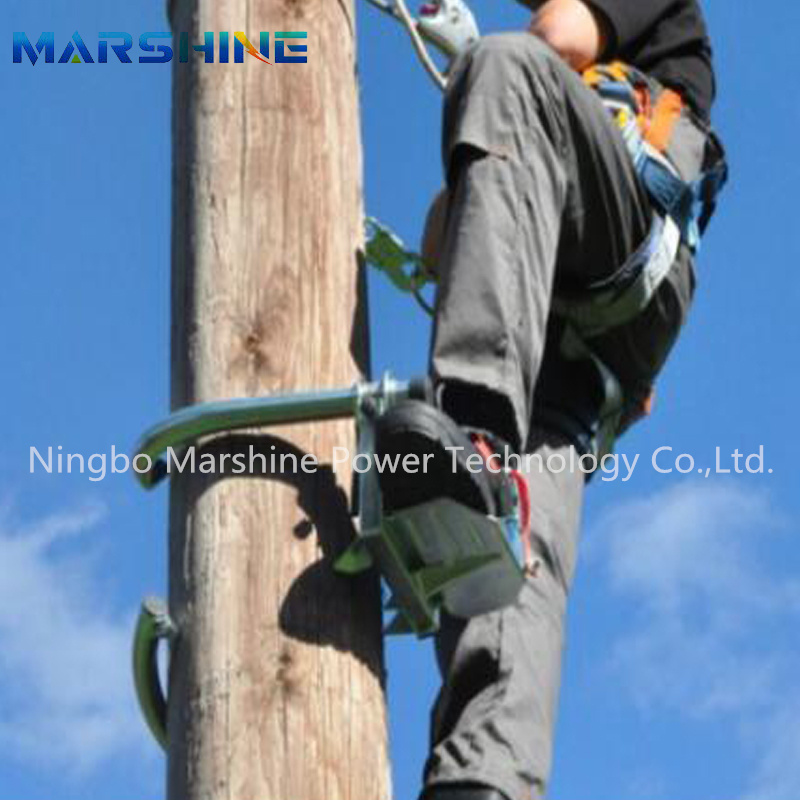

3 year agoAdjustable Wooden Pole Climber With Steel Sawtooth Spikes
Application
It is used to climb the wood pole.
Features
1 Special heat treatment
2 Weight:3.0-3.5kg
4 Easy operating
5 High quality and best price
Production assurance description
1. Our climbers are produced according to local standard design and organizations ,
we will responsible for all quality problem for half year if the products are under normal use.
2. The following conditions are not in the scope of quality assurance:
Deformation caused by stressing application not according to the stated testing load.
Corrosion caused by being affected with damp.Lack of nameplate, date of manufacture or test lot No.
3. storage,The climbers should be stored in the well ventilated place and you should keep it from corrosion.
Detailed Data
Model
JK-T-M300
JK-T-M350
JK-T-M400
JK-T-M450
The biggest opening distance(mm)
300
350
400
450
Weight (kg)
3.0-3.5
3.0-3.5
3.0-3.5
3.0-3.5
Outer diameter of cement rod(mm)
Φ190-Φ300
Φ250-Φ350
Φ250-Φ400
Φ250-Φ400
Rated load(KN)
1.00
1.00
1.00
1.00
Testing load(KN)
1.65
1.65
1.65
1.65
Overload(KN)
2.25
2.25
2.25
2.25
Testing time(min)
5
5
5
5
Remarks
For 8m wood pole
For 10-12m
wood pole
For 15m wood pole
For 18m wood
pole
To support the Transmission work, Marshine Power has Tubular Gin Pole, Come Along clamp, wire rope pulley block, nylon sheave hoisting tackle, hydraulic cable puller and tensioner ,conductor installation devices all are OEM and professionally produced per ISO 9001:2008, which are being sold to over more than 50 countries in the world. Some items like emergency restoration tower and crossing structure, we can customized, and the safety tools and accessories, are not demanded the MOQ. You can freely help you out either Tech issue or Products requirements. Pls approach us. Thanks.
