LBW2500PB-07 Outside Assembly IGU production line

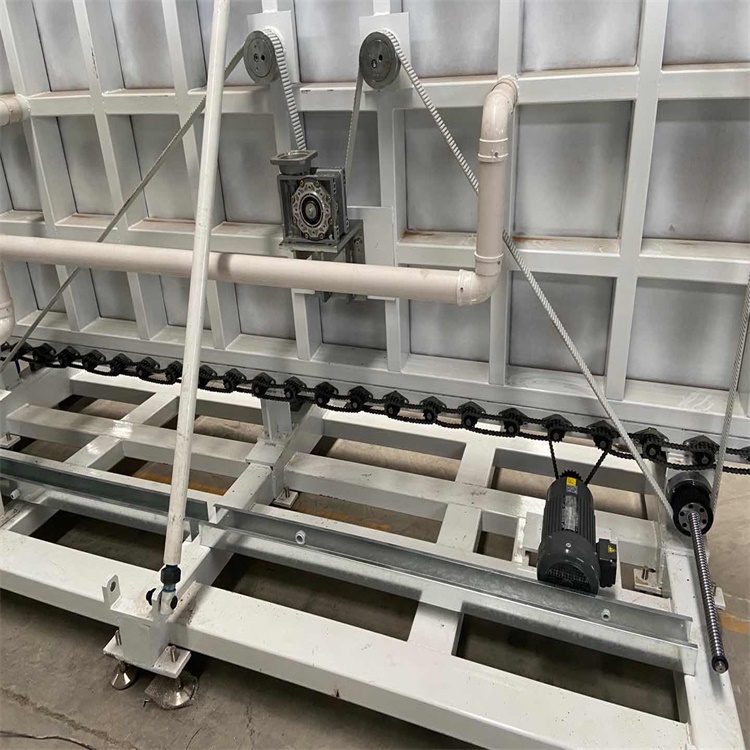

Vertical Glass washing and Press Machine with function to produce double glazing,triple glazing and step glazing.IGU insulating glass produce line can produce maxium insulating glass thickness 60mm.Press machine can open 450mm for customer to fix and repair machine.
Features：
(1) Adopts the PLC to control the working condition,touch screen and man-machine interface.
(2) Low-e glass automatic diagnosis system
(3) Cleans coating glass and low-e glass
(4) Adopts no oil water-proof bearing in the washing section
(5) Conserves energy interrupted type automatic operation system
(6) Produce double glazing and triple glazing

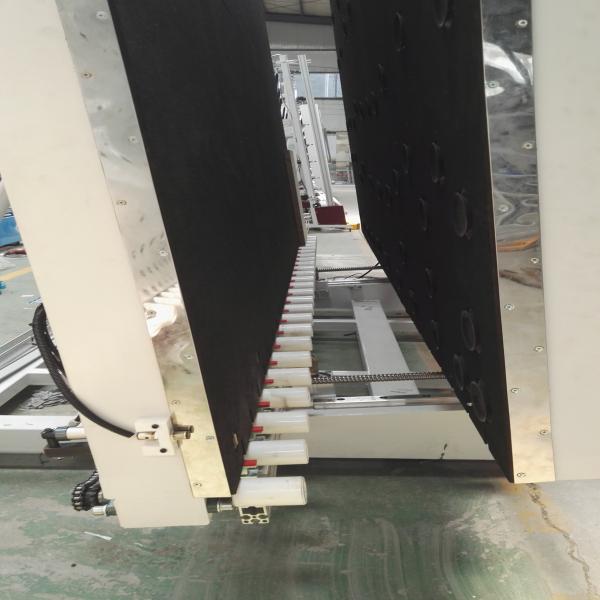

(7) Servo motor and screw ball provides power for plate press section,able to open the 450mm for maintenance.
|
Technical Parameter
|
|
Power Supply
|
380V/50HZ 35Kw | ||
|
Dimension(LxWxH)
|
22800x2600x3050mm | ||
| Production quantity | 600-700IG units/8hs | ||
| Max Glass Size | 2500x3500mm | ||
| Min Glass Size | 300x400mm | ||
| Washing Glass Thickness | 3-15mm | ||
| Washing Glass Speed | 0-10m/min | ||
| Insulating Glass Thickness | ≤48mm | ||
| Transmission Glass Speed | 45m/min | ||
| Compressed Air: | 0.8m³/min | ||
| Air Pressure: | 1Mpa |
Other Items of our Company；
1 Insulating Glass Sealing Robot
2 Desiccant Filling Machine
3 Aluminum Spacer Bar Bending Machine
4 Hot Melt Butyl Extruder Machine
5 CNC Vertical Glass Drilling and Milling Machine
