Cutting 38mm round tube

Laser cutting machine CTK-C22-LN

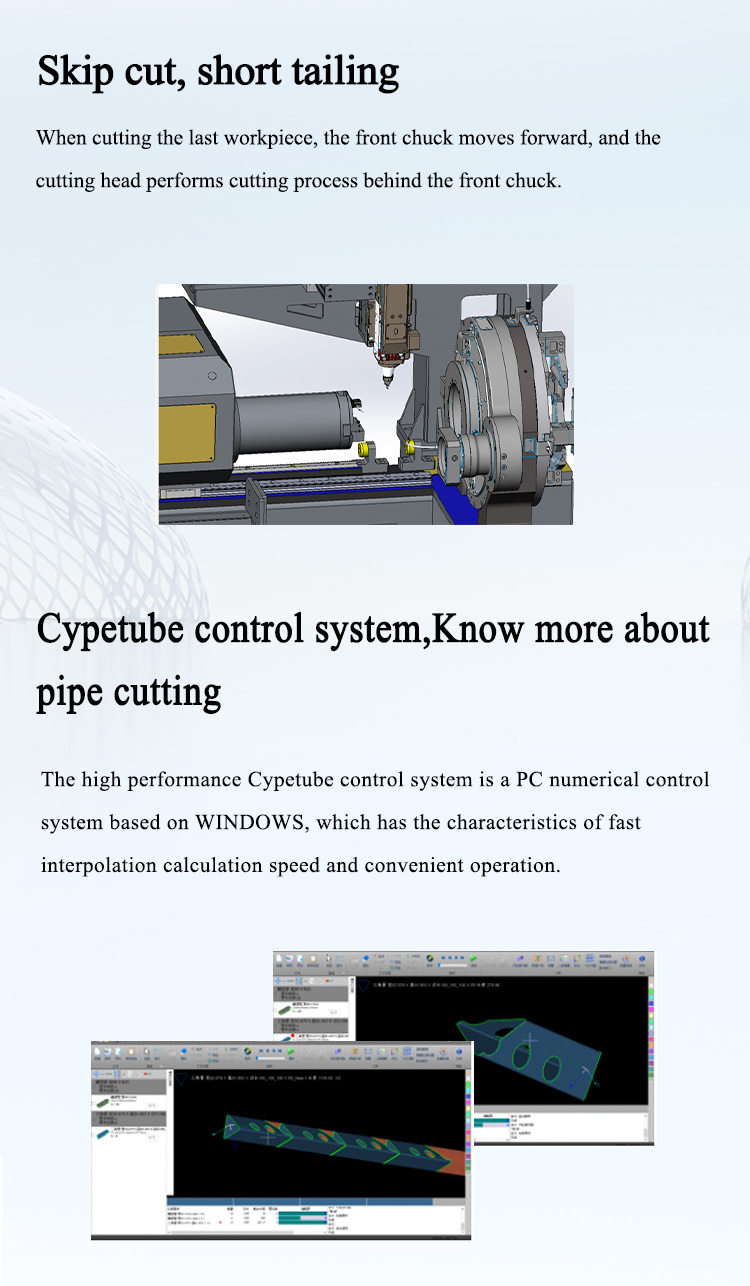

1. Material saving:zero ultra-short tail material, breaking industry records and increasing material utilization

2. This laser pipe cutting machine has high range compatibility: Ф12~220mm pipe diameter, compatible with round pipe, square pipe, oval pipe, special-shaped pipe, etc., with obvious advantages for thin-walled pipes.

3. Laser cutter has the high-precision chuck:  fast two-speed adjustment of the jaws, long-term accuracy.

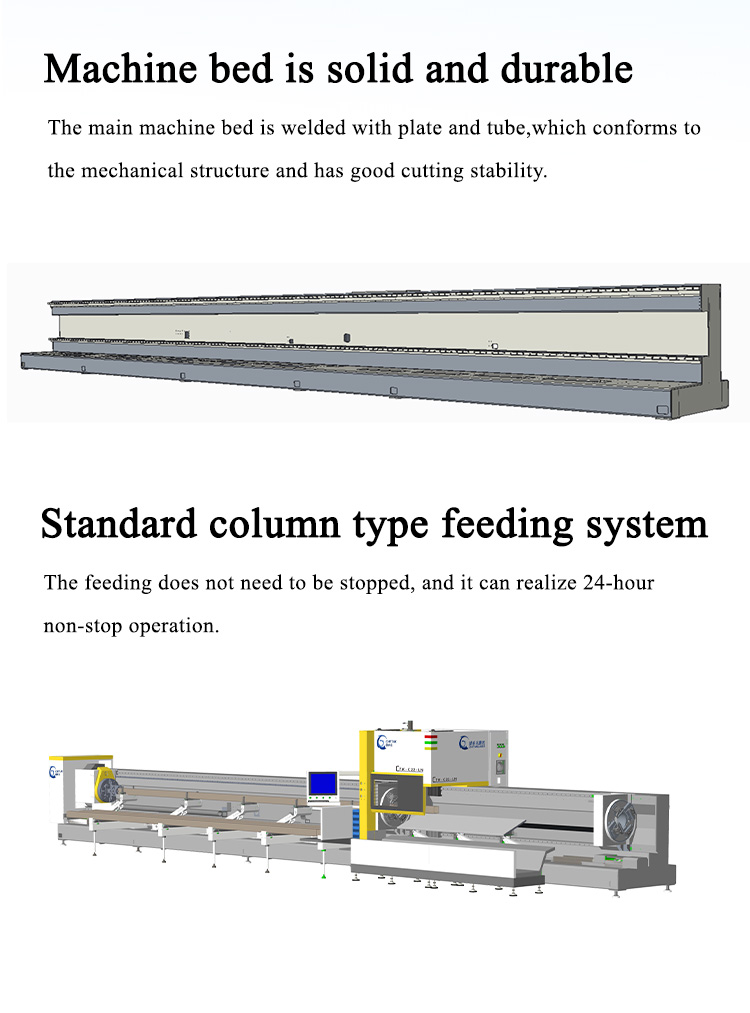

4.Automatic feeding of the metal pipe cutter: The structure of the side-mounted machine tool is equipped with a semi-automatic feeding machine as standard. The feeding does not need to be stopped, and it can realize 24-hour non-stop operation.

5.The machine diameter:

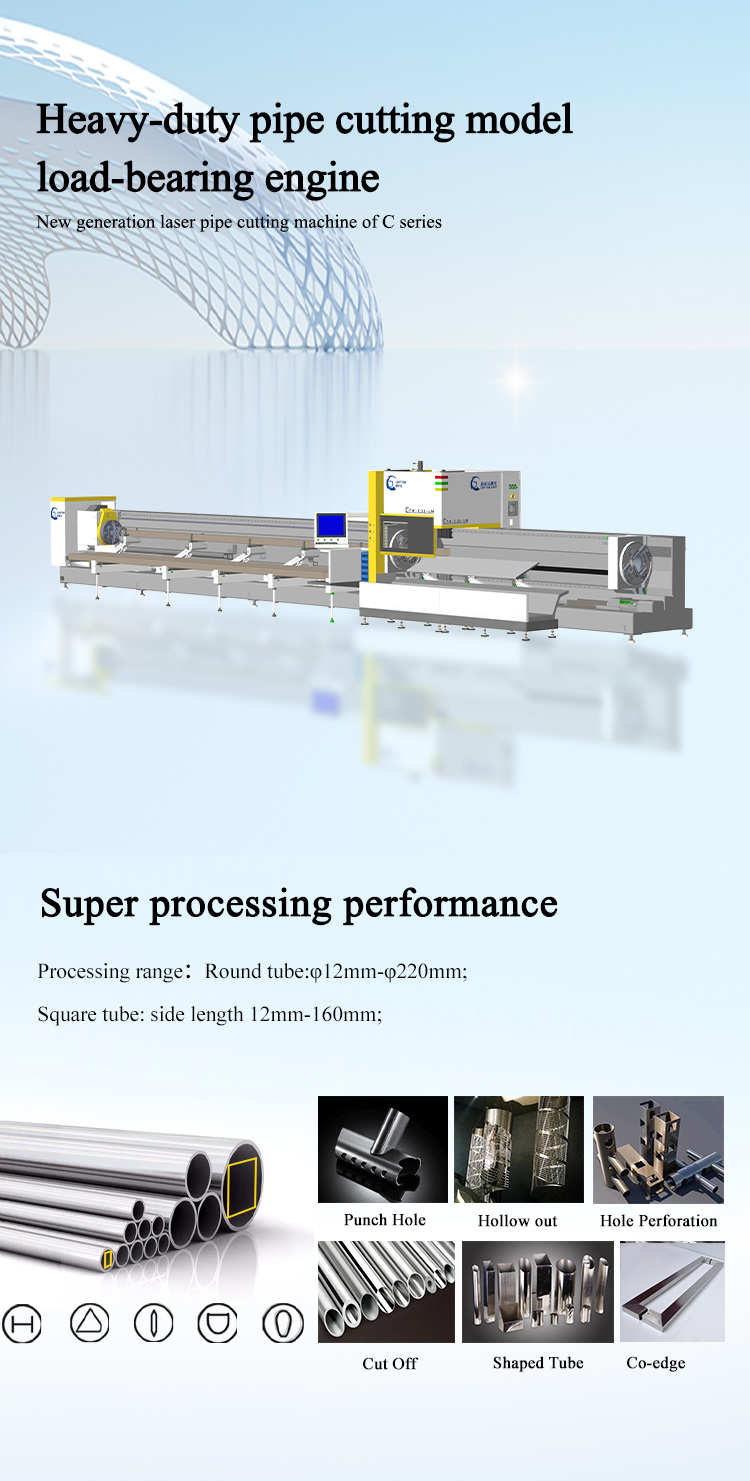

Pipe processing range Round tube: φ12mm-φ220mm; Square tube: side length 12mm-160mm

Manual feeding mm:7000

Automatic feeding length（mm):5800~6500（Non-standard 5000~7000）

Cycle feeding :First feeding≤50，Subsequent feeding≤18

Loader carrying（kg): 500

The maximum load-bearing capacity of a single pipe for manual feeding（kg): 200

The maximum load-bearing capacity of a single pipe with automatic feeding（kg）:160

Chittak has many other pipe processing products:Automatic 3D Laser Pipe Cutting Machine, Handheld Laser Welding Machine, Saw Blade Pipe Cutting Machine, Pipe Bending Machine, Pipe Chamfering Machine,Metal Plate Cutting Machine and Accessories like saw blade etc.. Welcome your enquiry and hope build the business relationship with you !
