take away disposable foam lunch food box forming machine1
3 year ago
foam food box machine

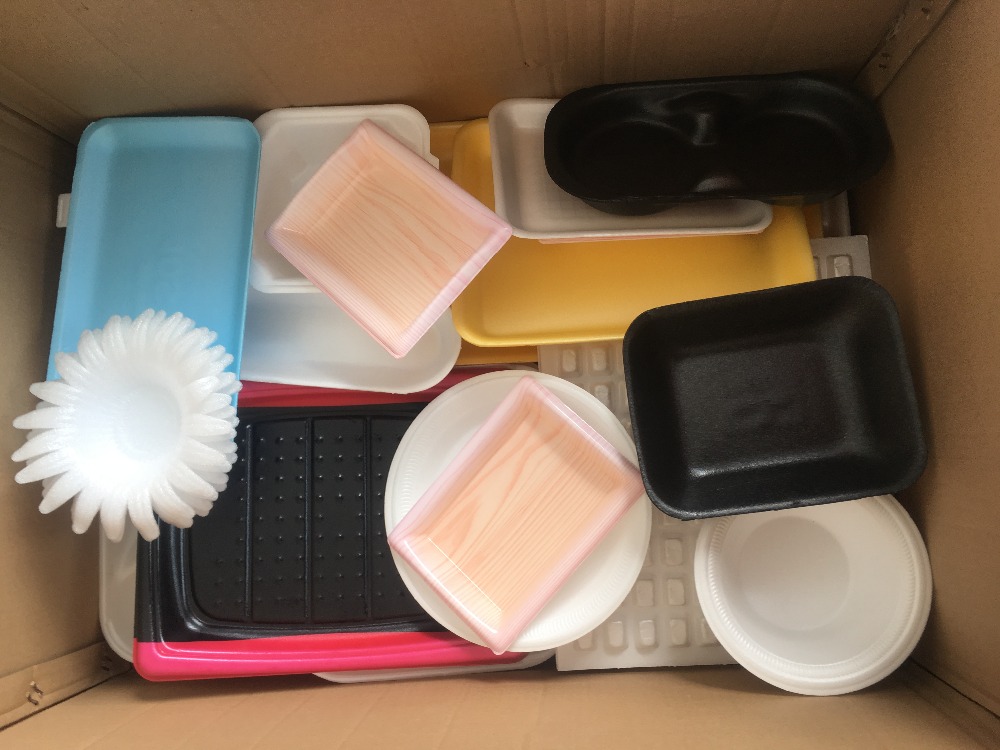

Foam plate making machine designed by our company is all-powerful. The main way is vacuum forming as well as press forming and synthetical forming. It can be used for forming kinds of plastic sheet. This machine adopt PLC control, it has group possesses reliable stability, large forming area, high production and automatic degree. The machine can mainly forming the PSP material which is used to produce food container, tray, bowl, cup etc. Forming, cutting, stacking are done in the same machine, saving labor, improving efficient, lowing labor intensity and reducing production cost. Production process is to put foam sheet into forming machine, and product and wastage will come out from the rear part.
More Details of PS foam plate machine
Main technical parameters of thermocol plate making machine
| parameter | unit | HY-1100 | HY-1250 | HY-1400 |
| Forming area | mm2 | 1100*1100 | 1100*1250 | 1100*1400 |
| cutting height | mm | 160 | ||
| production efficiency | die/s | 3-4 | ||
| installation dimensionin | m | 19*6*3 | 21*6*3 | 24*6*3 |
| installation power | kw | 150 | 160 | 180 |
| power supply | 3phase 380v 50Hz 3phase 220v 60Hz | |||
Demands of public works
Cooling water: 1 t/h
Production efficiency: 3-6 s/Die
Installed power (approx):200KW
Total weight (approx):18T
Mounting size: 24m×6m×3m
Compressed air: 0.4~0.7 m3/min,0.7Mpa
Voltage: 380V frequency: 50 HZ
apllication of Ps Foam Food Container Production Line
Export Standard Packaging of Ps Foam Food Plate Making Machine
Relying on years of technical force, the company has been sustainably developed and accumulated precious experience. Currently, it has established a business model of coordinated processes such as independent research & development, processing and production, and after-sales service.
