Styrofoam tray / box / bowl / container making machine1
3 year ago
Styrofoam tray / box / bowl / container making machine
Foam Food Plate Machine-----production line photo:
Foam Dish Machine ---- include 3 parts

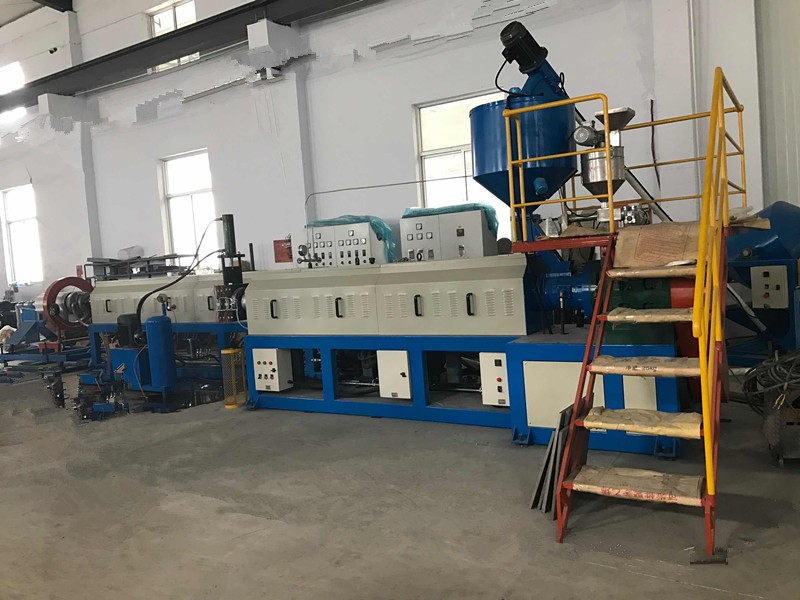

1.Styrofoam tray/box/bowl/container making machine ----ps foam sheet extruder
PS foam sheet extruder adopts Gentian type double-stage series high foam technology. The raw material is general polystyrene granule. In the extruding process, vesicant is injected at high pressure. After extruding, foaming cooling, shaping and hauling off, it is winding to finished PS foam sheet roll.
Technical parameter
| Paremeter | unit | HY-75-90 | HY-105/120 |
| Capacity | kg/h | 80-100 | |
| Sheet thickness | mm | 1-4 | |
| Sheet width |
mm |
640-1080 | |
| Foaming rate | 10-22 | ||
| Cooling method | wind &water cooling | ||
| Cutting method | single | ||
| Butane gas pressure | Mpa | 0.9-1.2 | |
| Installation power | kw | 120 | 180 |
| Installation dimension | m | 24*6*3 | 30*6*3 |
| Power supply | 3phase 380V50HZ,3Phase 220V60HZ | ||

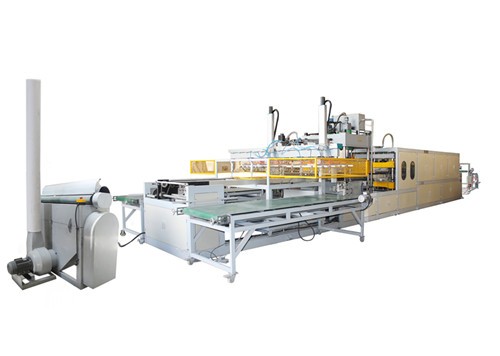

2.Styrofoam tray/box/bowl/container making machine
Foam Food Tray Machine integrates forming and cutting ,robot arm grab at the same time, also the foam products could come out automatically.It is vacuum forming as well as press forming and sythetically forming.It can be used for processing all kinds of plastic sheet,It adopts PLC controller and touch screen to control the working programmer.It is easy to operate and features high degree of automation.
Technical Parameters
|
Parameters |
Unit |
HY-1100X2 |
|
Forming area |
mm |
1100x1100 |
|
Cutting height |
mm |
160 |
|
Production efficiency |
S/Die |
3-6 |
|
Installed dimension |
m |
19X6X3 |
|
Installation power |
Kw |
160 |
|
Power supply |
3 phase 380V 50HZ ,3 phase 220V 60HZ |
|

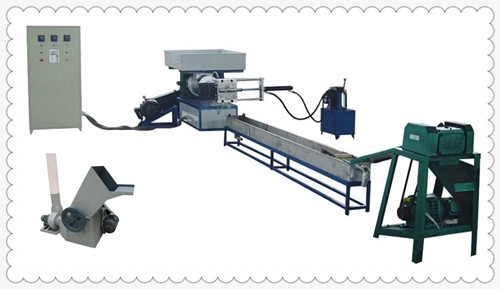

3.Foam Food Plate Machine ----Recycling system
Recycling machine is mainly used to recycle the PS foam polystyrene products. It is the ideal equipment to recycle the waste materials. This equipment features compact structure and easy operation,The scrap pices can be directly used to make granualtion without comminuting, At present,it is the ideal energy-saving equipment to let the material circulation and reduce the waste.
Technical Parameters
| Parameter | HY-125 |
| Screw diameter | ∅125mm |
| Installation power | 30kw |
| Dimension | 8*3*2 |
| Weight | 1.5t |
| Power supply | 3phase380v50HZ 3phase220v60HZ |
Ps Foam Food Container Production Line----- transport process:
1. Packaging: standard packing for export
2. Shipping: from Qingdao port
