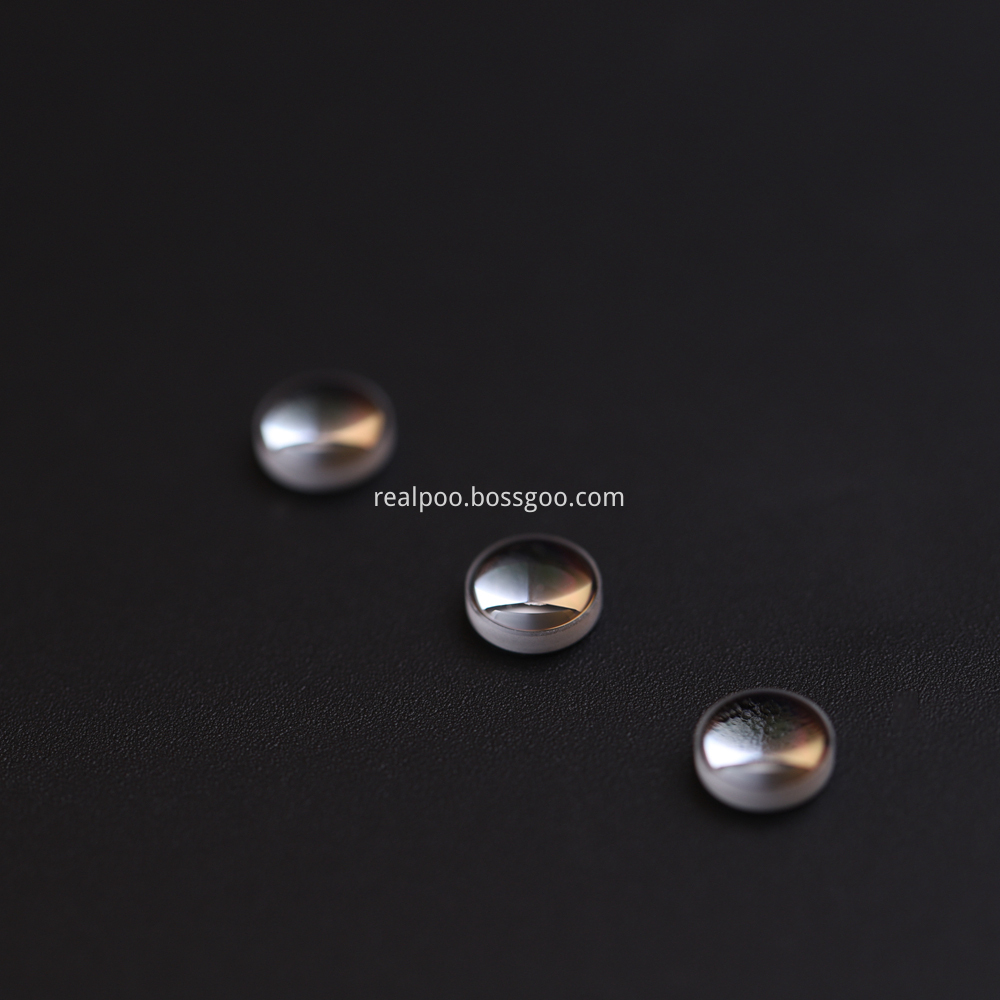

D10FL19 Aspherical lens

Realpoo Optics offer high quality molded glass aspheric lens. And we can offer good price and fast shipping.

Product Name: Aspheric Lens

Diameter: 6mm

Focal Length: 10mm

Center Thickness: 2.25mm

Numerical Aperture NA: 0.28

Clear Aperture CA: 5.2

Substrate: D-ZK3

Bevel: Protective bevel as needed

Coating: AR coating 400-700nm

An aspheric lens or asphere is a lens whose surface profiles are not portions of a sphere or cylinder. In photography, a lens assembly that includes an aspheric element is often called an aspherical lens.

The asphere's more complex surface profile can reduce or eliminate spherical aberration and also reduce other optical aberrations such as astigmatism, compared to a simple lens. A single aspheric lens can often replace a much more complex multi-lens system. The resulting device is smaller and lighter, and sometimes cheaper than the multi-lens design. Aspheric elements are used in the design of multi-element wide-angle and fast normal lenses to reduce aberrations. They are also used in combination with reflective elements (catadioptric systems) such as the aspherical Schmidt corrector plate used in the Schmidt cameras and the Schmidt–Cassegrain telescopes. Small molded aspheres are often used for collimating diode lasers.

Realpoo Optics is a professional manufacturer of optical glass lenses, such as Spherical Lens, Ball Lens, Optical Windows, Fresnel Lens, Diffraction Grating etc. The optics can be offered with coating or without coating. Welcome to send your inquiry.
