Product details

Product Overview

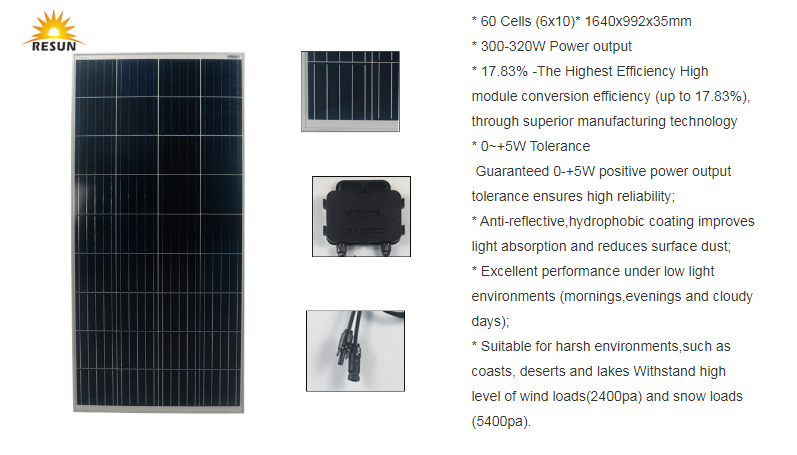

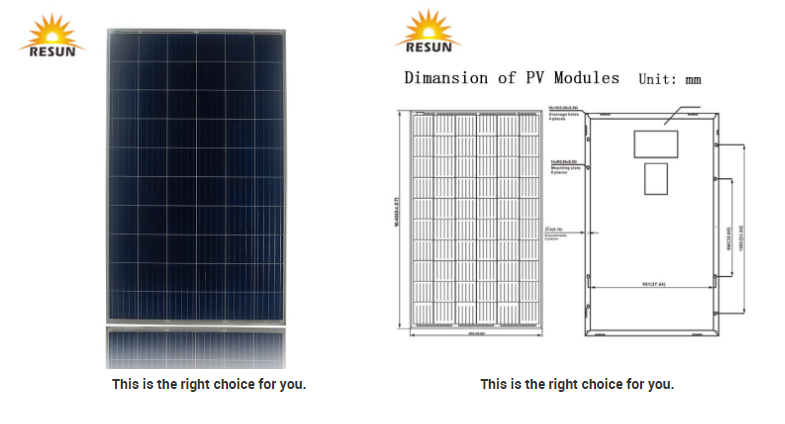

RS6C-P

RS6C-P is a robust solar panel with 60 solar cells. These modules can be used for on-grid solar applications.Our meticulous design and production techniques ensure a high-yield,long-term performance for every module produced.Our rigorous quality control and in-house testing facilities guarantee Resun Solar’s modules meet the highest quality standards possible. Poly Solar Panel is one kind of Solar Panels and also used for Solar Systems

Product Details

Dc0zk Ya8 Qps Ojd 4 8

J Clnz Ed Hw Swn3 Mle7

Specification

ELECTRICAL DATA(NOCT)

STC: Irradiance 1000% W/m² , Cell Temperature 25°C,Air Mass AM 1.5 according to EN 60904-3

Rated Power in Watts-Pmax(wp)	260W	265W	270W	275W	280W	285W	290W
Open Circuit Voltage-Voc(V)	39.85V	37.8V	37.9V	38.1V	38.2V	38.3V	38.4V
Short Circuit Current-Isc(A)	8.95A	9.01A	9.76A	9.32A	9.40A	9.49A	9.59A
Maximum Power Voltage-Vmp(V)	30.3V	30.3V	30.7V	31.1V	31.4V	31.6V	31.8V
Maximum power current-Imp(A)	8.58A	8.69A	8.79A	8.84A	8.92A	9.02A	9.12A
Module Efficiency(%)	16.01%	16.32%	16.60%	16.80%	17.10%	17.40%	17.83%

ELECTRICAL DATA(NOCT)

NOCT:Irradiance at 800 W/m²,Ambient Temperature 20°C,Wind Speed 1 m/s.

Maximum Power-Pmax (Wp)	192W	195W	198W	204W	208W	211W	215W
Open Circuit Voltage-Voc(V)	34.9V	35.1V	35.4V	35.3V	35.4V	35.5V	35.6V
Short Circuit Current-Isc(A)	7.20A	7.24A	7.29A	7.52A	7.59A	7.66A	7.74A
Maximum Power Voltage-Vmp(V)	28.1V	28.3V	28.5V	28.8V	29.0V	29.2V	29.4V
Maximum power current-Imp(A)	6.82A	6.89A	6.95A	7.09A	7.15A	7.23A	7.31A

MECHANICAL DATA

Solar Cells	Poly 156x156mm, 5 Bus bars
Cell configuration	60 cells(6x10)
Module dimensions	1640x992x35mm
Weight	19KGS
Front Cover	3.2mm Tempered Glass
Frame Material	Anodized Aluminum Alloy
J-Box	IP67
Cable	4mm2(IEC)/12AWG(UL).900mm
Connectors	MC4 or MC4 Comparable
Standard Packaging	30pcs/pallet

TEMPERATURE & MAXIMUM RATINGS

Nominal Operating Cell Temperature (NOCT)	45°C±2°C
Temperature Coefficient of Voc	-0.32%/°C
Temperature Coefficient of lsc	0.05%/°C
Temperature Cofficient of Pmax	-0.39%/°C
Operational Temperature	-40~+85°C
Maximum System Voltage	1500V(IEC)600V(UL)
Max Series Fuse Rating	15A
Limiting Reverse Current	15A

PACKAGING CONFIGURATION

	20GP	40HQ
Number of modules per container	360pcs	924pcs
Package	30pcs/pallet	30pcs/pallet, 2pcs/carton
Package Number	12pallets	28pallets+42cartons

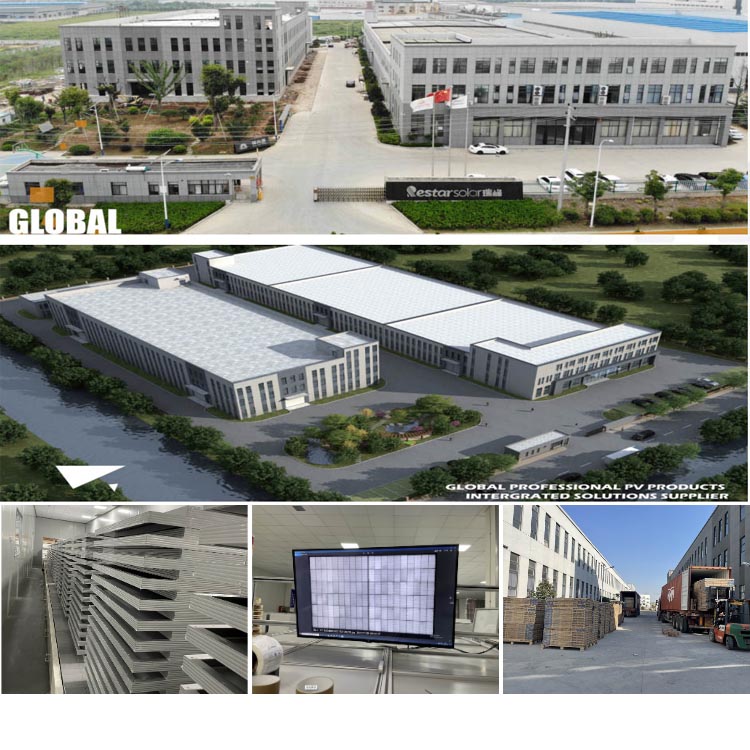

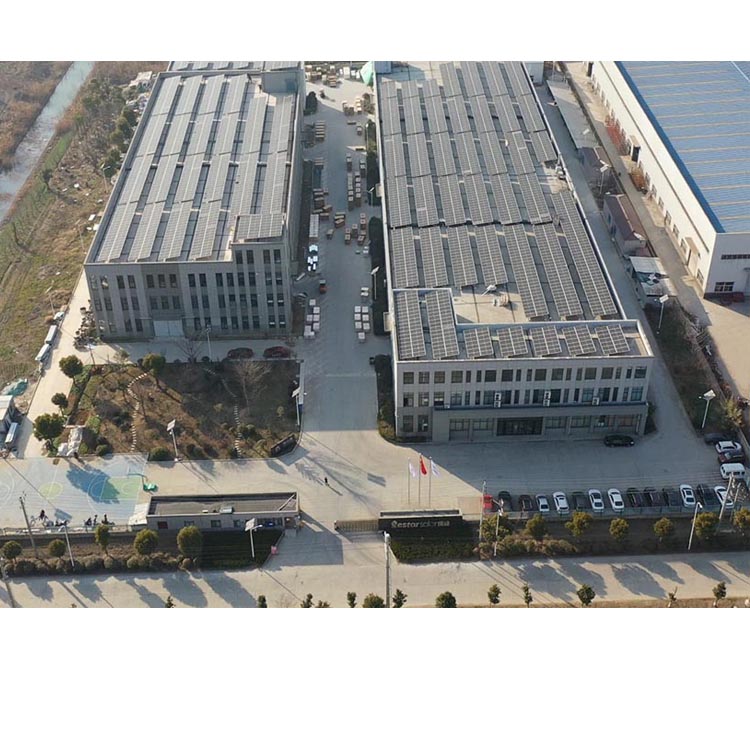

Company Profile

Resun Solar Energy Co., Ltd was founded in 2007,engaged in developing and manufacturing PV solar products with capcity 1GW/Year. The series of the solar energy products are of high quality, easy installation, long life time, free maintenance, low operation cost and environmental friendless.

Certifications

Sales and Service Network

Headquartered in China, Resun 's sales network covers more than 20 Countries, providing customers with instant after sales service and an efficient supply-chain, our clients can be found throughout the world, such as North America, Europe, Oceania, Eastern Europe, East Asia, Middle Easter and Africa etc.

Exhibition

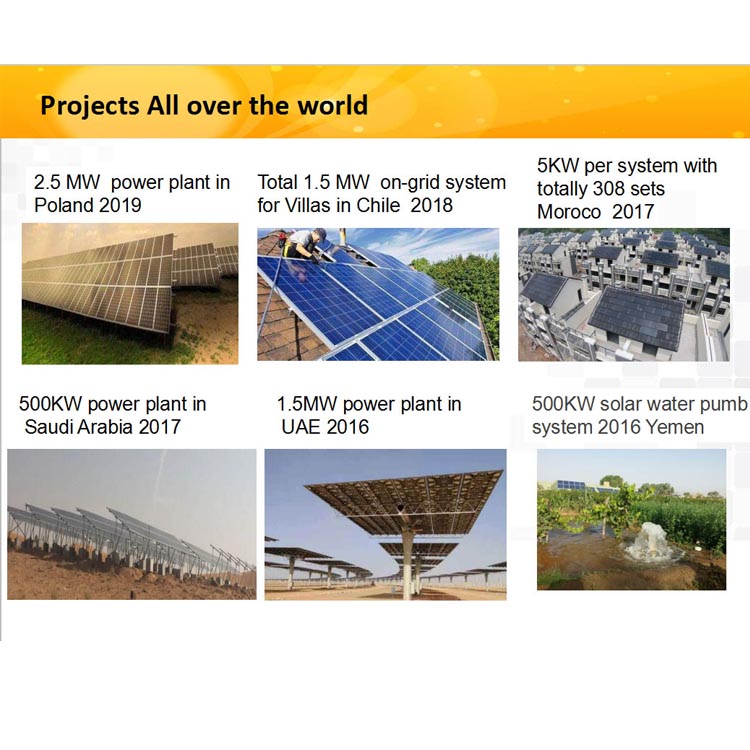

Successful Projects

Contact
