Metal Circular Saw Machine
5 year ago

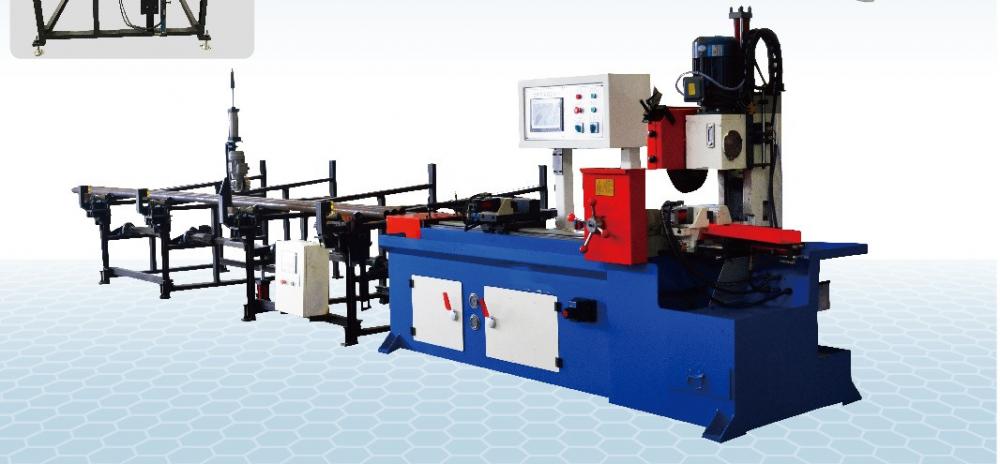

Saw Blade Metal Automatic Pipe Cutting Machine
Saw Blade Metal Automatic Pipe Cutting Machine is a kind of automatic feeding high-speed pipe cutting machine of our company's series circular saw machines.Tube Pipe Cutting Machine servo motor with ball screw feeding, feeding accuracy is very high, can reach 0.1 mm.The feed and clamping pressure can be controlled separately, especially suitable for thin-walled tube cutting to minimize the deformation caused by clamping on the basis of ensuring no slipping.Steel Pipe Cutting Machine is suitable for sawing common steel (low carbon steel), stainless steel and other metal pipes with various cross-section shapes.
Technical Parameters
Spindle motor power
4kw (double speed)
Applied saw
Φ 285-450mm (Φ 500mm saw blade can be customized)
Cooling water pump power
90w
Maximum opening of jaw
160mm
Single feeding length
1000mm / 1500mm / time,Multiple feeding
Cutting accuracy
±0.1mm
Maximum cutting capacity
Circular tube
Φ 120mm (customized for Φ 160mm)
Tetragonal tube
100×100mm
Rectangular tube
120×80mm
Angle iron
100×100mm
Round steel
Φ30mm
