SD FMND WHC 63 MDC 25 D1.0 B3.5 L24

Duplex Inline Filter (SDFMND)

---with filter element in accordance with DIN 24550

---up to 400 l/min

---up to 210bar

---material: GGG/steel

1.    Technical specification

1.1  Filter housing

Construction

Duplex inline filters consist of a filter head with a built-in change-over valve and screw-in filter bowls.

Standard equipment:

*   Without bypass valve

*   Connection for a clogging indicator

*   Oil drain plug

1.2  Filter elements

Max. Allowable D.P.:

BN/HC：20bar；  BH/HC: 210bar

2.    Description

Mounting      inline filter

Temperature range     -10 °C to +100 °C

Pressure setting of the clogging indicator       5bar-10%(others on request)

Bypass cracking pressure                    7bar+10%(others on request)

Seals         NBR (=Perbunan)

3. Notes

* Filter housings must be earthed.

* When using electrical clogging indicators, the electrical power supply to the system must be switched off before removing the clogging indicator connector.

* Filters with switching valve are designed to have a permissible leakage depending on the operating medium.

4. Application

It can be used for mineral oils, lubrication oils, non-flam fluids, synthetic and rapidly biodegradable fluids.

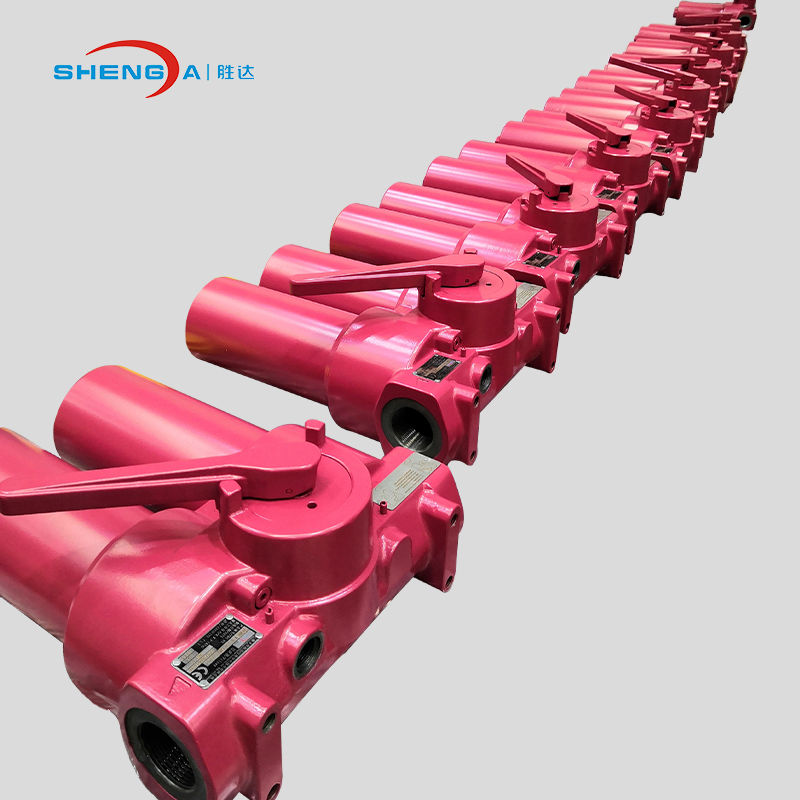

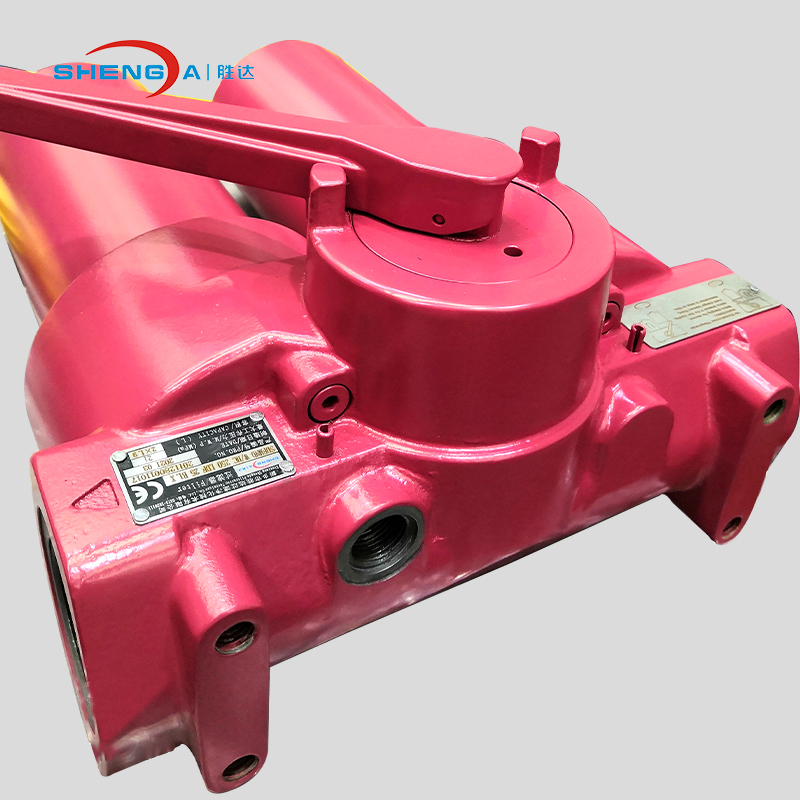

5. Photos
