Easy operation and cleaning chinese herbal medicine powder grinding machine1
3 year ago
Working Method

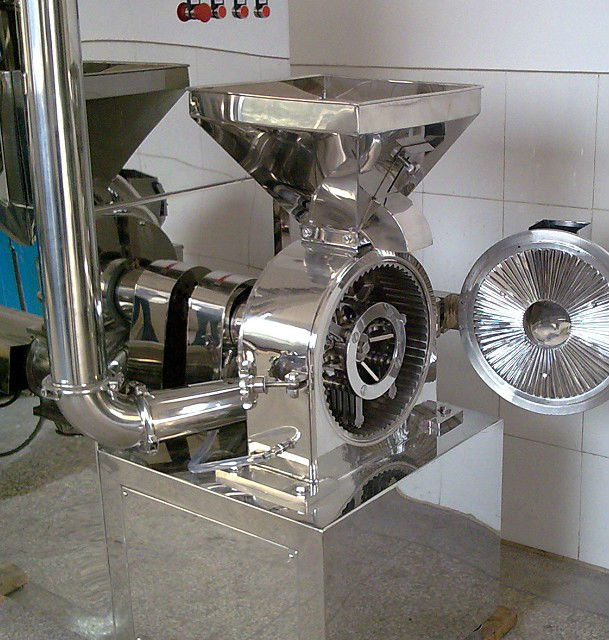

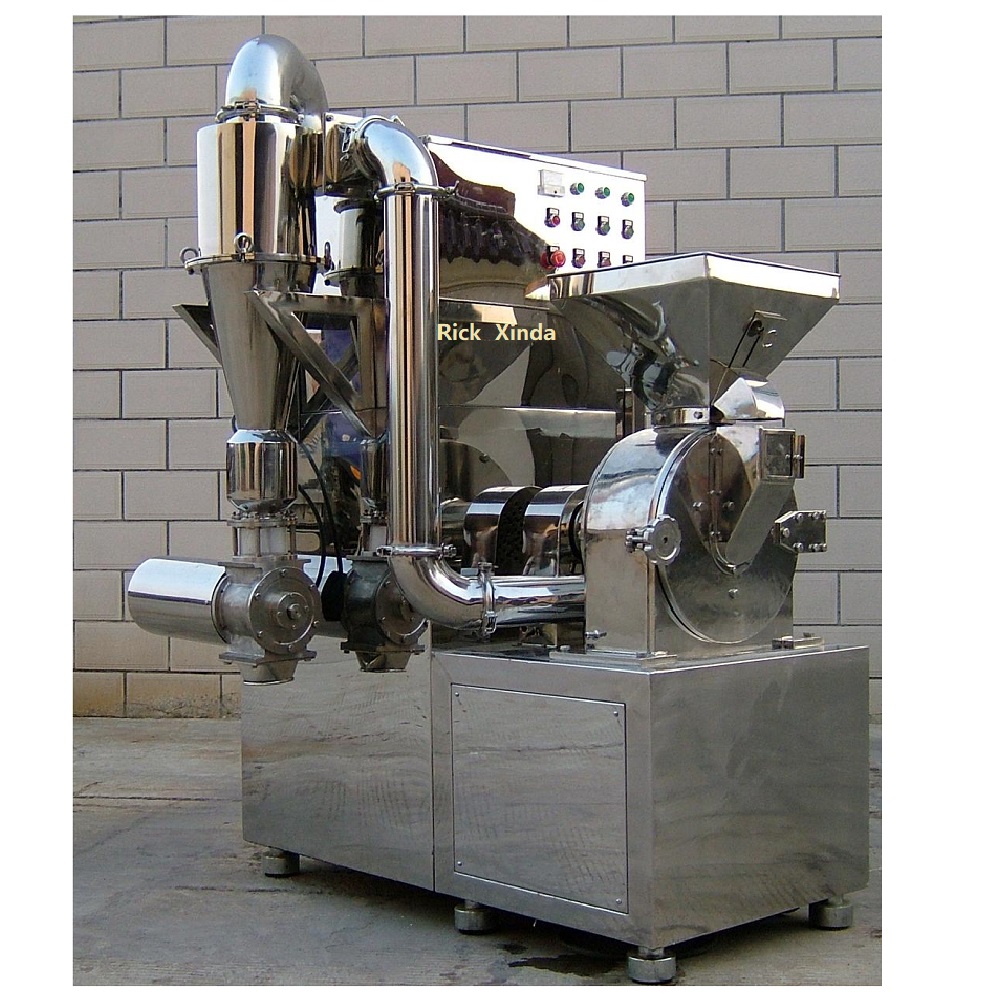

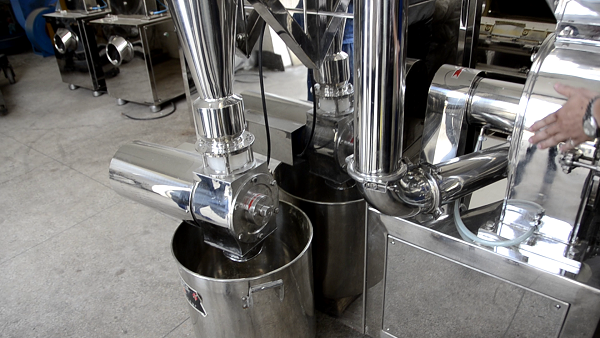

The machine is composed of feeder, grading wheel, pulverizing blades, gears, pulverizing motor, discharging gate, fans, collection box, dust collection box and etc. Any raw material, being feed into the grind chamber through the upper feeder, is pulverized by high-speed running blades. The fineness of the finished products is regulated via the distance adjustment of grading wheel and grading plate. The high-speed running fans will lead those pulverized material from grinding chamber to discharge gate via negative pressure while whose unpulverized remained in the chamber. The dust from grinding is filtered and recycled via the cloth bag or filter of the dust absorption box. The whole machine, designed according to GMP standard, is made of stainless steel, with the features of easy structure, convenient operation and cleaning, low noise and high capacity, avoiding dust flying in production.
Technical Data
MODEL
ZFJ-200
ZFJ-300
ZFJ-
400
Capacity
(kg/h)
10-150
20-300
50-500
Size
of input granules （mm）
≤10
≤10
≤15
Fineness
of products (mesh)
80-300
80-300
80-300
Grinding
power （kw）
5.5
7.5
11
Dust
absorption power (kw)
1.5
2.2
3
Rotary Valve(kw)
0.75
0.75
0.75
Weight
(kg)
460
550
750
Overall
size (L×W×H) （mm）
1320×920×1900
1400×1050×2050
1600×1150×2200
\
MODEL
ZFJ-200
ZFJ-300
ZFJ- 400
Capacity (kg/h)
10-150
20-300
50-500
Size of input granules （mm）
≤10
≤10
≤15
Fineness of products (mesh)
80-300
80-300
80-300
Grinding power （kw）
5.5
7.5
11
Dust absorption power (kw)
1.5
2.2
3
Rotary Valve(kw)
0.75
0.75
0.75
Weight (kg)
460
550
750
Overall size (L×W×H) （mm）
1320×920×1900
1400×1050×2050
1600×1150×2200
\
