Innovative Fireproof Aerogel Thermal Insulation Fe

Product Features

1. Exceptional Thermal Insulation:

   • Thermal Conductivity: 0.016–0.022 W/m·K, which is 1/5 to 1/3 of traditional insulation materials.
   • Stable Performance: Minimal change in thermal conductivity with temperature variations.

2. Superior Durability:

   • Density: 200±10 kg/m³.
   • Thickness Options: Available in 3 mm, 6 mm, and 10 mm.
   • Long Life Span: Designed for a service life of up to 20 years.

3. Wide Temperature Range:

   • Operational Range: -100℃ to 500℃.
   • Flame Resistance: Flame-proof, meeting Class A1 fire resistance standards.

4. Hydrophobic Properties:

   • Surface Chemistry: Super-hydrophobic, preventing moisture absorption and corrosion under insulation (CUI).

5. Energy Saving and Emission Reduction:

   • Efficiency: Excellent at reducing surface heat loss, contributing to significant energy savings and reduced emissions.

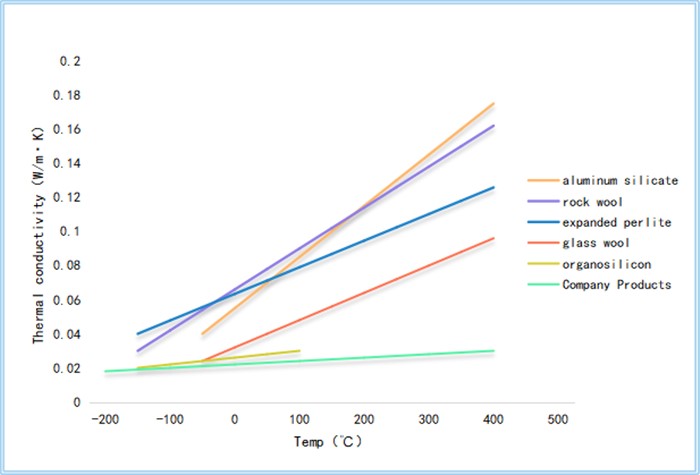

Thermal Conductivity Comparison

1.Thermal conductivity 1/5-1/3 of traditionalinsulation materials

2.Not much change in thermal conductivity with increasing temperature

Product Specification

• Industrial Piping and Equipment:Ideal for insulation of different shapes of pipelines and equipment.Easy to construct and adapt to various configurations.
• Oil Refining and Chemical Plants:Proven effectiveness in medium-pressure steam pipe insulation, leading to substantial cost savings in steam usage.
• LNG and Cryogenic Systems:Perfect for LNG pipelines, storage tanks, and long-distance pipeline networks due to its adaptability to low-temperature media and volatile substances.
• Marine and Storage Solutions:Excellent for ship storage tanks and other maritime insulation applications, providing robust protection against extreme temperatures and environmental conditions.
